Handles requests on a single connection. More...

#include <UIPMC_Connection_Handler.h>

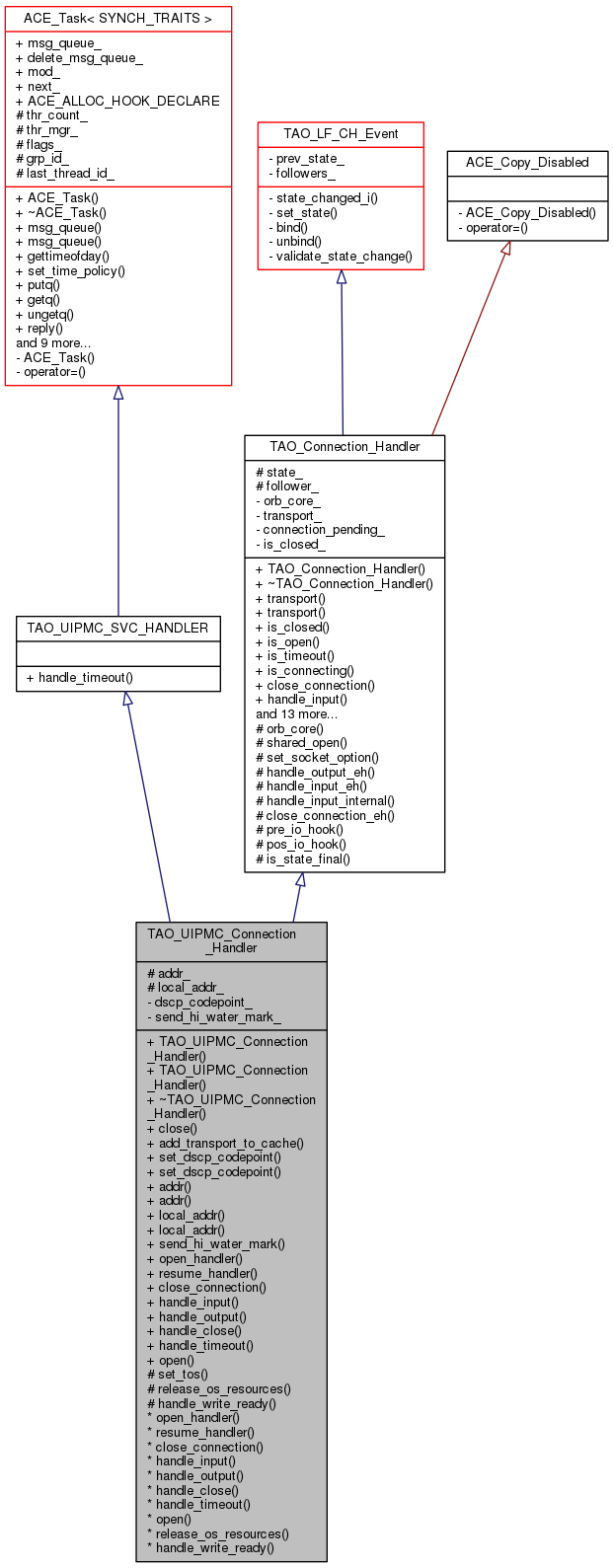

Inheritance diagram for TAO_UIPMC_Connection_Handler:

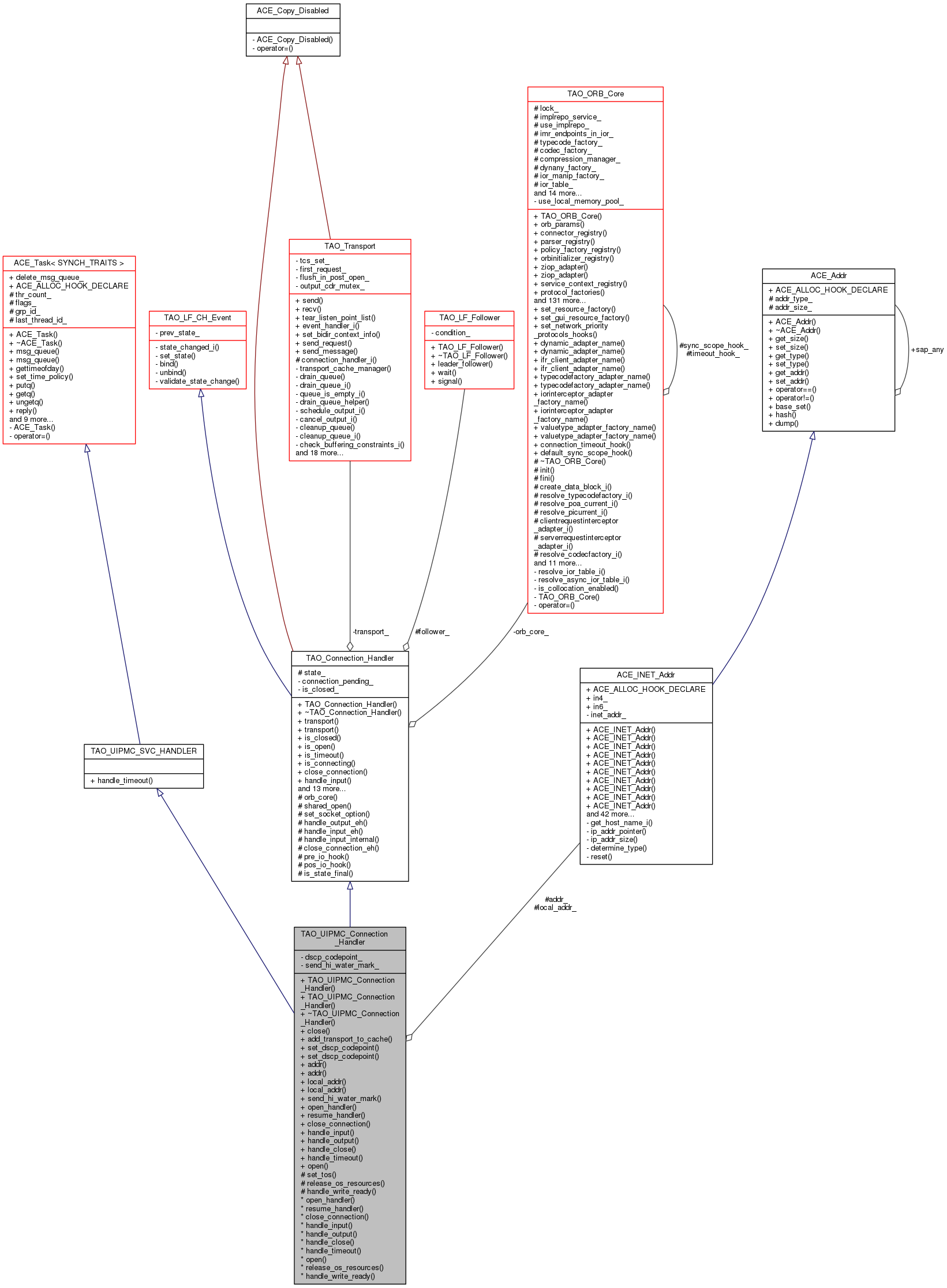

Collaboration diagram for TAO_UIPMC_Connection_Handler:

Public Member Functions
	TAO_UIPMC_Connection_Handler (ACE_Thread_Manager *t=0)

	TAO_UIPMC_Connection_Handler (TAO_ORB_Core *orb_core)

	~TAO_UIPMC_Connection_Handler (void)
	Destructor. More...

int	close (u_long=0)

int	add_transport_to_cache (void)
	Add ourselves to Cache. More...

int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets. More...

int	set_dscp_codepoint (CORBA::Long dscp_codepoint)

const ACE_INET_Addr &	addr (void) const

void	addr (const ACE_INET_Addr &addr)

const ACE_INET_Addr &	local_addr (void) const

void	local_addr (const ACE_INET_Addr &addr)

u_long	send_hi_water_mark (void) const

Connection Handler overloads
virtual int	open_handler (void *v)

Event Handler overloads
virtual int	resume_handler (void)

virtual int	close_connection (void)

virtual int	handle_input (ACE_HANDLE)

virtual int	handle_output (ACE_HANDLE)

virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	open (void *)

Public Member Functions inherited from TAO_Connection_Handler
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)

virtual	~TAO_Connection_Handler (void)

TAO_Transport *	transport (void)

void	transport (TAO_Transport *transport)

bool	is_closed (void) const

bool	is_open (void) const

bool	is_timeout (void) const

bool	is_connecting (void) const

int	svc_i (void)

virtual int	close_handler (u_long flags=0)

void	connection_pending (void)

void	cancel_pending_connection (void)

	TAO_LF_CH_Event (void)

virtual	~TAO_LF_CH_Event (void)

int	successful (void) const

int	error_detected (void) const

Protected Member Functions
int	set_tos (int tos)

TAO_Connection Handler overloads
virtual int	release_os_resources (void)

virtual int	handle_write_ready (const ACE_Time_Value *timeout)

Protected Member Functions inherited from TAO_Connection_Handler
TAO_ORB_Core *	orb_core (void)

int	shared_open (void)

int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)

int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)

int	close_connection_eh (ACE_Event_Handler *eh)

virtual void	pre_io_hook (int &return_value)

virtual void	pos_io_hook (int &return_value)

virtual int	is_state_final (void)

Protected Attributes
ACE_INET_Addr	addr_

ACE_INET_Addr	local_addr_

Protected Attributes inherited from TAO_Connection_Handler
int	state_

TAO_LF_Follower *	follower_

Private Attributes
int	dscp_codepoint_
	Stores the type of service value. More...

u_long	send_hi_water_mark_

Additional Inherited Members
Public Attributes inherited from ACE_Task< SYNCH_TRAITS >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_

bool	delete_msg_queue_

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_

	ACE_ALLOC_HOOK_DECLARE

Detailed Description

Handles requests on a single connection.

Since MIOP is asymmetric then this Connection handler is for only use in the Connector.

Constructor & Destructor Documentation

TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler ( ACE_Thread_Manager * t = 0 )

TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler ( TAO_ORB_Core * orb_core )

Constructor. arg parameter is used by the Acceptor to pass the protocol configuration properties for this connection.

TAO_UIPMC_Connection_Handler::~TAO_UIPMC_Connection_Handler ( void )

Destructor.

Member Function Documentation

int TAO_UIPMC_Connection_Handler::add_transport_to_cache ( void )

Add ourselves to Cache.

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::addr ( void ) const

void TAO_UIPMC_Connection_Handler::addr ( const ACE_INET_Addr & addr )

int TAO_UIPMC_Connection_Handler::close ( u_long flags = 0 )

Close called by the Acceptor or Connector when connection establishment fails.

int TAO_UIPMC_Connection_Handler::close_connection ( void )

virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)

virtual

int TAO_UIPMC_Connection_Handler::handle_input ( ACE_HANDLE h )

virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::handle_output ( ACE_HANDLE handle )

virtual

int TAO_UIPMC_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_UIPMC_Connection_Handler::handle_write_ready ( const ACE_Time_Value * timeout )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::local_addr ( void ) const

void TAO_UIPMC_Connection_Handler::local_addr ( const ACE_INET_Addr & addr )

int TAO_UIPMC_Connection_Handler::open ( void * )

virtual

int TAO_UIPMC_Connection_Handler::open_handler ( void * v )

virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::release_os_resources ( void )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::resume_handler ( void )

virtual

u_long TAO_UIPMC_Connection_Handler::send_hi_water_mark ( void ) const

int TAO_UIPMC_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean set_network_priority )

virtual

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::set_dscp_codepoint ( CORBA::Long dscp_codepoint )

virtual

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::set_tos ( int tos )

protected

Member Data Documentation

ACE_INET_Addr TAO_UIPMC_Connection_Handler::addr_

protected

int TAO_UIPMC_Connection_Handler::dscp_codepoint_

private

Stores the type of service value.

ACE_INET_Addr TAO_UIPMC_Connection_Handler::local_addr_

protected

u_long TAO_UIPMC_Connection_Handler::send_hi_water_mark_

private

How much data can be sent without delays. It defaults to the size of the socket buffer.

The documentation for this class was generated from the following files:
