TAO_MIOP_Resource_Factory Class Reference

TAO's MIOP resource factory. More...

#include <miop_resource.h>

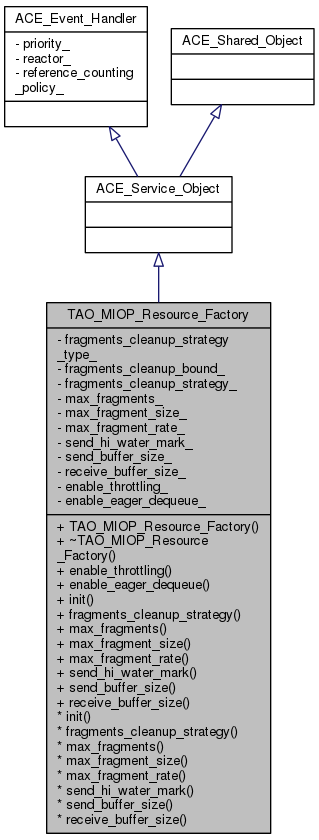

Inheritance diagram for TAO_MIOP_Resource_Factory:

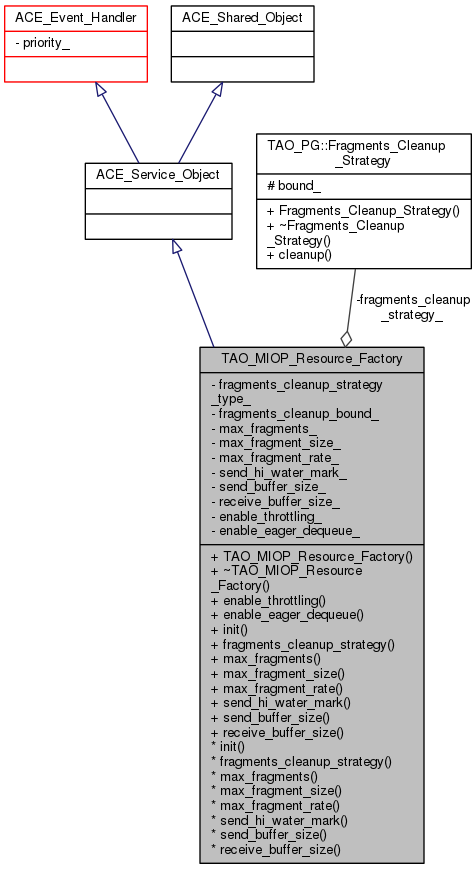

Collaboration diagram for TAO_MIOP_Resource_Factory:

Public Member Functions
	TAO_MIOP_Resource_Factory (void)
	Constructor. More...
virtual	~TAO_MIOP_Resource_Factory (void)
	Destructor. More...
bool	enable_throttling (void) const
	Get the client-side transmission rate throttling enable flag. More...
bool	enable_eager_dequeue (void) const
	Get the server-side eager complete message dequeuing enable flag. More...
Service Configurator Hooks
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook. More...
Member Accessors
TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy (void) const
	Get Maximum number of fragments allowed. More...
u_long	max_fragments (void) const
	Get Maximum number of fragments allowed. More...
u_long	max_fragment_size (void) const
	Get MTU value (roughly). More...
u_long	max_fragment_rate (void) const
	Get time required for transfering one maximum sized fragment. More...
u_long	send_hi_water_mark (void) const
	Get number of bytes that can be sent without delay. More...
u_long	send_buffer_size (void) const
	Get the desired socket transmit buffer's size in bytes (Zero is unspecified). More...
u_long	receive_buffer_size (void) const
	Get the desired socket receive buffer's size in bytes (Zero is unspecified). More...

Private Types
enum	Fragments_Cleanup_Strategy_Type { TAO_MIOP_CLEANUP_TIME_BOUND, TAO_MIOP_CLEANUP_NUMBER_BOUND, TAO_MIOP_CLEANUP_MEMORY_BOUND }

Private Attributes
Fragments_Cleanup_Strategy_Type	fragments_cleanup_strategy_type_
int	fragments_cleanup_bound_
TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy_
u_long	max_fragments_
	Maximum number of fragments. More...
u_long	max_fragment_size_
	Maximum Size of a single fragment. More...
u_long	max_fragment_rate_
	Time required for transfering one maximum sized fragment. More...
u_long	send_hi_water_mark_
	Number of bytes that can be sent without delay. More...
u_long	send_buffer_size_
	Get the desired socket send buffer's size in bytes. More...
u_long	receive_buffer_size_
	Get the desired socket receive buffer's size in bytes. More...
bool	enable_throttling_
	Get the client-side transmission rate throttling enable flag. More...
bool	enable_eager_dequeue_
	Get the server-side eager complete message dequeuing enable flag. More...

Detailed Description

TAO's MIOP resource factory.

Using a <{resource source specifier}> as a discriminator, the factory can return resource instances which are, e.g., global, stored in thread-specific storage, stored in shared memory, etc.

Member Enumeration Documentation

enum TAO_MIOP_Resource_Factory::Fragments_Cleanup_Strategy_Type

private

Enumerator
TAO_MIOP_CLEANUP_TIME_BOUND
TAO_MIOP_CLEANUP_NUMBER_BOUND
TAO_MIOP_CLEANUP_MEMORY_BOUND

Constructor & Destructor Documentation

TAO_MIOP_Resource_Factory::TAO_MIOP_Resource_Factory

(

void

)

Constructor.

TAO_MIOP_Resource_Factory::~TAO_MIOP_Resource_Factory ( void  )

virtual

Destructor.

Member Function Documentation

bool TAO_MIOP_Resource_Factory::enable_eager_dequeue

(

void

)

const

Get the server-side eager complete message dequeuing enable flag.

bool TAO_MIOP_Resource_Factory::enable_throttling

(

void

)

const

Get the client-side transmission rate throttling enable flag.

TAO_PG::Fragments_Cleanup_Strategy * TAO_MIOP_Resource_Factory::fragments_cleanup_strategy

(

void

)

const

Get Maximum number of fragments allowed.

int TAO_MIOP_Resource_Factory::init ( int  argc, ACE_TCHAR *  argv[]  )

virtual

Dynamic linking hook.

u_long TAO_MIOP_Resource_Factory::max_fragment_rate

(

void

)

const

Get time required for transfering one maximum sized fragment.

u_long TAO_MIOP_Resource_Factory::max_fragment_size

(

void

)

const

Get MTU value (roughly).

u_long TAO_MIOP_Resource_Factory::max_fragments

(

void

)

const

Get Maximum number of fragments allowed.

u_long TAO_MIOP_Resource_Factory::receive_buffer_size

(

void

)

const

Get the desired socket receive buffer's size in bytes (Zero is unspecified).

u_long TAO_MIOP_Resource_Factory::send_buffer_size

(

void

)

const

Get the desired socket transmit buffer's size in bytes (Zero is unspecified).

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark

(

void

)

const

Get number of bytes that can be sent without delay.

Member Data Documentation

bool TAO_MIOP_Resource_Factory::enable_eager_dequeue_

private

Get the server-side eager complete message dequeuing enable flag.

bool TAO_MIOP_Resource_Factory::enable_throttling_

private

Get the client-side transmission rate throttling enable flag.

int TAO_MIOP_Resource_Factory::fragments_cleanup_bound_

private

TAO_PG::Fragments_Cleanup_Strategy* TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_

mutableprivate

Fragments_Cleanup_Strategy_Type TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_type_

private

u_long TAO_MIOP_Resource_Factory::max_fragment_rate_

private

Time required for transfering one maximum sized fragment.

u_long TAO_MIOP_Resource_Factory::max_fragment_size_

private

Maximum Size of a single fragment.

u_long TAO_MIOP_Resource_Factory::max_fragments_

private

Maximum number of fragments.

u_long TAO_MIOP_Resource_Factory::receive_buffer_size_

private

Get the desired socket receive buffer's size in bytes.

u_long TAO_MIOP_Resource_Factory::send_buffer_size_

private

Get the desired socket send buffer's size in bytes.

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark_

private

Number of bytes that can be sent without delay.

---

The documentation for this class was generated from the following files:

• miop_resource.h
• miop_resource.cpp
