This class ensures that policies submitted to Lookup make sense, have the correct value types, and don't exceed the maximums set through the Admin Interface. More...

#include <Trader_Utils.h>

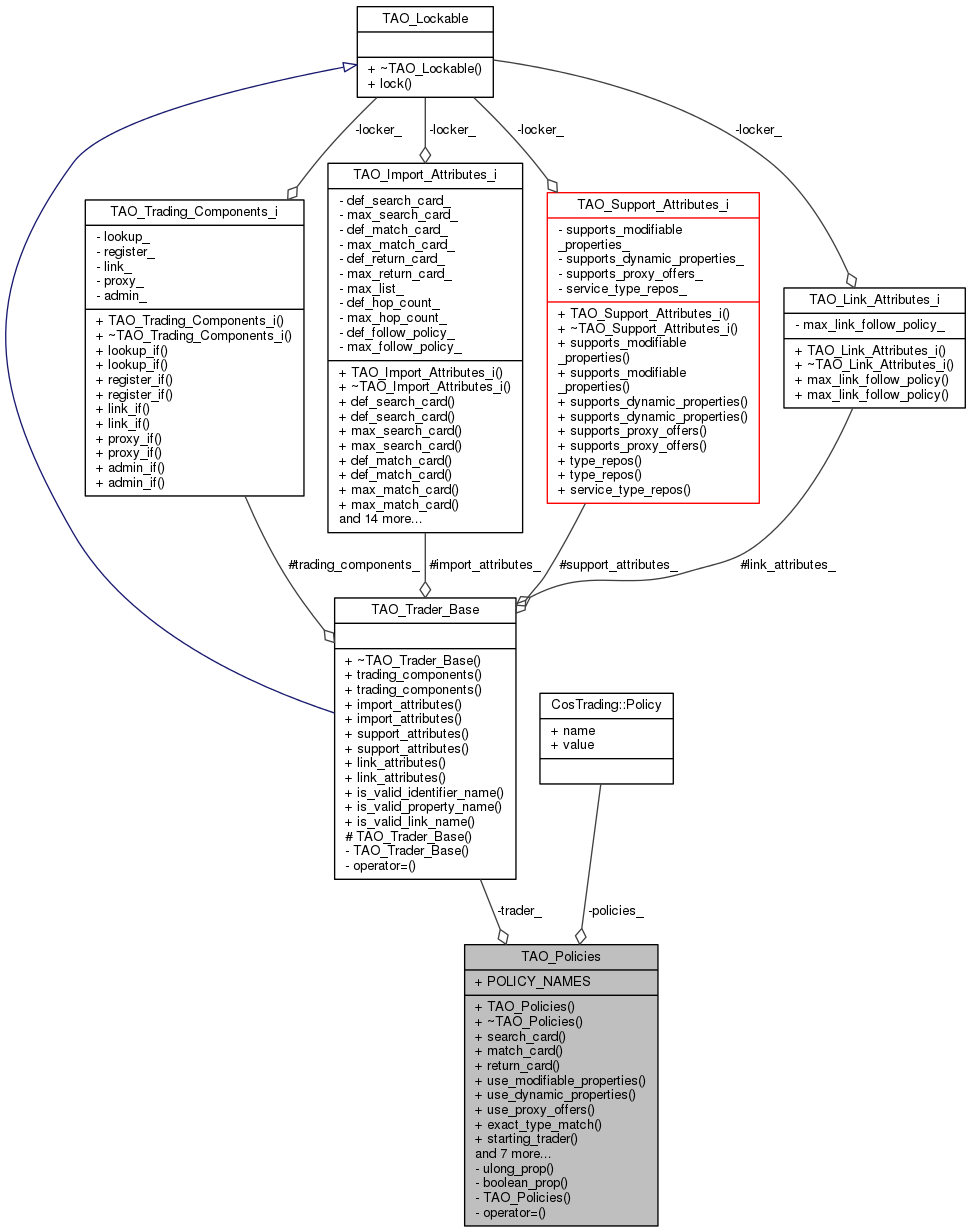

Collaboration diagram for TAO_Policies:

Public Types
enum	POLICY_TYPE { STARTING_TRADER, EXACT_TYPE_MATCH, HOP_COUNT, LINK_FOLLOW_RULE, MATCH_CARD, RETURN_CARD, SEARCH_CARD, USE_DYNAMIC_PROPERTIES, USE_MODIFIABLE_PROPERTIES, USE_PROXY_OFFERS, REQUEST_ID }

Public Member Functions
	TAO_Policies (TAO_Trader_Base &trader, const CosTrading::PolicySeq &policies)

	~TAO_Policies (void)

CORBA::ULong	search_card (void) const

CORBA::ULong	match_card (void) const

CORBA::ULong	return_card (void) const

CORBA::Boolean	use_modifiable_properties (void) const

CORBA::Boolean	use_dynamic_properties (void) const

CORBA::Boolean	use_proxy_offers (void) const

CORBA::Boolean	exact_type_match (void) const

CosTrading::TraderName *	starting_trader (void) const

CosTrading::FollowOption	link_follow_rule (void) const
	Determine the link follow policy for this query overall. More...

CosTrading::FollowOption	link_follow_rule (const CosTrading::Link::LinkInfo &link_info) const

CORBA::ULong	hop_count (void) const

CosTrading::Admin::OctetSeq *	request_id (void) const

void	copy_to_pass (CosTrading::PolicySeq &policy_seq, const CosTrading::Admin::OctetSeq &request_id) const
	Policies to forward to the next trader in a federated query. More...

void	copy_to_forward (CosTrading::PolicySeq &policy_seq, const CosTrading::TraderName &name) const
	Policies to forward to the next trader in a directed query. More...

void	copy_in_follow_option (CosTrading::PolicySeq &policy_seq, const CosTrading::Link::LinkInfo &link_info) const

Static Public Attributes
static const char *	POLICY_NAMES []

Private Member Functions
CORBA::ULong	ulong_prop (POLICY_TYPE pol) const
	Reconclile a ULong property with its default. More...

CORBA::Boolean	boolean_prop (POLICY_TYPE pol) const
	Reconcile a Boolean property with its debault. More...

	TAO_Policies (const TAO_Policies &)

TAO_Policies &	operator= (const TAO_Policies &)

Private Attributes
CosTrading::Policy *	policies_ [TAO_NUM_POLICIES]
	The policies indexable from the enumerated type. More...

TAO_Trader_Base &	trader_
	For the validating identifier names. More...

Detailed Description

This class ensures that policies submitted to Lookup make sense, have the correct value types, and don't exceed the maximums set through the Admin Interface.

TAO_Policies does an admirable job of reconciling differences between the default parameter settings of the Trader and the import and other policies set by the client. Unbeknownst to its client TAO_Policies hides this arbitration, and records whether the user policy was chosen, or the default. This information gets returned to the invoker of the query method.

Member Enumeration Documentation

enum TAO_Policies::POLICY_TYPE

This enum represents the relative order that properties are passed from one trader to another. Hence, as recommended by the spec, the starting_trader policies will be the first element in the polcy sequence if it's set for a query.

Enumerator
STARTING_TRADER
EXACT_TYPE_MATCH
HOP_COUNT
LINK_FOLLOW_RULE
MATCH_CARD
RETURN_CARD
SEARCH_CARD
USE_DYNAMIC_PROPERTIES
USE_MODIFIABLE_PROPERTIES
USE_PROXY_OFFERS
REQUEST_ID

Constructor & Destructor Documentation

TAO_Policies::TAO_Policies	(	TAO_Trader_Base &	trader,
		const CosTrading::PolicySeq &	policies
	)

TAO_Policies::~TAO_Policies ( void )

TAO_Policies::TAO_Policies ( const TAO_Policies & )

private

Member Function Documentation

CORBA::Boolean TAO_Policies::boolean_prop ( POLICY_TYPE pol ) const

private

Reconcile a Boolean property with its debault.

void TAO_Policies::copy_in_follow_option	(	CosTrading::PolicySeq &	policy_seq,
		const CosTrading::Link::LinkInfo &	link_info
	)		const

Determine the link follow policy to pass down the link with <link_name>. This method returns the link_follow_rule for a link whose name is <link_name> using the following formula: If the importer specified a link_follow_rule, policy pass on min(query.link_follow_rule, link.limiting_follow_rule, trader.max_follow_policy) else pass on min(link.def_pass_on_follow_rule, trader.max_follow_policy)

void TAO_Policies::copy_to_forward	(	CosTrading::PolicySeq &	policy_seq,
		const CosTrading::TraderName &	name
	)		const

Policies to forward to the next trader in a directed query.

void TAO_Policies::copy_to_pass	(	CosTrading::PolicySeq &	policy_seq,
		const CosTrading::Admin::OctetSeq &	request_id
	)		const

Policies to forward to the next trader in a federated query.

CORBA::Boolean TAO_Policies::exact_type_match ( void ) const

CORBA::ULong TAO_Policies::hop_count ( void ) const

CosTrading::FollowOption TAO_Policies::link_follow_rule ( void ) const

Determine the link follow policy for this query overall.

CosTrading::FollowOption TAO_Policies::link_follow_rule ( const CosTrading::Link::LinkInfo & link_info ) const

Determine the link follow policy for a given <link_name>. This method returns the link_follow_rule for a link whose name is <link_name> using the following formula: if the importer specified a link_follow_rule policy min(trader.max_follow_policy, link.limiting_follow_rule, query.link_follow_rule) else min(trader.max_follow_policy, link.limiting_follow_rule, trader.def_follow_policy)

CORBA::ULong TAO_Policies::match_card ( void ) const

TAO_Policies& TAO_Policies::operator= ( const TAO_Policies & )

private

CosTrading::Admin::OctetSeq * TAO_Policies::request_id ( void ) const

Return the request_id passed to the query method across a link to another trader.

CORBA::ULong TAO_Policies::return_card ( void ) const

CORBA::ULong TAO_Policies::search_card ( void ) const

CosTrading::TraderName * TAO_Policies::starting_trader ( void ) const

BEGIN SPEC The "starting_trader" policy facilitates the distribution of the trading service itself. It allows an importer to scope a search by choosing to explicitly navigate the links of the trading graph. If the policy is used in a query invocation it is recommended that it be the first policy-value pair; this facilitates an optimal forwarding of the query operation. A "policies" parameter need not include a value for the "starting_trader" policy. Where this policy is present, the first name component is compared against the name held in each link. If no match is found, the InvalidPolicyValue exception is raised. Otherwise, the trader invokes query() on the Lookup interface held by the named link, but passing the "starting_trader" policy with the first component removed. END SPEC

CORBA::ULong TAO_Policies::ulong_prop ( POLICY_TYPE pol ) const

private

Reconclile a ULong property with its default.

CORBA::Boolean TAO_Policies::use_dynamic_properties ( void ) const

CORBA::Boolean TAO_Policies::use_modifiable_properties ( void ) const

CORBA::Boolean TAO_Policies::use_proxy_offers ( void ) const

Member Data Documentation

CosTrading::Policy* TAO_Policies::policies_[TAO_NUM_POLICIES]

private

The policies indexable from the enumerated type.

const char * TAO_Policies::POLICY_NAMES

static

Initial value:

=
{
  "starting_trader",
  "exact_type_match",
  "hop_count",
  "link_follow_rule",
  "match_card",
  "return_card",
  "search_card",
  "use_dynamic_properties",
  "use_modifiable_properties",
  "use_proxy_offers",
  "request_id"
}

TAO_Trader_Base& TAO_Policies::trader_

private

For the validating identifier names.

The documentation for this class was generated from the following files:
