ACEXML_Attribute_Def_Builder Class Reference

An abstract virtual class defining an interface for building an attribute definition from DTD. More...

#include <Attributes_Def_Builder.h>

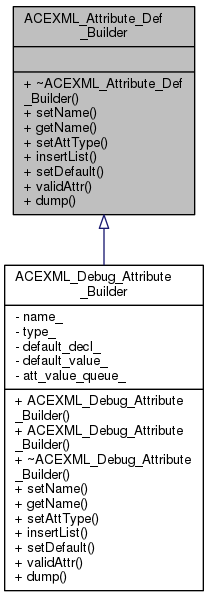

Inheritance diagram for ACEXML_Attribute_Def_Builder:

Collaboration diagram for ACEXML_Attribute_Def_Builder:

Public Types
enum	ATT_TYPE {   CDATA, ID, IDREF, IDREFS,   ENTITY, ENTITIES, NMTOKEN, NMTOKENS,   NOTATION, ENUMERATION, ERROR_TYPE }
enum	DEFAULT_DECL { REQUIRED, IMPLIED, FIXED, INVALID }
typedef auto_ptr < ACEXML_Attribute_Def_Builder >	VAR

Public Member Functions
virtual	~ACEXML_Attribute_Def_Builder ()=0
virtual int	setName (const ACEXML_Char *n)=0
virtual const ACEXML_Char *	getName (void)=0
virtual int	setAttType (const ATT_TYPE type)=0
virtual int	insertList (const ACEXML_Char *Name)=0
virtual int	setDefault (const DEFAULT_DECL def, const ACEXML_Char *value)=0
virtual int	validAttr (void)=0
virtual void	dump (void)=0

Detailed Description

An abstract virtual class defining an interface for building an attribute definition from DTD.

This class should be invisible to application programmers and is only used for validator implementors.

Member Typedef Documentation

typedef auto_ptr<ACEXML_Attribute_Def_Builder> ACEXML_Attribute_Def_Builder::VAR

Member Enumeration Documentation

enum ACEXML_Attribute_Def_Builder::ATT_TYPE

Enumerator
CDATA
ID
IDREF
IDREFS
ENTITY
ENTITIES
NMTOKEN
NMTOKENS
NOTATION
ENUMERATION
ERROR_TYPE

enum ACEXML_Attribute_Def_Builder::DEFAULT_DECL

Enumerator
REQUIRED
IMPLIED
FIXED
INVALID

Constructor & Destructor Documentation

ACEXML_Attribute_Def_Builder::~ACEXML_Attribute_Def_Builder ( )

pure virtual

Member Function Documentation

virtual void ACEXML_Attribute_Def_Builder::dump ( void  )

pure virtual

Dump the content of the attribute definition.

Implemented in ACEXML_Debug_Attribute_Builder.

virtual const ACEXML_Char* ACEXML_Attribute_Def_Builder::getName ( void  )

pure virtual

Get the name of the attribute.

Implemented in ACEXML_Debug_Attribute_Builder.

virtual int ACEXML_Attribute_Def_Builder::insertList ( const ACEXML_Char *  Name )

pure virtual

Insert an element for NOTATION or ENUMERATION type attribute.

Implemented in ACEXML_Debug_Attribute_Builder.

virtual int ACEXML_Attribute_Def_Builder::setAttType ( const ATT_TYPE  type )

pure virtual

Set the attribute type.

virtual int ACEXML_Attribute_Def_Builder::setDefault ( const DEFAULT_DECL  def, const ACEXML_Char *  value  )

pure virtual

Set default attribute declaration.

Implemented in ACEXML_Debug_Attribute_Builder.

virtual int ACEXML_Attribute_Def_Builder::setName ( const ACEXML_Char *  n )

pure virtual

Specify the name of the attribute.

Implemented in ACEXML_Debug_Attribute_Builder.

virtual int ACEXML_Attribute_Def_Builder::validAttr ( void  )

pure virtual

Check validity of the current attribute definition being built.

Return values

0	if the attribute is not a valid combo.

Implemented in ACEXML_Debug_Attribute_Builder.

---

The documentation for this class was generated from the following files:

• Attributes_Def_Builder.h
• Attributes_Def_Builder.cpp
