#include <StreamHandler.h>

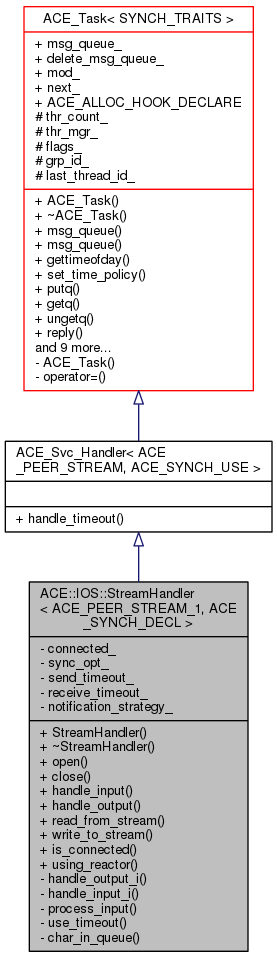

Inheritance diagram for ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >:

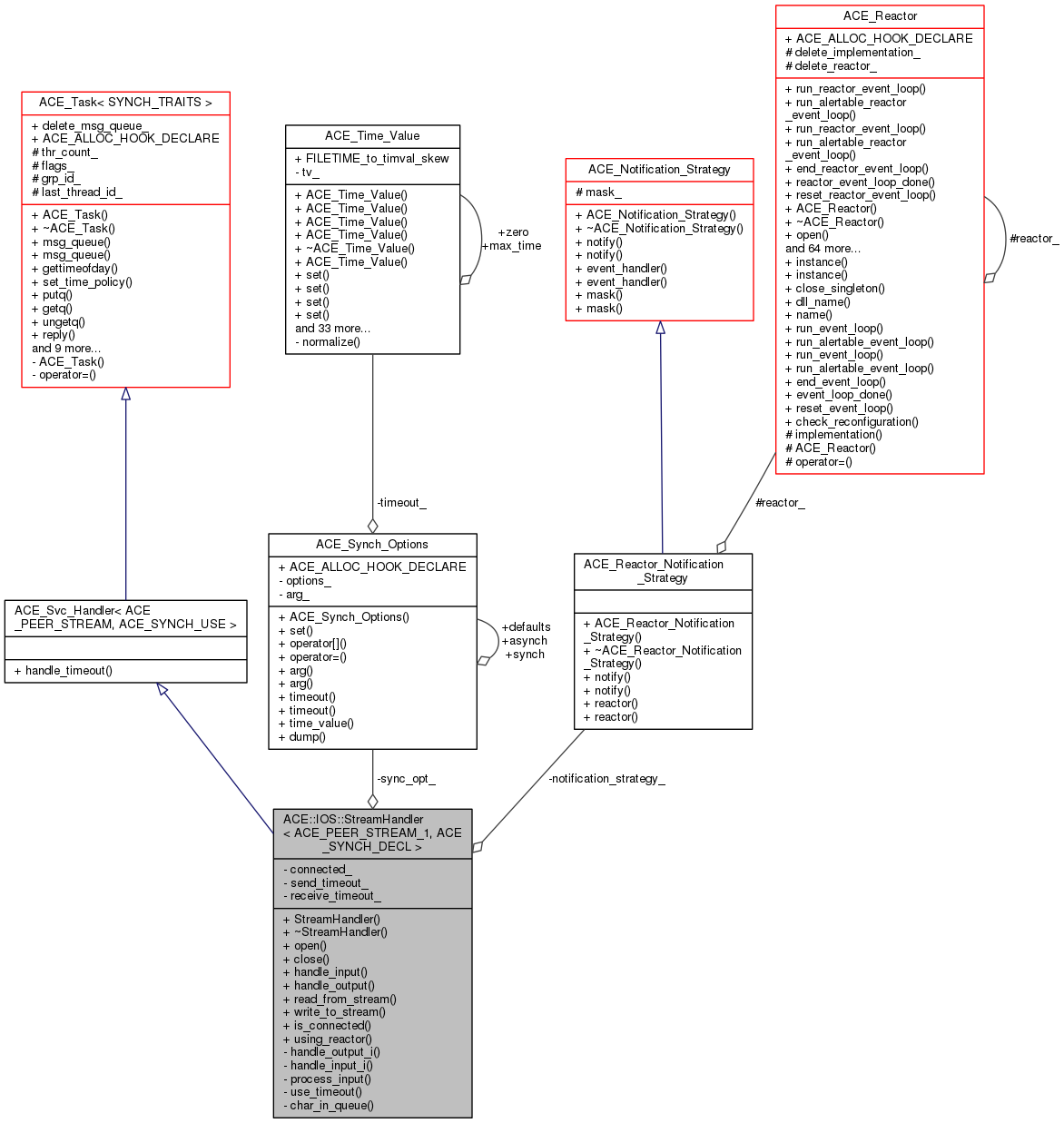

Collaboration diagram for ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >:

Classes
class	NotificationStrategyGuard

Public Types
typedef StreamHandler < ACE_PEER_STREAM, ACE_SYNCH_USE >	this_type

typedef ACE_Svc_Handler < ACE_PEER_STREAM, ACE_SYNCH_USE >	base_type

typedef ACE_Message_Queue < ACE_SYNCH_USE >	mq_type

Public Member Functions
	StreamHandler (const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, ACE_Thread_Manager thr_mgr=0, mq_type mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())
	Constructor. More...

virtual	~StreamHandler ()
	Destructor. More...

virtual int	open (void *=0)
	Activate the connection. More...

virtual int	close (u_long flags=0)
	Close the connection. More...

virtual int	handle_input (ACE_HANDLE)

virtual int	handle_output (ACE_HANDLE)

int	read_from_stream (void *buf, size_t length, u_short char_size)
	Called by streambuffer to read/receive new data from peer. More...

int	write_to_stream (const void *buf, size_t length, u_short char_size)
	Called by streambuffer to send new data to peer. More...

bool	is_connected () const
	Returns true as long as the connection to peer is active. More...

bool	using_reactor () const
	Returns true if StreamHandler has been configured for reactive mode. More...

Public Member Functions inherited from ACE_Svc_Handler< ACE_PEER_STREAM, ACE_SYNCH_USE >
virtual int	handle_timeout (const ACE_Time_Value &time, const void *)

Public Member Functions inherited from ACE_Task< SYNCH_TRAITS >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > mq=0)

virtual	~ACE_Task (void)

ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue (void)

void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Time_Value_T< TIME_POLICY >	gettimeofday (void) const

void	set_time_policy (TIME_POLICY const &time_policy)

int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)

int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)

const ACE_TCHAR *	name (void) const

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next (void)

void	next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	sibling (void)

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	module (void) const

int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)

void	dump (void) const

Private Types
enum	{ MAX_INPUT_SIZE = 4096 }

Private Member Functions
int	handle_output_i (ACE_Time_Value *timeout=0)

int	handle_input_i (size_t rdlen, ACE_Time_Value *timeout=0)

int	process_input (char buf, size_t &char_length, u_short char_size, ACE_Time_Value timeout)
	processes queued input More...

bool	use_timeout () const
	Returns true if a timeout is to be used on IO operations. More...

bool	char_in_queue (u_short char_size)
	Returns true is the queued data contains at least char_size bytes. More...

Private Attributes
bool	connected_

ACE_Synch_Options	sync_opt_

bool	send_timeout_

bool	receive_timeout_

ACE_Reactor_Notification_Strategy	notification_strategy_

Additional Inherited Members
Public Attributes inherited from ACE_Task< SYNCH_TRAITS >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_

bool	delete_msg_queue_

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_

	ACE_ALLOC_HOOK_DECLARE

Protected Attributes inherited from ACE_Task< SYNCH_TRAITS >
size_t	thr_count_

ACE_Thread_Manager *	thr_mgr_

u_long	flags_

int	grp_id_

ACE_thread_t	last_thread_id_
