Handles requests on a single connection. More...

#include <DIOP_Connection_Handler.h>

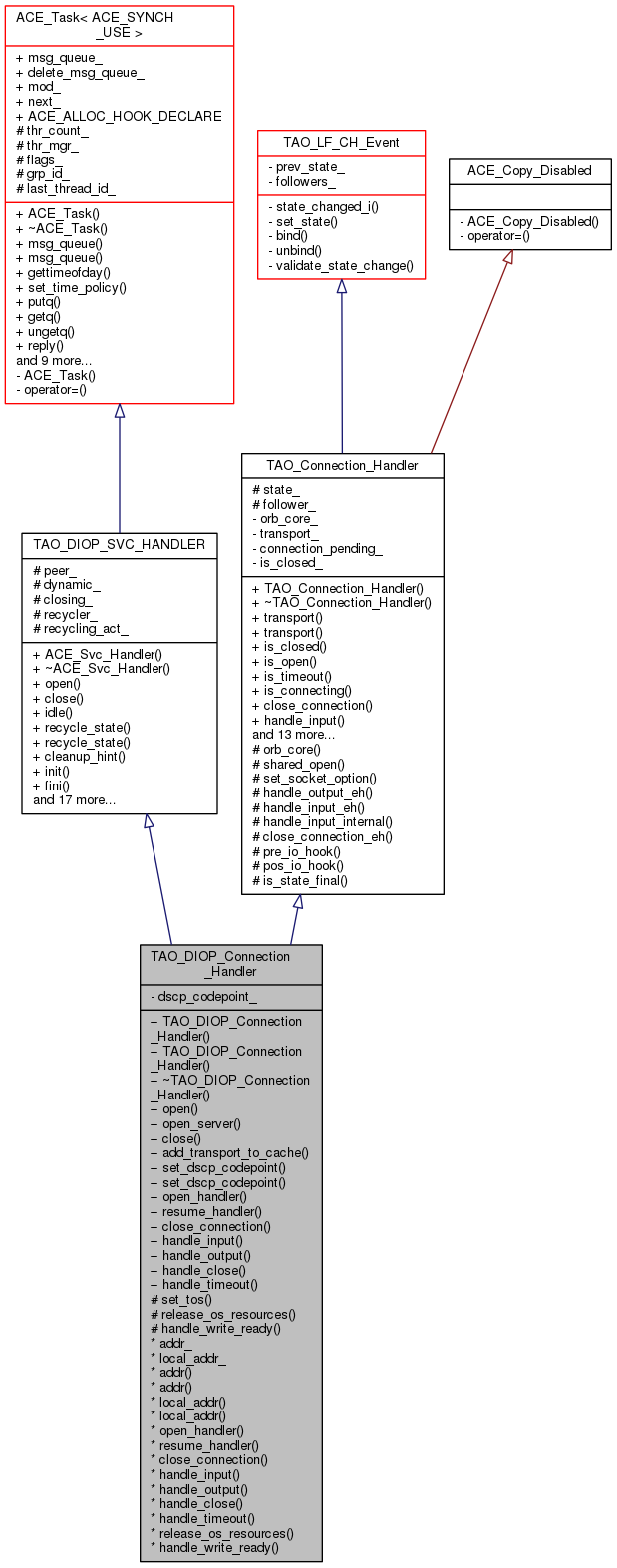

Inheritance diagram for TAO_DIOP_Connection_Handler:

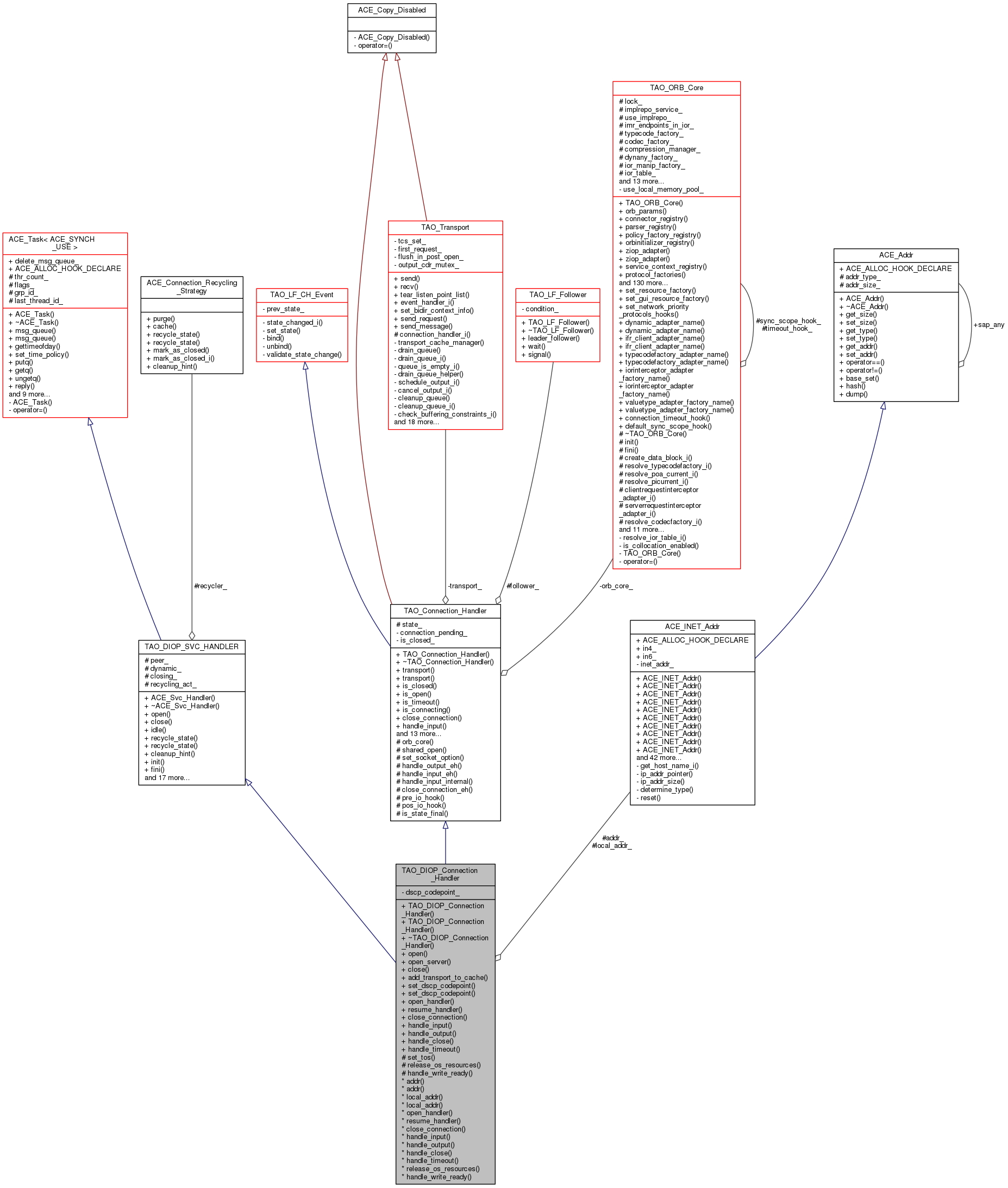

Collaboration diagram for TAO_DIOP_Connection_Handler:

Public Member Functions
	TAO_DIOP_Connection_Handler (ACE_Thread_Manager *t=0)

	TAO_DIOP_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor. More...

	~TAO_DIOP_Connection_Handler (void)
	Destructor. More...

virtual int	open (void *)

virtual int	open_server (void)

int	close (u_long=0)

int	add_transport_to_cache (void)
	Add ourselves to Cache. More...

int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets. More...

int	set_dscp_codepoint (CORBA::Long dscp_codepoint)


virtual int	open_handler (void *)

Event Handler overloads
virtual int	resume_handler (void)

virtual int	close_connection (void)

virtual int	handle_input (ACE_HANDLE)

virtual int	handle_output (ACE_HANDLE)

virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

Public Member Functions inherited from ACE_Svc_Handler< class, class >
	ACE_Svc_Handler (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())

virtual	~ACE_Svc_Handler (void)

virtual int	idle (u_long flags=0)

virtual ACE_Recyclable_State	recycle_state (void) const

virtual int	recycle_state (ACE_Recyclable_State new_state)

virtual void	cleanup_hint (void **act_holder=0)

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length) const

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

ACE_PEER_STREAM &	peer (void) const

void *	operator new (size_t n)

void *	operator new (size_t n, void *p)

virtual void	destroy (void)

void	operator delete (void *)

void	operator delete (void , void )

void	shutdown (void)

void	dump (void) const

virtual void	recycler (ACE_Connection_Recycling_Strategy recycler, const void recycling_act)

virtual ACE_Connection_Recycling_Strategy *	recycler (void) const

virtual const void *	recycling_act (void) const

virtual int	recycle (void *=0)

Public Member Functions inherited from ACE_Task< ACE_SYNCH_USE >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > mq=0)

virtual	~ACE_Task (void)

ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue (void)

void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Time_Value_T< TIME_POLICY >	gettimeofday (void) const

void	set_time_policy (TIME_POLICY const &time_policy)

int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)

int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)

const ACE_TCHAR *	name (void) const

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next (void)

void	next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	sibling (void)

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	module (void) const

int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)

void	dump (void) const

Public Member Functions inherited from TAO_Connection_Handler
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)

virtual	~TAO_Connection_Handler (void)

TAO_Transport *	transport (void)

void	transport (TAO_Transport *transport)

bool	is_closed (void) const

bool	is_open (void) const

bool	is_timeout (void) const

bool	is_connecting (void) const

int	svc_i (void)

virtual int	close_handler (u_long flags=0)

void	connection_pending (void)

void	cancel_pending_connection (void)

	TAO_LF_CH_Event (void)

virtual	~TAO_LF_CH_Event (void)

int	successful (void) const

int	error_detected (void) const

Protected Member Functions
int	set_tos (int tos)
	Helper method used by the set_dscp_codepoint () methods. More...

TAO_Connection Handler overloads
virtual int	release_os_resources (void)

virtual int	handle_write_ready (const ACE_Time_Value *timeout)

Protected Member Functions inherited from TAO_Connection_Handler
TAO_ORB_Core *	orb_core (void)

int	shared_open (void)

int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)

int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)

int	close_connection_eh (ACE_Event_Handler *eh)

virtual void	pre_io_hook (int &return_value)

virtual void	pos_io_hook (int &return_value)

virtual int	is_state_final (void)

Private Attributes
int	dscp_codepoint_
	Stores the type of service value. More...

The DIOP Additions
ACE_INET_Addr	addr_
	This is always the remote address. More...

ACE_INET_Addr	local_addr_
	This is always the local address for the connector. More...

const ACE_INET_Addr &	addr (void)
	This is always the remote address. More...

void	addr (const ACE_INET_Addr &addr)
	This is always the remote address. More...

const ACE_INET_Addr &	local_addr (void)
	This is always the remote address. More...

void	local_addr (const ACE_INET_Addr &addr)
	This is always the remote address. More...

Additional Inherited Members
Public Types inherited from ACE_Svc_Handler< class, class >
typedef ACE_PEER_STREAM_ADDR	addr_type

typedef ACE_PEER_STREAM	stream_type

Public Attributes inherited from ACE_Task< ACE_SYNCH_USE >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_

bool	delete_msg_queue_

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_

	ACE_ALLOC_HOOK_DECLARE

Protected Attributes inherited from ACE_Svc_Handler< class, class >
ACE_PEER_STREAM	peer_

bool	dynamic_

bool	closing_

ACE_Connection_Recycling_Strategy *	recycler_

const void *	recycling_act_

Protected Attributes inherited from TAO_Connection_Handler
int	state_

TAO_LF_Follower *	follower_

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Constructor & Destructor Documentation

TAO_DIOP_Connection_Handler::TAO_DIOP_Connection_Handler ( ACE_Thread_Manager * t = 0 )

TAO_DIOP_Connection_Handler::TAO_DIOP_Connection_Handler ( TAO_ORB_Core * orb_core )

Constructor.

TAO_DIOP_Connection_Handler::~TAO_DIOP_Connection_Handler ( void )

Destructor.

Member Function Documentation

int TAO_DIOP_Connection_Handler::add_transport_to_cache ( void )

Add ourselves to Cache.

const ACE_INET_Addr & TAO_DIOP_Connection_Handler::addr ( void )

This is always the remote address.

void TAO_DIOP_Connection_Handler::addr ( const ACE_INET_Addr & addr )

This is always the remote address.

int TAO_DIOP_Connection_Handler::close ( u_long flags = 0 )

virtual

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_DIOP_Connection_Handler::close_connection ( void )

virtual

Implements TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_DIOP_Connection_Handler::handle_input ( ACE_HANDLE h )

virtual

Implements TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::handle_output ( ACE_HANDLE handle )

virtual

int TAO_DIOP_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_DIOP_Connection_Handler::handle_write_ready ( const ACE_Time_Value * timeout )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

const ACE_INET_Addr & TAO_DIOP_Connection_Handler::local_addr ( void )

This is always the remote address.

void TAO_DIOP_Connection_Handler::local_addr ( const ACE_INET_Addr & addr )

This is always the remote address.

int TAO_DIOP_Connection_Handler::open ( void * )

virtual

Called by the <Strategy_Acceptor> when the handler is completely connected. Argument is unused.

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_DIOP_Connection_Handler::open_handler ( void * v )

virtual

Connection_Handler overloads

Implements TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::open_server ( void )

virtual

int TAO_DIOP_Connection_Handler::release_os_resources ( void )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::resume_handler ( void )

virtual

int TAO_DIOP_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean set_network_priority )

virtual

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::set_dscp_codepoint ( CORBA::Long dscp_codepoint )

virtual

Reimplemented from TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::set_tos ( int tos )

protected

Helper method used by the set_dscp_codepoint () methods.

Member Data Documentation

ACE_INET_Addr TAO_DIOP_Connection_Handler::addr_

protected

This is always the remote address.

int TAO_DIOP_Connection_Handler::dscp_codepoint_

private

Stores the type of service value.

ACE_INET_Addr TAO_DIOP_Connection_Handler::local_addr_

protected

This is always the local address for the connector.

The documentation for this class was generated from the following files:
