TAO_AV_TCP_Flow_Handler Class Reference

#include <TCP.h>

Inheritance diagram for TAO_AV_TCP_Flow_Handler:

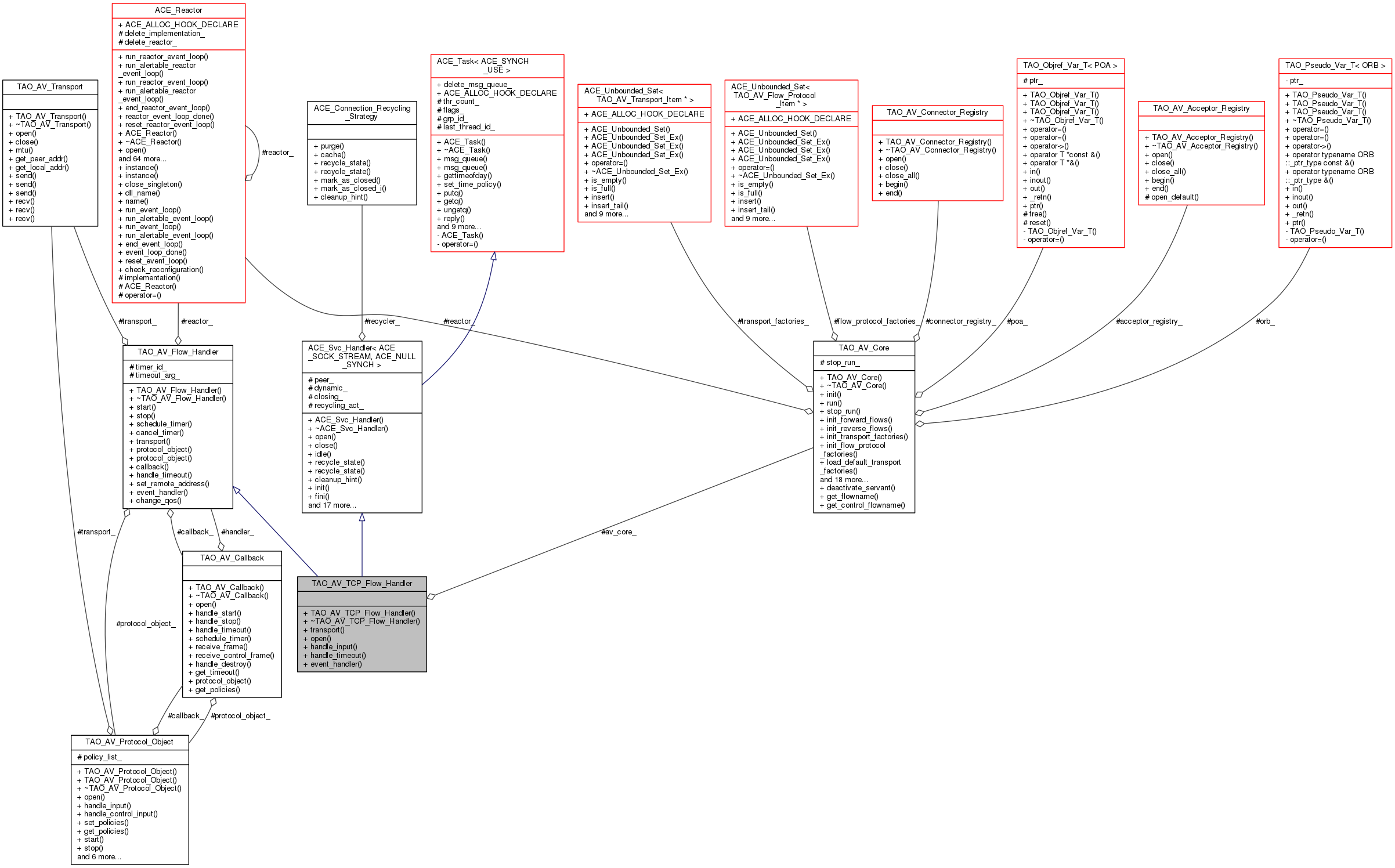

Collaboration diagram for TAO_AV_TCP_Flow_Handler:

Public Member Functions
	TAO_AV_TCP_Flow_Handler (TAO_AV_Callback *callback=0)
virtual	~TAO_AV_TCP_Flow_Handler (void)
virtual TAO_AV_Transport *	transport (void)
virtual int	open (void *=0)
virtual int	handle_input (ACE_HANDLE fd)
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg=0)
	Handle timeout. called from reactor. More...
virtual ACE_Event_Handler *	event_handler (void)
	get the underlying event handler. To be overridden by the derived clases. More...
Public Member Functions inherited from TAO_AV_Flow_Handler
	TAO_AV_Flow_Handler (void)
	Constructor. More...
virtual	~TAO_AV_Flow_Handler (void)
virtual int	start (TAO_FlowSpec_Entry::Role role)
	Start/stop the flow handler. More...
virtual int	stop (TAO_FlowSpec_Entry::Role role)
virtual int	schedule_timer (void)
	Schedule timer. Uses the get_timeout method on the callback. More...
virtual int	cancel_timer (void)
TAO_AV_Transport *	transport (void)
	get the transport. More...
TAO_AV_Protocol_Object *	protocol_object (void)
	set/get protocol_object. More...
void	protocol_object (TAO_AV_Protocol_Object *protocol_object)
void	callback (TAO_AV_Callback *callback)
	set the callback. More...
virtual int	set_remote_address (ACE_Addr *address)
	set the remote address. More...
virtual int	change_qos (AVStreams::QoS)
Public Member Functions inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
	ACE_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())
virtual	~ACE_Svc_Handler (void)
virtual int	close (u_long flags=0)
virtual int	idle (u_long flags=0)
virtual ACE_Recyclable_State	recycle_state (void) const
virtual int	recycle_state (ACE_Recyclable_State new_state)
virtual void	cleanup_hint (void **act_holder=0)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length) const
virtual int	handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
ACE_PEER_STREAM &	peer (void) const
void *	operator new (size_t n)
void *	operator new (size_t n, void *p)
virtual void	destroy (void)
void	operator delete (void *)
void	operator delete (void *, void *)
void	shutdown (void)
void	dump (void) const
virtual void	recycler (ACE_Connection_Recycling_Strategy *recycler, const void *recycling_act)
virtual ACE_Connection_Recycling_Strategy *	recycler (void) const
virtual const void *	recycling_act (void) const
virtual int	recycle (void *=0)
Public Member Functions inherited from ACE_Task< ACE_SYNCH_USE >
	ACE_Task (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *mq=0)
virtual	~ACE_Task (void)
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue (void)
void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)
ACE_Time_Value_T< TIME_POLICY >	gettimeofday (void) const
void	set_time_policy (TIME_POLICY const &time_policy)
int	putq (ACE_Message_Block *, ACE_Time_Value *timeout=0)
int	getq (ACE_Message_Block *&mb, ACE_Time_Value *timeout=0)
int	ungetq (ACE_Message_Block *, ACE_Time_Value *timeout=0)
int	reply (ACE_Message_Block *mb, ACE_Time_Value *tv=0)
int	put_next (ACE_Message_Block *msg, ACE_Time_Value *timeout=0)
const ACE_TCHAR *	name (void) const
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next (void)
void	next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	sibling (void)
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	module (void) const
int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)
void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
void	dump (void) const

Protected Attributes
TAO_AV_Core *	av_core_
Protected Attributes inherited from TAO_AV_Flow_Handler
TAO_AV_Transport *	transport_
TAO_AV_Callback *	callback_
TAO_AV_Protocol_Object *	protocol_object_
long	timer_id_
ACE_Reactor *	reactor_
void *	timeout_arg_
Protected Attributes inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
ACE_PEER_STREAM	peer_
bool	dynamic_
bool	closing_
ACE_Connection_Recycling_Strategy *	recycler_
const void *	recycling_act_
Protected Attributes inherited from ACE_Task< ACE_SYNCH_USE >
size_t	thr_count_
ACE_Thread_Manager *	thr_mgr_
u_long	flags_
int	grp_id_
ACE_thread_t	last_thread_id_

Additional Inherited Members
Public Types inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
typedef ACE_PEER_STREAM_ADDR	addr_type
typedef ACE_PEER_STREAM	stream_type
Public Attributes inherited from ACE_Task< ACE_SYNCH_USE >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_
bool	delete_msg_queue_
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_
	ACE_ALLOC_HOOK_DECLARE

Constructor & Destructor Documentation

TAO_AV_TCP_Flow_Handler::TAO_AV_TCP_Flow_Handler

(

TAO_AV_Callback *

callback = 0

)

TAO_AV_TCP_Flow_Handler::~TAO_AV_TCP_Flow_Handler ( void  )

virtual

Member Function Documentation

virtual ACE_Event_Handler* TAO_AV_TCP_Flow_Handler::event_handler ( void  )

inlinevirtual

get the underlying event handler. To be overridden by the derived clases.

Implements TAO_AV_Flow_Handler.

int TAO_AV_TCP_Flow_Handler::handle_input ( ACE_HANDLE  fd )

virtual

int TAO_AV_TCP_Flow_Handler::handle_timeout ( const ACE_Time_Value &  tv, const void *  arg = 0  )

virtual

Handle timeout. called from reactor.

Reimplemented from TAO_AV_Flow_Handler.

int TAO_AV_TCP_Flow_Handler::open ( void *  = 0 )

virtual

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

TAO_AV_Transport * TAO_AV_TCP_Flow_Handler::transport ( void  )

virtual

Member Data Documentation

TAO_AV_Core* TAO_AV_TCP_Flow_Handler::av_core_

protected

---

The documentation for this class was generated from the following files:

• TCP.h
• TCP.cpp
