TAO::PG_Group_Factory Class Reference

#include <PG_Group_Factory.h>

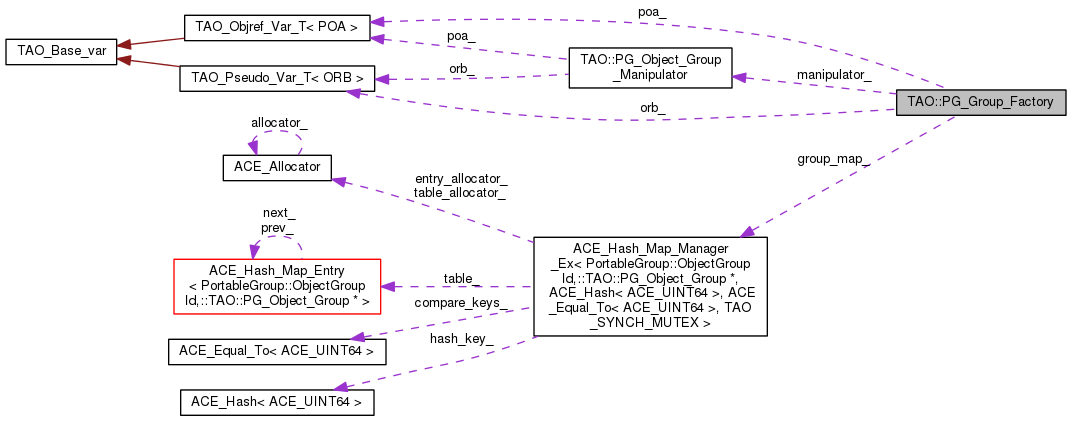

Collaboration diagram for TAO::PG_Group_Factory:

List of all members.

Public Member Functions
	PG_Group_Factory ()
	Constructor.
	~PG_Group_Factory ()
	Destructor.
void	init (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, PortableGroup::FactoryRegistry_ptr factory_registry)
TAO::PG_Object_Group *	create_group (const char *type_id, const PortableGroup::Criteria &the_criteria, TAO::PG_Property_Set *typeid_properties)
void	delete_group (PortableGroup::ObjectGroup_ptr object_group)
void	delete_group (PortableGroup::ObjectGroupId group_id)
PortableGroup::ObjectGroups *	groups_at_location (const PortableGroup::Location &the_location)
int	insert_group (::TAO::PG_Object_Group *group)
int	insert_group (PortableGroup::ObjectGroupId group_id,::TAO::PG_Object_Group *group)
int	find_group (PortableGroup::ObjectGroupId group_id,::TAO::PG_Object_Group *&group) const
int	find_group (PortableGroup::ObjectGroup_ptr object_group,::TAO::PG_Object_Group *&group) const
int	destroy_group (PortableGroup::ObjectGroupId object_group_id)
int	destroy_group (PortableGroup::ObjectGroup_ptr object_group)

Private Types
typedef ACE_Hash_Map_Manager_Ex < PortableGroup::ObjectGroupId,::TAO::PG_Object_Group *, ACE_Hash< ACE_UINT64 > , ACE_Equal_To< ACE_UINT64 > , TAO_SYNCH_MUTEX >	Group_Map
typedef ACE_Hash_Map_Entry < PortableGroup::ObjectGroupId,::TAO::PG_Object_Group * >	Group_Map_Entry
typedef ACE_Hash_Map_Iterator_Ex < PortableGroup::ObjectGroupId,::TAO::PG_Object_Group *, ACE_Hash< ACE_UINT64 > , ACE_Equal_To< ACE_UINT64 > , TAO_SYNCH_MUTEX >	Group_Map_Iterator

Private Attributes
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
	Reference to the POA used to create object group references.
PortableGroup::FactoryRegistry_var	factory_registry_
	The factory registry for replica factories.
::TAO::PG_Object_Group_Manipulator	manipulator_
const char *	domain_id_
Group_Map	group_map_

---

Detailed Description

class PG_Group_Factory

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex< PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *, ACE_Hash<ACE_UINT64>, ACE_Equal_To<ACE_UINT64>, TAO_SYNCH_MUTEX> TAO::PG_Group_Factory::Group_Map

private

typedef ACE_Hash_Map_Entry<PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *> TAO::PG_Group_Factory::Group_Map_Entry

private

typedef ACE_Hash_Map_Iterator_Ex< PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *, ACE_Hash<ACE_UINT64>, ACE_Equal_To<ACE_UINT64>, TAO_SYNCH_MUTEX> TAO::PG_Group_Factory::Group_Map_Iterator

private

---

Constructor & Destructor Documentation

TAO::PG_Group_Factory::PG_Group_Factory

(

)

Constructor.

TAO::PG_Group_Factory::~PG_Group_Factory

(

void

)

Destructor.

---

Member Function Documentation

TAO::PG_Object_Group * TAO::PG_Group_Factory::create_group	(	const char *	type_id,
		const PortableGroup::Criteria &	the_criteria,
		TAO::PG_Property_Set *	typeid_properties
	)

void TAO::PG_Group_Factory::delete_group

(

PortableGroup::ObjectGroup_ptr

object_group

)

void TAO::PG_Group_Factory::delete_group

(

PortableGroup::ObjectGroupId

group_id

)

int TAO::PG_Group_Factory::destroy_group

(

PortableGroup::ObjectGroupId

object_group_id

)

remove group from map and delete it.

Returns:

bool true if found

int TAO::PG_Group_Factory::destroy_group

(

PortableGroup::ObjectGroup_ptr

object_group

)

remove group from map and delete it. note: uses group id extracted from object_group

Returns:

bool true if found

int TAO::PG_Group_Factory::find_group	(	PortableGroup::ObjectGroupId	group_id,
		::TAO::PG_Object_Group *&	group
	)		const

find group

Returns:

bool true if found

int TAO::PG_Group_Factory::find_group	(	PortableGroup::ObjectGroup_ptr	object_group,
		::TAO::PG_Object_Group *&	group
	)		const

find group note: uses group id extracted from object_group

Returns:

bool true if found

PortableGroup::ObjectGroups * TAO::PG_Group_Factory::groups_at_location

(

const PortableGroup::Location &

the_location

)

void TAO::PG_Group_Factory::init	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		PortableGroup::FactoryRegistry_ptr	factory_registry
	)

int TAO::PG_Group_Factory::insert_group

(

::TAO::PG_Object_Group *

group

)

insert existing group. Take ownership note: uses group id extracted from group object

Returns:

bool true if insertion successful

int TAO::PG_Group_Factory::insert_group	(	PortableGroup::ObjectGroupId	group_id,
		::TAO::PG_Object_Group *	group
	)

insert group. Take ownership

Returns:

bool true if insertion successful

---

Member Data Documentation

const char* TAO::PG_Group_Factory::domain_id_

private

PortableGroup::FactoryRegistry_var TAO::PG_Group_Factory::factory_registry_

private

The factory registry for replica factories.

Group_Map TAO::PG_Group_Factory::group_map_

private

::TAO::PG_Object_Group_Manipulator TAO::PG_Group_Factory::manipulator_

private

CORBA::ORB_var TAO::PG_Group_Factory::orb_

private

PortableServer::POA_var TAO::PG_Group_Factory::poa_

private

Reference to the POA used to create object group references.

---

The documentation for this class was generated from the following files:

• PG_Group_Factory.h
• PG_Group_Factory.cpp
