ACEXML_Debug_Attribute_Builder Class Reference

#include <parser/debug_validator/Debug_Attributes_Builder.h>

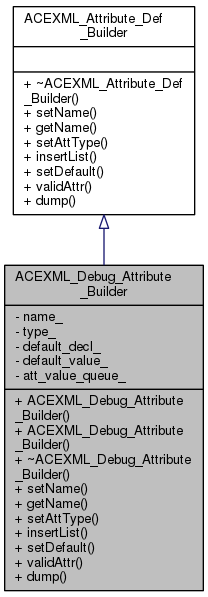

Inheritance diagram for ACEXML_Debug_Attribute_Builder:

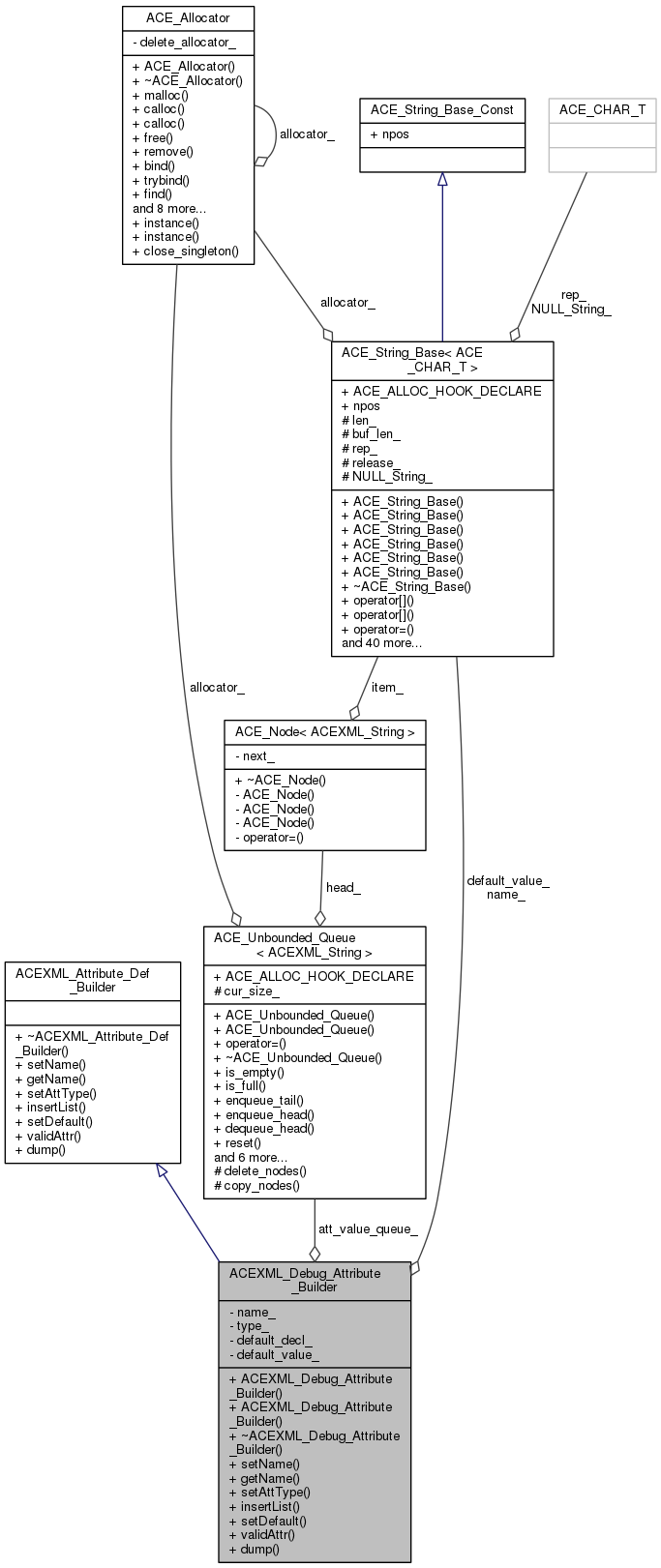

Collaboration diagram for ACEXML_Debug_Attribute_Builder:

List of all members.

Public Member Functions
	ACEXML_Debug_Attribute_Builder ()
	ACEXML_Debug_Attribute_Builder (const ACEXML_Debug_Attribute_Builder &rhs)
virtual	~ACEXML_Debug_Attribute_Builder ()
virtual int	setName (const ACEXML_Char *n)
virtual const ACEXML_Char *	getName (void)
virtual int	setAttType (const ATT_TYPE type)
virtual int	insertList (const ACEXML_Char *Name)
virtual int	setDefault (const DEFAULT_DECL def, const ACEXML_Char *value)
virtual int	validAttr (void)
virtual void	dump (void)
Public Member Functions inherited from ACEXML_Attribute_Def_Builder
virtual	~ACEXML_Attribute_Def_Builder ()=0
virtual int	setAttType (const ATT_TYPE type)=0

Private Attributes
ACEXML_String	name_
	Attribute name.
ATT_TYPE	type_
	Type of attribute.
DEFAULT_DECL	default_decl_
	Default value type.
ACEXML_String	default_value_
	Default attribute value.
ACEXML_STRING_QUEUE	att_value_queue_
	Holds a queue of enumerated attribute values.

Additional Inherited Members
Public Types inherited from ACEXML_Attribute_Def_Builder
enum	ATT_TYPE {   CDATA, ID, IDREF, IDREFS,   ENTITY, ENTITIES, NMTOKEN, NMTOKENS,   NOTATION, ENUMERATION, ERROR_TYPE }
enum	DEFAULT_DECL { REQUIRED, IMPLIED, FIXED, INVALID }
typedef auto_ptr < ACEXML_Attribute_Def_Builder >	VAR

---

Detailed Description

This class prints out the Attribute definition for debugging purpose.

---

Constructor & Destructor Documentation

ACEXML_Debug_Attribute_Builder::ACEXML_Debug_Attribute_Builder

(

)

ACEXML_Debug_Attribute_Builder::ACEXML_Debug_Attribute_Builder

(

const ACEXML_Debug_Attribute_Builder &

rhs

)

ACEXML_Debug_Attribute_Builder::~ACEXML_Debug_Attribute_Builder ( )

virtual

---

Member Function Documentation

void ACEXML_Debug_Attribute_Builder::dump ( void  )

virtual

Dump the content of the attribute definition.

Implements ACEXML_Attribute_Def_Builder.

const ACEXML_Char * ACEXML_Debug_Attribute_Builder::getName ( void  )

virtual

Get the name of the attribute.

Implements ACEXML_Attribute_Def_Builder.

int ACEXML_Debug_Attribute_Builder::insertList ( const ACEXML_Char *  Name )

virtual

Insert an element for NOTATION or ENUMERATION type attribute.

Implements ACEXML_Attribute_Def_Builder.

int ACEXML_Debug_Attribute_Builder::setAttType ( const ATT_TYPE  type )

virtual

Set the attribute type.

int ACEXML_Debug_Attribute_Builder::setDefault ( const DEFAULT_DECL  def, const ACEXML_Char *  value  )

virtual

Set default attribute declaration.

Implements ACEXML_Attribute_Def_Builder.

int ACEXML_Debug_Attribute_Builder::setName ( const ACEXML_Char *  n )

virtual

Specify the name of the attribute.

Implements ACEXML_Attribute_Def_Builder.

int ACEXML_Debug_Attribute_Builder::validAttr ( void  )

virtual

Check validity of the current attribute definition being built.

Return values:

0	if the attribute is not a valid combo.

Implements ACEXML_Attribute_Def_Builder.

---

Member Data Documentation

ACEXML_STRING_QUEUE ACEXML_Debug_Attribute_Builder::att_value_queue_

private

Holds a queue of enumerated attribute values.

DEFAULT_DECL ACEXML_Debug_Attribute_Builder::default_decl_

private

Default value type.

ACEXML_String ACEXML_Debug_Attribute_Builder::default_value_

private

Default attribute value.

ACEXML_String ACEXML_Debug_Attribute_Builder::name_

private

Attribute name.

ATT_TYPE ACEXML_Debug_Attribute_Builder::type_

private

Type of attribute.

---

The documentation for this class was generated from the following files:

• Debug_Attributes_Builder.h
• Debug_Attributes_Builder.cpp
