Extend the default factory to support scheduling. More...

#include <EC_Sched_Factory.h>

Inheritance diagram for TAO_EC_Sched_Factory:

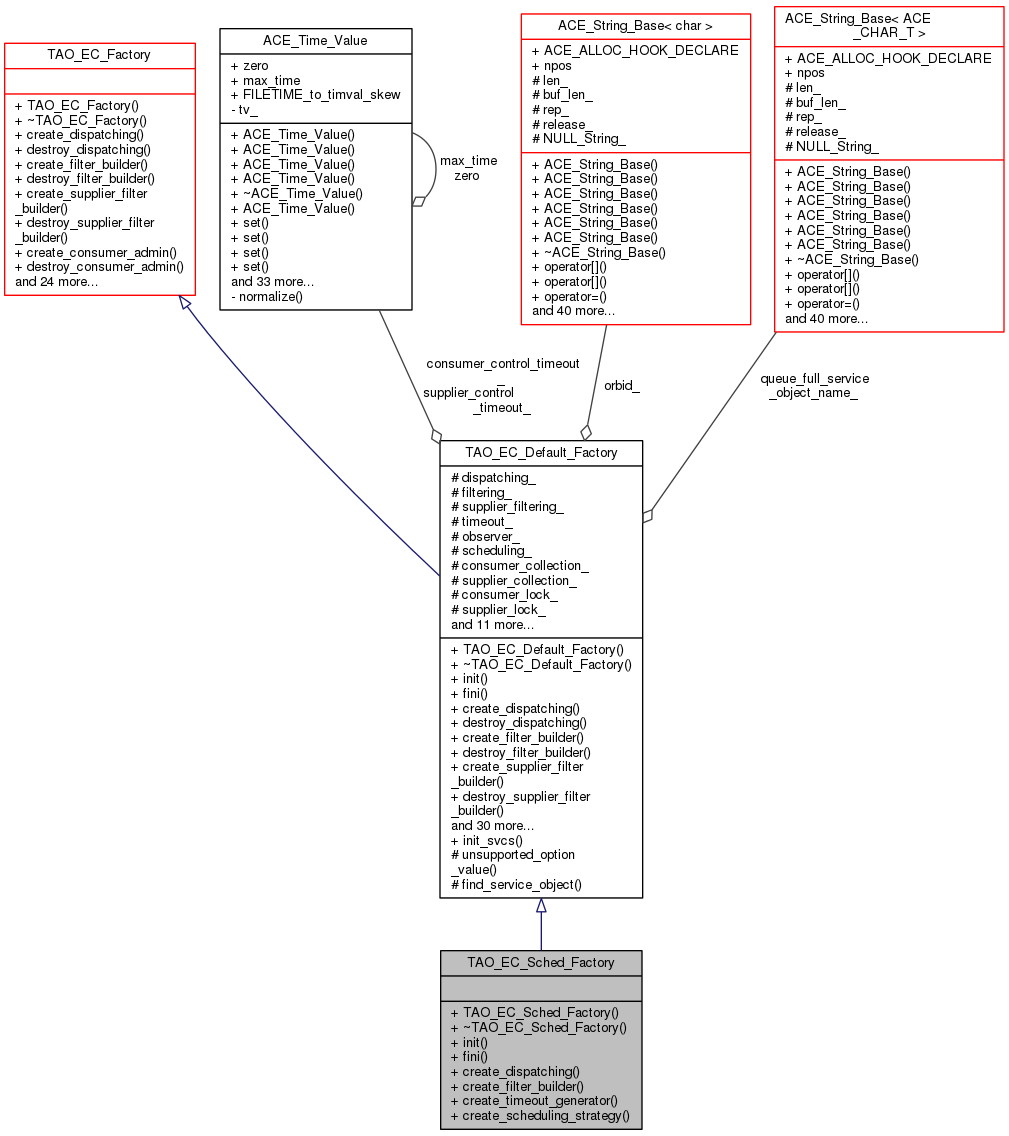

Collaboration diagram for TAO_EC_Sched_Factory:

Public Member Functions
	TAO_EC_Sched_Factory (void)
	Constructor.
virtual	~TAO_EC_Sched_Factory (void)
	destructor...
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
virtual TAO_EC_Dispatching *	create_dispatching (TAO_EC_Event_Channel_Base *)
	Create and destroy the dispatching module.
virtual TAO_EC_Filter_Builder *	create_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder.
virtual TAO_EC_Timeout_Generator *	create_timeout_generator (TAO_EC_Event_Channel_Base *)
	Create and destroy the timer module.
virtual TAO_EC_Scheduling_Strategy *	create_scheduling_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy.
Public Member Functions inherited from TAO_EC_Default_Factory
	TAO_EC_Default_Factory (void)
	Constructor.
virtual	~TAO_EC_Default_Factory (void)
	destructor...
virtual void	destroy_dispatching (TAO_EC_Dispatching *)
virtual void	destroy_filter_builder (TAO_EC_Filter_Builder *)
virtual TAO_EC_Supplier_Filter_Builder *	create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder.
virtual void	destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)
virtual TAO_EC_ConsumerAdmin *	create_consumer_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the consumer admin implementation.
virtual void	destroy_consumer_admin (TAO_EC_ConsumerAdmin *)
virtual TAO_EC_SupplierAdmin *	create_supplier_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the supplier admin implementation.
virtual void	destroy_supplier_admin (TAO_EC_SupplierAdmin *)
virtual TAO_EC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushSupplier.
virtual void	destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)
virtual TAO_EC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushConsumer.
virtual void	destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)
virtual void	destroy_timeout_generator (TAO_EC_Timeout_Generator *)
virtual TAO_EC_ObserverStrategy *	create_observer_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy.
virtual void	destroy_observer_strategy (TAO_EC_ObserverStrategy *)
virtual void	destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)
virtual TAO_EC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushConsumers.
virtual void	destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)
virtual TAO_EC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushSuppliers.
virtual void	destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)
virtual ACE_Lock *	create_consumer_lock (void)
virtual void	destroy_consumer_lock (ACE_Lock *)
virtual ACE_Lock *	create_supplier_lock (void)
virtual void	destroy_supplier_lock (ACE_Lock *)
virtual TAO_EC_ConsumerControl *	create_consumer_control (TAO_EC_Event_Channel_Base *)
virtual void	destroy_consumer_control (TAO_EC_ConsumerControl *)
virtual TAO_EC_SupplierControl *	create_supplier_control (TAO_EC_Event_Channel_Base *)
virtual void	destroy_supplier_control (TAO_EC_SupplierControl *)
int	consumer_collection (void) const
	Accessors to consumer collection flags.
int	supplier_collection (void) const
	Accessors to supplier collection flags.
int	supplier_filtering (void) const
	Accessors to supplier filtering flags.
const ACE_CString &	orb_id (void) const
	Accessor to ORBid.
Public Member Functions inherited from TAO_EC_Factory
	TAO_EC_Factory (void)
	destructor...
virtual	~TAO_EC_Factory (void)
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Additional Inherited Members
Static Public Member Functions inherited from TAO_EC_Default_Factory
static int	init_svcs (void)
Protected Member Functions inherited from TAO_EC_Default_Factory
void	unsupported_option_value (const ACE_TCHAR option_name, const ACE_TCHAR option_value)
TAO_EC_Queue_Full_Service_Object *	find_service_object (const ACE_TCHAR wanted, const ACE_TCHAR fallback)
	name of ACE_Service_Object which should be invoked when output queue becomes full
Protected Attributes inherited from TAO_EC_Default_Factory
int	dispatching_
	Several flags to control the kind of object created.
int	filtering_
int	supplier_filtering_
int	timeout_
int	observer_
int	scheduling_
int	consumer_collection_
int	supplier_collection_
int	consumer_lock_
int	supplier_lock_
int	dispatching_threads_
	Flags used by thread-based dispatching strategies.
int	dispatching_threads_flags_
	number of threads; may be ignored depending on strategy; default: TAO_EC_DEFAULT_DISPATCHING_THREADS
int	dispatching_threads_priority_
	flags for thread creation; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_FLAGS
int	dispatching_threads_force_active_
	dispatching thread priority; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_PRIORITY
ACE_TString	queue_full_service_object_name_
	create threads with innocuous default values if creation with requested values fails
ACE_CString	orbid_
	Use this ORB to locate global resources.
int	consumer_control_
	The consumer and supplier control policies.
int	supplier_control_
int	consumer_control_period_
	The consumer and supplier control periods in usecs.
int	supplier_control_period_
ACE_Time_Value	consumer_control_timeout_
	The consumer control timeout in usecs.
ACE_Time_Value	supplier_control_timeout_
	The supplier control timeout in usecs.
int	consumer_validate_connection_
	Validate the connection to consumer on connect.
