TAO_Notify_FilterFactory Class Reference

Service Object to obtain a CosNotifyFilter::FilterFactory reference. More...

#include <FilterFactory.h>

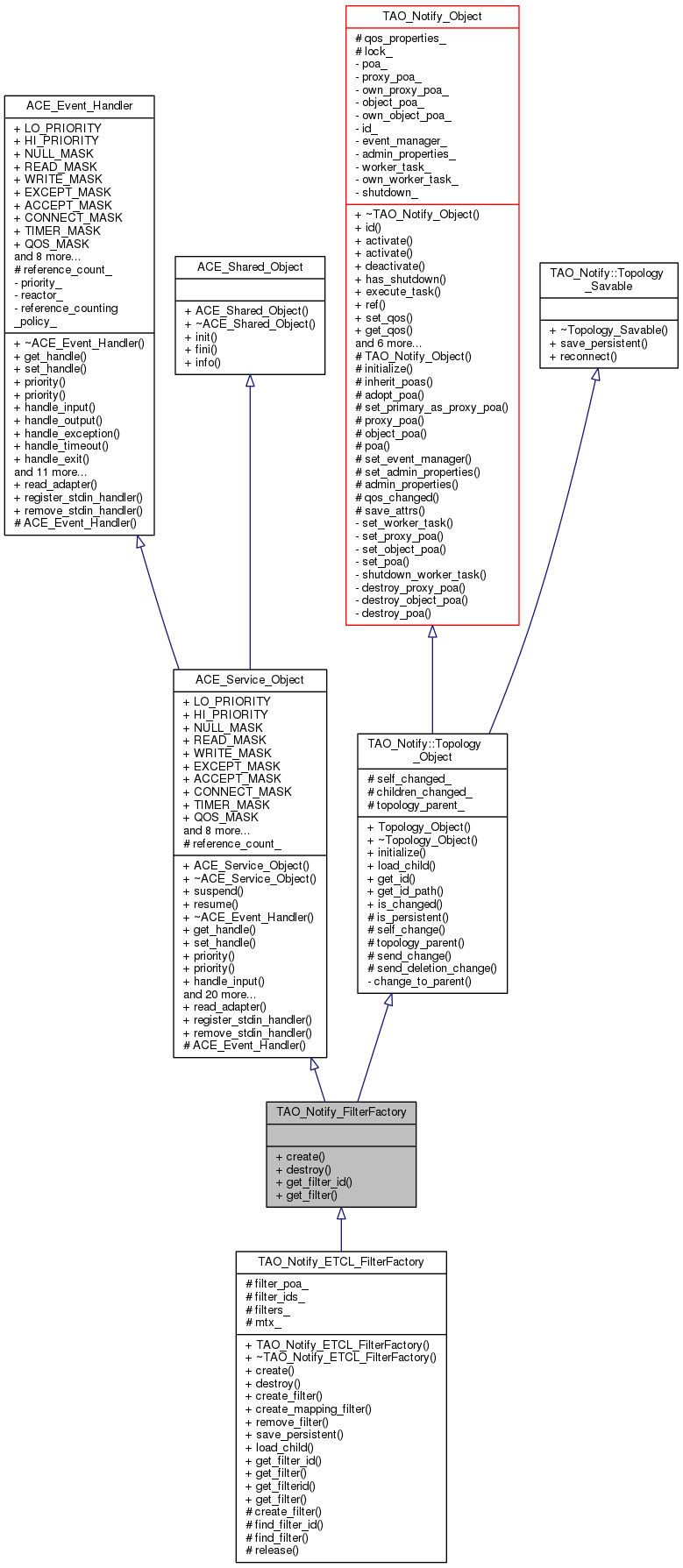

Inheritance diagram for TAO_Notify_FilterFactory:

Collaboration diagram for TAO_Notify_FilterFactory:

List of all members.

Public Member Functions
virtual CosNotifyFilter::FilterFactory_ptr	create (PortableServer::POA_ptr filter_poa)=0
virtual void	destroy (void)=0
virtual TAO_Notify_Object::ID	get_filter_id (CosNotifyFilter::Filter_ptr filter)=0
virtual CosNotifyFilter::Filter_ptr	get_filter (const TAO_Notify_Object::ID &id)=0
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed (void) const
	Is there an unsaved change for this object or its children?
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor.
ID	id (void) const
	This Object's ID.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id.
void	deactivate (void)
	Deactivate.
bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref (void)
	Get CORBA Ref.
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager.
virtual int	shutdown (void)
	Shutdown. Returns 1 if the shutdown was already run once before.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor.
virtual void	save_persistent (Topology_Saver &saver)=0
virtual void	reconnect (void)

Additional Inherited Members
Public Types inherited from ACE_Service_Object
typedef long	Reference_Count
Public Types inherited from ACE_Event_Handler
Static Public Member Functions inherited from ACE_Service_Object
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Service_Object
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Public Attributes inherited from ACE_Event_Handler
Protected Types inherited from ACE_Service_Object
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Types inherited from ACE_Event_Handler
Protected Member Functions inherited from ACE_Service_Object
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent (void) const
	Should this object be saved?
bool	self_change (void)
	Method to report change in this object.
Topology_Parent *	topology_parent () const
	pointer to our topological parent
bool	send_change (void)
	Handle details of propagating change.
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.
Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object (void)
	Constructor.
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_.
TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_.
TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us.
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties.
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_
Protected Attributes inherited from ACE_Event_Handler
Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent
bool	children_changed_
	true of any of this object's children changed since last save_persistent
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.
Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

---

Detailed Description

Service Object to obtain a CosNotifyFilter::FilterFactory reference.

---

Member Function Documentation

virtual CosNotifyFilter::FilterFactory_ptr TAO_Notify_FilterFactory::create ( PortableServer::POA_ptr  filter_poa )

pure virtual

Factory method to create a FilterFactory reference The Factory is activated in the default POA. The filters created are activated in the <filter_poa>.

Implemented in TAO_Notify_ETCL_FilterFactory.

virtual void TAO_Notify_FilterFactory::destroy ( void  )

pure virtual

Implemented in TAO_Notify_ETCL_FilterFactory.

virtual CosNotifyFilter::Filter_ptr TAO_Notify_FilterFactory::get_filter ( const TAO_Notify_Object::ID &  id )

pure virtual

Implemented in TAO_Notify_ETCL_FilterFactory.

virtual TAO_Notify_Object::ID TAO_Notify_FilterFactory::get_filter_id ( CosNotifyFilter::Filter_ptr  filter )

pure virtual

Implemented in TAO_Notify_ETCL_FilterFactory.

---

The documentation for this class was generated from the following file:

• FilterFactory.h
