Provide the base class which defines the interface for controlling an NT service. More...

#include <NT_Service.h>

Inheritance diagram for ACE_NT_Service:

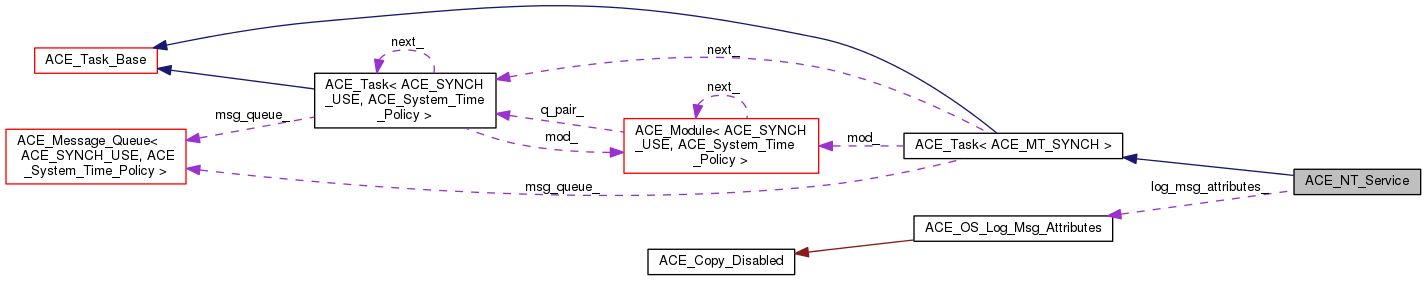

Collaboration diagram for ACE_NT_Service:

Public Member Functions
	ACE_NT_Service (DWORD start_timeout=ACE_NT_SERVICE_START_TIMEOUT, DWORD service_type=SERVICE_WIN32_OWN_PROCESS, DWORD controls_mask=SERVICE_ACCEPT_STOP)
	Constructor primarily for use when running the service.
	ACE_NT_Service (const ACE_TCHAR name, const ACE_TCHAR desc=0, DWORD start_timeout=ACE_NT_SERVICE_START_TIMEOUT, DWORD service_type=SERVICE_WIN32_OWN_PROCESS, DWORD controls_mask=SERVICE_ACCEPT_STOP)
virtual	~ACE_NT_Service (void)
virtual int	open (void *args=0)
virtual int	fini (void)
virtual int	svc (void)
virtual void	handle_control (DWORD control_code)
void	svc_handle (const SERVICE_STATUS_HANDLE new_svc_handle)
void	name (const ACE_TCHAR name, const ACE_TCHAR desc=0)
const ACE_TCHAR *	name (void) const
	Get the service name.
const ACE_TCHAR *	desc (void) const
	Get the service description.
void	host (const ACE_TCHAR *host)
	Sets the host machine.
const ACE_TCHAR *	host (void) const
	Get the host machine.
int	insert (DWORD start_type=SERVICE_DEMAND_START, DWORD error_control=SERVICE_ERROR_IGNORE, const ACE_TCHAR exe_path=0, const ACE_TCHAR group_name=0, LPDWORD tag_id=0, const ACE_TCHAR dependencies=0, const ACE_TCHAR account_name=0, const ACE_TCHAR *password=0, DWORD desired_access=SERVICE_ALL_ACCESS)
int	remove (void)
int	startup (DWORD startup)
	Sets the startup type for the service. Returns -1 on error, 0 on success.
DWORD	startup (void)
	Returns the current startup type.
void	capture_log_msg_attributes (void)
void	inherit_log_msg_attributes (void)
int	start_svc (ACE_Time_Value wait_time=0, DWORD svc_state=0, DWORD argc=0, const ACE_TCHAR **argv=0)
int	stop_svc (ACE_Time_Value wait_time=0, DWORD svc_state=0)
int	pause_svc (ACE_Time_Value wait_time=0, DWORD svc_state=0)
	Pause the service.
int	continue_svc (ACE_Time_Value wait_time=0, DWORD svc_state=0)
	Continue the service.
DWORD	state (ACE_Time_Value *wait_hint=0)
int	state (DWORD pstate, ACE_Time_Value wait_hint=0)
int	test_access (DWORD desired_access=SERVICE_ALL_ACCESS)
Public Member Functions inherited from ACE_Task< ACE_MT_SYNCH >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > mq=0)
virtual	~ACE_Task (void)
	Destructor.
ACE_Message_Queue < ACE_SYNCH_USE, ACE_System_Time_Policy > *	msg_queue (void)
	Gets the message queue associated with this task.
void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
	Sets the message queue associated with this task.
ACE_Time_Value_T < ACE_System_Time_Policy >	gettimeofday (void) const
void	set_time_policy (ACE_System_Time_Policyconst &time_policy)
int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)
int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)
int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)
int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)
int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)
ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	next (void)
	Get next Task pointer.
void	next (ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
	Set next Task pointer.
ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	sibling (void)
ACE_Module< ACE_SYNCH_USE, ACE_System_Time_Policy > *	module (void) const
	Return the Task's Module if there is one, else returns 0.
int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)
void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
	Manipulate watermarks.
void	dump (void) const
	Dump the state of an object.
Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)
	Constructor.
virtual	~ACE_Task_Base (void)
	Destructor.
virtual int	close (u_long flags=0)
	Default ACE_Task close routine.
virtual int	module_closed (void)
virtual int	put (ACE_Message_Block , ACE_Time_Value =0)
	Default ACE_Task put routine.
virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE\|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)
virtual int	wait (void)
	Wait for all threads running in a task to exit.
virtual int	suspend (void)
	Suspend a task.
virtual int	resume (void)
	Resume a suspended task.
int	grp_id (void) const
	Get the current group id.
void	grp_id (int)
	Set the current group id.
ACE_Thread_Manager *	thr_mgr (void) const
	Get the thread manager associated with this Task.
void	thr_mgr (ACE_Thread_Manager *)
	Set the thread manager associated with this Task.
int	is_reader (void) const
	True if queue is a reader, else false.
int	is_writer (void) const
	True if queue is a writer, else false.
size_t	thr_count (void) const
ACE_thread_t	last_thread (void) const
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor.
virtual	~ACE_Service_Object (void)
	Destructor.
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority (void) const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference (void)
	Increment reference count on the handler.
virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy.
Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)
	Constructor.
virtual	~ACE_Shared_Object (void)
	Destructor.
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
	Returns information on a service object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Public Attributes inherited from ACE_Task< ACE_MT_SYNCH >
ACE_Message_Queue < ACE_SYNCH_USE, ACE_System_Time_Policy > *	msg_queue_
	Queue of messages on the ACE_Task..
bool	delete_msg_queue_
	true if should delete Message_Queue, false otherwise.
ACE_Module< ACE_SYNCH_USE, ACE_System_Time_Policy > *	mod_
	Back-pointer to the enclosing module.
ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	next_
	Pointer to adjacent ACE_Task.

Protected Member Functions
int	report_status (DWORD new_status, DWORD time_hint=0)
SC_HANDLE	svc_sc_handle (void)
void	wait_for_service_state (DWORD desired_state, ACE_Time_Value *wait_time)
virtual void	stop_requested (DWORD control_code)
	Called by <handle_control> when a stop/shutdown was requested.
virtual void	pause_requested (DWORD control_code)
	Called by <handle_control> when a pause was requested.
virtual void	continue_requested (DWORD control_code)
	Called by <handle_control> when a continue was requested.
virtual void	interrogate_requested (DWORD control_code)
	Called by <handle_control> when a interrogate was requested.

Protected Attributes
DWORD	start_time_
	Estimate of init time needed.
SERVICE_STATUS_HANDLE	svc_handle_
	Service handle - doesn't need close.
SERVICE_STATUS	svc_status_
SC_HANDLE	svc_sc_handle_
	Service's SCM handle.
ACE_TCHAR *	name_
ACE_TCHAR *	desc_
ACE_TCHAR *	host_
ACE_OS_Log_Msg_Attributes	log_msg_attributes_
	ACE_Log_Msg attributes to inherit from the starting thread.

Detailed Description

Provide the base class which defines the interface for controlling an NT service.

NT Services can be implemented using the framework defined by the ACE_NT_Service class, and the macros defined in this file. Some quick refresher notes on NT Services:

The main program defines an array of entries describing the services offered. The ACE_NT_SERVICE_ENTRY macro can help with this.
For each service, a separate ServiceMain and Handler function need to be defined. These are taken care of by the ACE_NT_SERVICE_DEFINE macro.
When the main program/thread calls StartServiceCtrlDispatcher, NT creates a thread for each service, and runs the ServiceMain function for the service in that new thread. When that thread exits, the service is gone.

To use this facility, you could derive a class from ACE_Service_Object (if you want to start via ACE's service configurator), or use any other class to run when the image starts (assuming that NT runs the image). You must set up an NT SERVICE_TABLE_ENTRY array to define your service(s). You can use the ACE_NT_SERVICE_... macros defined below for this.

A SERVICE_TABLE might look like this: ACE_NT_SERVICE_REFERENCE(Svc1); // If service is in another file SERVICE_TABLE_ENTRY myServices[] = { ACE_NT_SERVICE_ENTRY ("MyNeatService", Svc1), { 0, 0 } };

In the file where your service(s) are implemented, use the ACE_NT_SERVICE_DEFINE macro to set up the following:

A pointer to the service's implementation object (must be derived from ACE_NT_Service).
The service's Handler function (forwards all requests to the ACE_NT_Service-derived object's handle_control function).
The service's ServiceMain function. Creates a new instance of the ACE_NT_Service-derived class SVCCLASS, unless one has been created already.

If you are using all the default constructor values, you can let the generated ServiceMain function create the object, else you need to create it by hand before calling StartServiceCtrlDispatcher. Set the pointer so ServiceMain won't create another one. Another reason you may want to do the object creation yourself is if you want to also implement suspend and resume functions (the ones inherited from ACE_Service_Object) to do something intelligent to the services which are running, like call their handle_control functions to request suspend and resume actions, similar to what NT would do if a Services control panel applet would do if the user clicks on Suspend.

Constructor & Destructor Documentation

ACE_NT_Service::ACE_NT_Service	(	DWORD	start_timeout = `ACE_NT_SERVICE_START_TIMEOUT`,
		DWORD	service_type = `SERVICE_WIN32_OWN_PROCESS`,
		DWORD	controls_mask = `SERVICE_ACCEPT_STOP`
	)

inline

Constructor primarily for use when running the service.

ACE_NT_Service::ACE_NT_Service	(	const ACE_TCHAR *	name,
		const ACE_TCHAR *	desc = `0`,
		DWORD	start_timeout = `ACE_NT_SERVICE_START_TIMEOUT`,
		DWORD	service_type = `SERVICE_WIN32_OWN_PROCESS`,
		DWORD	controls_mask = `SERVICE_ACCEPT_STOP`
	)

inline

Constructor primarily for use when inserting/removing/controlling the service.

ACE_NT_Service::~ACE_NT_Service ( void )

virtual

Member Function Documentation

void ACE_NT_Service::capture_log_msg_attributes ( void )

Set the ACE_Log_Msg attributes that the service thread will use to initialize its ACE_Log_Msg instance. This is how the initiating thread's logging ostream, etc. get into the service thread. The logging attributes in effect when this function is called are what the service thread will have at its disposal when it starts; therefore, the main thread should set up logging options for the process, and call this function just before calling the StartServiceCtrlDispatcher function.

void ACE_NT_Service::continue_requested ( DWORD control_code )

protectedvirtual

Called by <handle_control> when a continue was requested.

int ACE_NT_Service::continue_svc	(	ACE_Time_Value *	wait_time = `0`,
		DWORD *	svc_state = `0`
	)

Continue the service.

const ACE_TCHAR * ACE_NT_Service::desc ( void ) const

inline

Get the service description.

int ACE_NT_Service::fini ( void )

virtual

Hook called when terminating the service. Inherited from ACE_Shared_Object. Default implementation sets the service status to SERVICE_STOPPED.

Reimplemented from ACE_Shared_Object.

void ACE_NT_Service::handle_control ( DWORD control_code )

virtual

This function is called in response to a request from the Service Dispatcher. It must interact with the <svc> function to effect the requested control operation. The default implementation handles all requests as follows: SERVICE_CONTROL_STOP: set stop pending, set cancel flag SERVICE_CONTROL_PAUSE: set pause pending, <suspend>, set paused SERVICE_CONTROL_CONTINUE: set continue pending, <resume>, set running SERVICE_CONTROL_INTERROGATE: reports current status SERVICE_CONTROL_SHUTDOWN: same as SERVICE_CONTROL_STOP.

void ACE_NT_Service::host ( const ACE_TCHAR * host )

Sets the host machine.

const ACE_TCHAR * ACE_NT_Service::host ( void ) const

inline

Get the host machine.

void ACE_NT_Service::inherit_log_msg_attributes ( void )

Set the ACE_Log_Msg attributes in the current thread to those saved in the most recent call to capture_log_msg_attributes(). This function should be called from the service's service thread. Ideally, it is the first method called to be sure that any logging done is incorporated correctly into the process's established logging setup.

int ACE_NT_Service::insert	(	DWORD	start_type = `SERVICE_DEMAND_START`,
		DWORD	error_control = `SERVICE_ERROR_IGNORE`,
		const ACE_TCHAR *	exe_path = `0`,
		const ACE_TCHAR *	group_name = `0`,
		LPDWORD	tag_id = `0`,
		const ACE_TCHAR *	dependencies = `0`,
		const ACE_TCHAR *	account_name = `0`,
		const ACE_TCHAR *	password = `0`,
		DWORD	desired_access = `SERVICE_ALL_ACCESS`
	)

Insert (create) the service in the NT Service Control Manager, with the given creation values. exe_path defaults to the path name of the program that calls the function. All other 0-defaulted arguments pass 0 into the service creation, taking NT_specified defaults. Returns -1 on error, 0 on success.

void ACE_NT_Service::interrogate_requested ( DWORD control_code )

protectedvirtual

Called by <handle_control> when a interrogate was requested.

void ACE_NT_Service::name	(	const ACE_TCHAR *	name,
		const ACE_TCHAR *	desc = `0`
	)

Sets the name and description for the service. If desc is 0, it takes the same value as name.

const ACE_TCHAR * ACE_NT_Service::name ( void ) const

inline

Get the service name.

Reimplemented from ACE_Task< ACE_MT_SYNCH >.

int ACE_NT_Service::open ( void * args = 0 )

virtual

Hook called to open the service. By default, sets the service status to SERVICE_START_PENDING, calls the svc() method, interprets and sets the service status, and returns.

Reimplemented from ACE_Task_Base.

void ACE_NT_Service::pause_requested ( DWORD control_code )

protectedvirtual

Called by <handle_control> when a pause was requested.

int ACE_NT_Service::pause_svc	(	ACE_Time_Value *	wait_time = `0`,
		DWORD *	svc_state = `0`
	)

Pause the service.

int ACE_NT_Service::remove ( void )

Remove the service from the NT Service Control Manager. Returns -1 on error, 0 on success. This just affects the SCM and registry - the can and will keep running fine if it is already running.

int ACE_NT_Service::report_status	(	DWORD	new_status,
		DWORD	time_hint = `0`
	)

protected

int ACE_NT_Service::start_svc	(	ACE_Time_Value *	wait_time = `0`,
		DWORD *	svc_state = `0`,
		DWORD	argc = `0`,
		const ACE_TCHAR **	argv = `0`
	)

Start the service (must have been inserted before). wait_time is the time to wait for the service to reach a steady state before returning. If it is 0, the function waits as long as it takes for the service to reach the 'running' state, or gets stuck in some other state, or exits. If wait_time is supplied, it is updated on return to hold the service's last reported wait hint. svc_state can be used to receive the state which the service settled in. If the value is 0, the service never ran. argc/argv are passed to the service's ServiceMain function when it starts. Returns 0 for success, -1 for error.

int ACE_NT_Service::startup ( DWORD startup )

Sets the startup type for the service. Returns -1 on error, 0 on success.

DWORD ACE_NT_Service::startup ( void )

Returns the current startup type.

DWORD ACE_NT_Service::state ( ACE_Time_Value * wait_hint = 0 )

Get the current state for the service. If <wait_hint> is not 0, it receives the service's reported wait hint. Note that this function returns 0 on failure (not -1 as is usual in ACE). A zero return would (probably) only be returned if there is either no service with the given name in the SCM database, or the caller does not have sufficient rights to access the service state. The set of valid service state values are all greater than 0.

int ACE_NT_Service::state	(	DWORD *	pstate,
		ACE_Time_Value *	wait_hint = `0`
	)

A version of <state> that returns -1 for failure, 0 for success. The DWORD pointed to by pstate receives the state value.

void ACE_NT_Service::stop_requested ( DWORD control_code )

protectedvirtual

Called by <handle_control> when a stop/shutdown was requested.

int ACE_NT_Service::stop_svc	(	ACE_Time_Value *	wait_time = `0`,
		DWORD *	svc_state = `0`
	)

Requests the service to stop. Will wait up to wait_time for the service to actually stop. If not specified, the function waits until the service either stops or gets stuck in some other state before it stops. If <svc_state> is specified, it receives the last reported state of the service. Returns 0 if the request was made successfully, -1 if not.

int ACE_NT_Service::svc ( void )

inlinevirtual

The actual service implementation. This function need not be overridden by applications that are just using SCM capabilities, but must be by subclasses when actually running the service. It is expected that this function will set the status to RUNNING.

Reimplemented from ACE_Task_Base.

void ACE_NT_Service::svc_handle ( const SERVICE_STATUS_HANDLE new_svc_handle )

inline

Set the svc_handle_ member. This is only a public function because the macro-generated service function calls it.

SC_HANDLE ACE_NT_Service::svc_sc_handle ( void )

protected

Return the svc_sc_handle_ member. If the member is null, it retrieves the handle from the Service Control Manager and caches it.

int ACE_NT_Service::test_access ( DWORD desired_access = SERVICE_ALL_ACCESS )

Test access to the object's service in the SCM. The service must already have been inserted in the SCM database. This function has no affect on the service itself. Returns 0 if the specified access is allowed, -1 otherwise (either the access is denied, or there is a problem with the service's definition - check ACE_OS::last_error to get the specific error indication.

void ACE_NT_Service::wait_for_service_state	(	DWORD	desired_state,
		ACE_Time_Value *	wait_time
	)

protected

Waits for the service to reach <desired_state> or get (apparently) stuck before it reaches that state. Will wait at most wait_time to get to the desired state. If wait_time is 0, then the function keeps waiting until the desired state is reached or the service doesn't update its state any further. The svc_status_ class member is updated upon return.

Member Data Documentation

ACE_NT_Service::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Task< ACE_MT_SYNCH >.

ACE_TCHAR* ACE_NT_Service::desc_

protected

ACE_TCHAR* ACE_NT_Service::host_

protected

ACE_OS_Log_Msg_Attributes ACE_NT_Service::log_msg_attributes_

protected

ACE_Log_Msg attributes to inherit from the starting thread.

ACE_TCHAR* ACE_NT_Service::name_

protected

DWORD ACE_NT_Service::start_time_

protected

Estimate of init time needed.

SERVICE_STATUS_HANDLE ACE_NT_Service::svc_handle_

protected

Service handle - doesn't need close.

SC_HANDLE ACE_NT_Service::svc_sc_handle_

protected

Service's SCM handle.

SERVICE_STATUS ACE_NT_Service::svc_status_

protected

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
