The UIOP-specific bridge class for the concrete acceptor. More...

#include <UIOP_Acceptor.h>

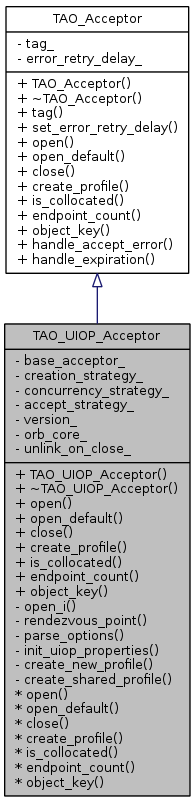

Inheritance diagram for TAO_UIOP_Acceptor:

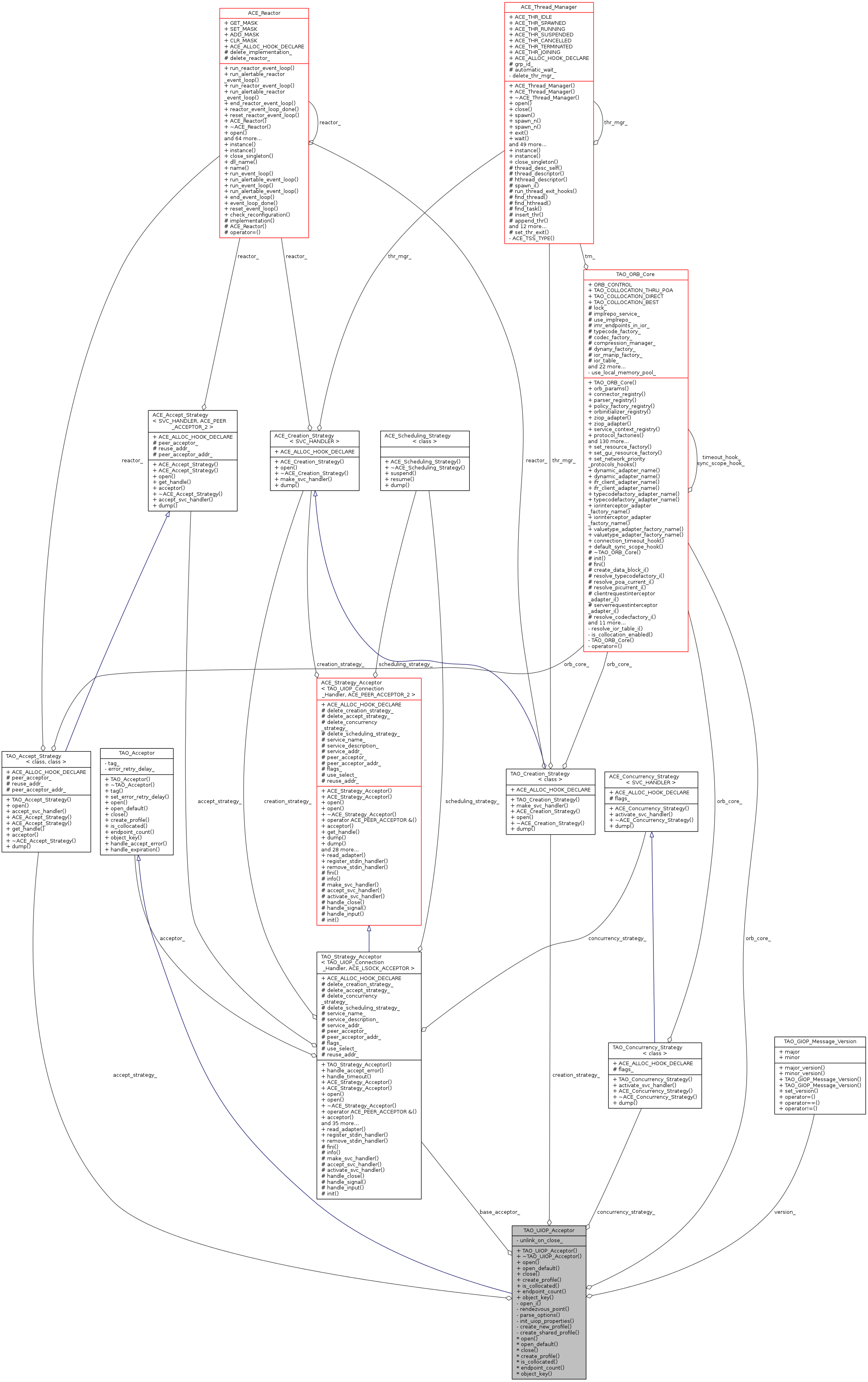

Collaboration diagram for TAO_UIOP_Acceptor:

Public Types
typedef TAO_Strategy_Acceptor < TAO_UIOP_Connection_Handler, ACE_LSOCK_ACCEPTOR >	TAO_UIOP_BASE_ACCEPTOR

typedef TAO_Creation_Strategy < TAO_UIOP_Connection_Handler >	TAO_UIOP_CREATION_STRATEGY

typedef TAO_Concurrency_Strategy < TAO_UIOP_Connection_Handler >	TAO_UIOP_CONCURRENCY_STRATEGY

typedef TAO_Accept_Strategy < TAO_UIOP_Connection_Handler, ACE_LSOCK_ACCEPTOR >	TAO_UIOP_ACCEPT_STRATEGY

Public Member Functions
	TAO_UIOP_Acceptor (void)
	Create Acceptor object using addr.

virtual	~TAO_UIOP_Acceptor (void)
	Destructor.

The TAO_Acceptor Methods
Please check the documentation in Transport_Acceptor.h for details.
virtual int	open (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char address, const char options=0)

virtual int	open_default (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char *options=0)

virtual int	close (void)

virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

virtual int	is_collocated (const TAO_Endpoint *endpoint)

virtual CORBA::ULong	endpoint_count (void)

virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)

Public Member Functions inherited from TAO_Acceptor
	TAO_Acceptor (CORBA::ULong tag)

virtual	~TAO_Acceptor (void)

CORBA::ULong	tag (void) const

void	set_error_retry_delay (time_t delay)

int	handle_accept_error (ACE_Event_Handler *base_acceptor)

int	handle_expiration (ACE_Event_Handler *base_acceptor)

Private Member Functions
int	open_i (const char rendezvous, ACE_Reactor reactor)
	Implement the common part of the open*() methods.

void	rendezvous_point (ACE_UNIX_Addr &, const char *rendezvous)

int	parse_options (const char *options)
	Parse protocol specific options.

int	init_uiop_properties (void)

int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
	Create a UIOP profile representing this acceptor.

int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
	Add the endpoints on this acceptor to a shared profile.

Private Attributes
TAO_UIOP_BASE_ACCEPTOR	base_acceptor_
	The concrete acceptor, as a pointer to its base class.

TAO_UIOP_CREATION_STRATEGY *	creation_strategy_

TAO_UIOP_CONCURRENCY_STRATEGY *	concurrency_strategy_

TAO_UIOP_ACCEPT_STRATEGY *	accept_strategy_

TAO_GIOP_Message_Version	version_
	The GIOP version for this endpoint.

TAO_ORB_Core *	orb_core_
	ORB Core.

bool	unlink_on_close_

Detailed Description

The UIOP-specific bridge class for the concrete acceptor.

Member Typedef Documentation

typedef TAO_Accept_Strategy<TAO_UIOP_Connection_Handler, ACE_LSOCK_ACCEPTOR> TAO_UIOP_Acceptor::TAO_UIOP_ACCEPT_STRATEGY

typedef TAO_Strategy_Acceptor<TAO_UIOP_Connection_Handler, ACE_LSOCK_ACCEPTOR> TAO_UIOP_Acceptor::TAO_UIOP_BASE_ACCEPTOR

typedef TAO_Concurrency_Strategy<TAO_UIOP_Connection_Handler> TAO_UIOP_Acceptor::TAO_UIOP_CONCURRENCY_STRATEGY

typedef TAO_Creation_Strategy<TAO_UIOP_Connection_Handler> TAO_UIOP_Acceptor::TAO_UIOP_CREATION_STRATEGY

Constructor & Destructor Documentation

TAO_UIOP_Acceptor::TAO_UIOP_Acceptor ( void )

Create Acceptor object using addr.

TAO_UIOP_Acceptor::~TAO_UIOP_Acceptor ( void )

virtual

Destructor.

Member Function Documentation

int TAO_UIOP_Acceptor::close ( void )

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::create_new_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

private

Create a UIOP profile representing this acceptor.

int TAO_UIOP_Acceptor::create_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::create_shared_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

private

Add the endpoints on this acceptor to a shared profile.

CORBA::ULong TAO_UIOP_Acceptor::endpoint_count ( void )

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::init_uiop_properties ( void )

private

Obtains uiop properties that must be used by this acceptor, i.e., initializes <uiop_properties_>.

int TAO_UIOP_Acceptor::is_collocated ( const TAO_Endpoint * endpoint )

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::object_key	(	IOP::TaggedProfile &	profile,
		TAO::ObjectKey &	key
	)

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::open	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	address,
		const char *	options = `0`
	)

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::open_default	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	options = `0`
	)

virtual

Implements TAO_Acceptor.

int TAO_UIOP_Acceptor::open_i	(	const char *	rendezvous,
		ACE_Reactor *	reactor
	)

private

Implement the common part of the open*() methods.

int TAO_UIOP_Acceptor::parse_options ( const char * options )

private

Parse protocol specific options.

void TAO_UIOP_Acceptor::rendezvous_point	(	ACE_UNIX_Addr &	addr,
		const char *	rendezvous
	)

private

Set the rendezvous point and verify that it is valid (e.g. wasn't truncated because it was too long).

Member Data Documentation

TAO_UIOP_ACCEPT_STRATEGY* TAO_UIOP_Acceptor::accept_strategy_

private

TAO_UIOP_BASE_ACCEPTOR TAO_UIOP_Acceptor::base_acceptor_

private

The concrete acceptor, as a pointer to its base class.

TAO_UIOP_CONCURRENCY_STRATEGY* TAO_UIOP_Acceptor::concurrency_strategy_

private

TAO_UIOP_CREATION_STRATEGY* TAO_UIOP_Acceptor::creation_strategy_

private

TAO_ORB_Core* TAO_UIOP_Acceptor::orb_core_

private

ORB Core.

bool TAO_UIOP_Acceptor::unlink_on_close_

private

Flag that determines whether or not the rendezvous point should be unlinked on close. This is really only used when an error occurs.

TAO_GIOP_Message_Version TAO_UIOP_Acceptor::version_

private

The GIOP version for this endpoint.

The documentation for this class was generated from the following files:
