The SHMIOP-specific bridge class for the concrete acceptor. More...

#include <SHMIOP_Acceptor.h>

Inheritance diagram for TAO_SHMIOP_Acceptor:

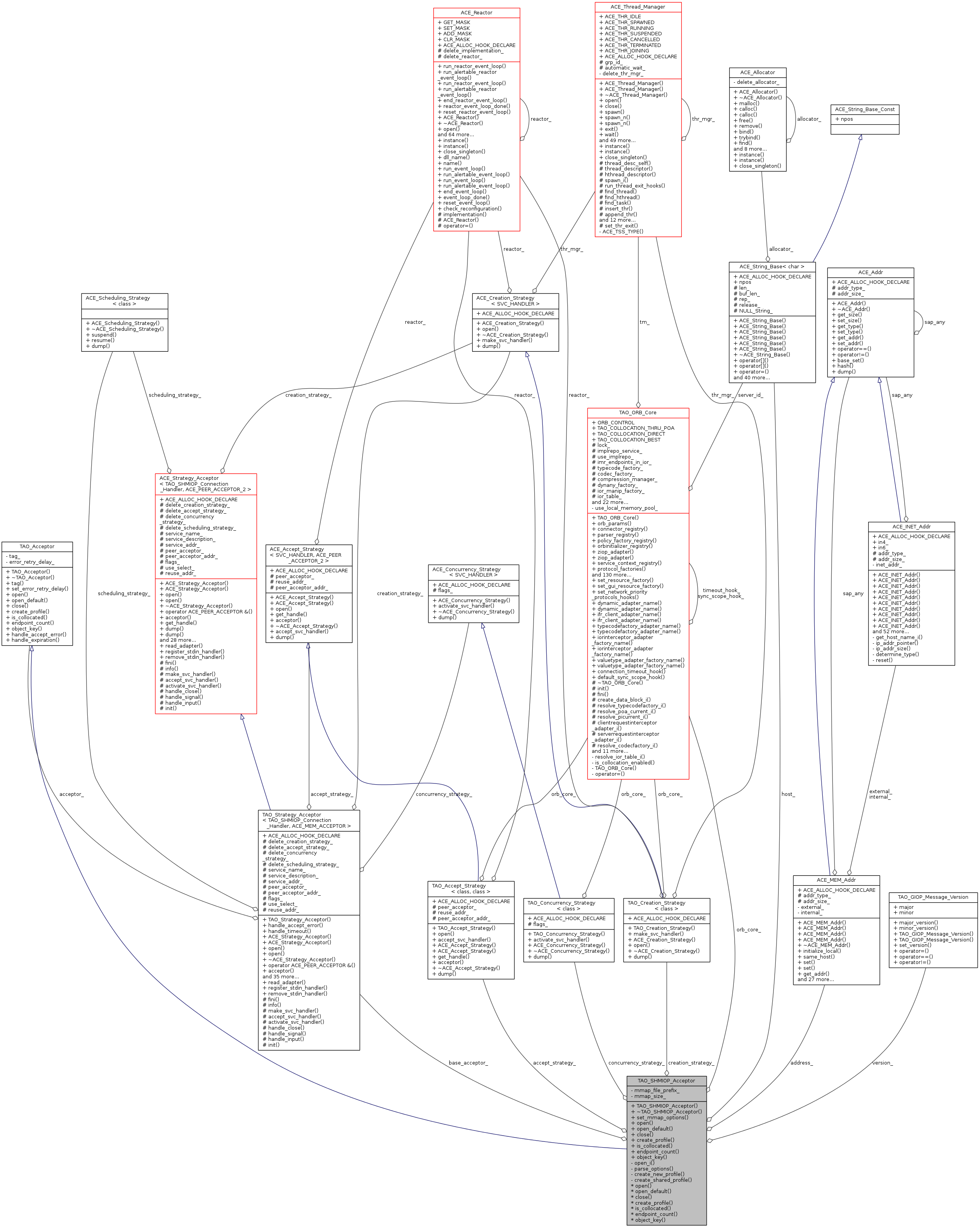

Collaboration diagram for TAO_SHMIOP_Acceptor:

Public Types
typedef TAO_Strategy_Acceptor < TAO_SHMIOP_Connection_Handler, ACE_MEM_ACCEPTOR >	TAO_SHMIOP_BASE_ACCEPTOR

typedef TAO_Creation_Strategy < TAO_SHMIOP_Connection_Handler >	TAO_SHMIOP_CREATION_STRATEGY

typedef TAO_Concurrency_Strategy < TAO_SHMIOP_Connection_Handler >	TAO_SHMIOP_CONCURRENCY_STRATEGY

typedef TAO_Accept_Strategy < TAO_SHMIOP_Connection_Handler, ACE_MEM_ACCEPTOR >	TAO_SHMIOP_ACCEPT_STRATEGY

Public Member Functions
	TAO_SHMIOP_Acceptor (void)
	Constructor.

	~TAO_SHMIOP_Acceptor (void)
	Destructor.

int	set_mmap_options (const ACE_TCHAR *prefix, ACE_OFF_T size)

The TAO_Acceptor Methods
Please check the documentation in Transport_Acceptor.h for details.
virtual int	open (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char port, const char options=0)

virtual int	open_default (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char *options=0)

virtual int	close (void)

virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

virtual int	is_collocated (const TAO_Endpoint *endpoint)

virtual CORBA::ULong	endpoint_count (void)

virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)

Public Member Functions inherited from TAO_Acceptor
	TAO_Acceptor (CORBA::ULong tag)

virtual	~TAO_Acceptor (void)

CORBA::ULong	tag (void) const

void	set_error_retry_delay (time_t delay)

int	handle_accept_error (ACE_Event_Handler *base_acceptor)

int	handle_expiration (ACE_Event_Handler *base_acceptor)

Protected Attributes
ACE_CString	host_

ACE_MEM_Addr	address_
	A local endpoint.

TAO_GIOP_Message_Version	version_
	The GIOP version for this endpoint.

TAO_ORB_Core *	orb_core_
	ORB Core.

Private Member Functions
int	open_i (TAO_ORB_Core orb_core, ACE_Reactor reactor)
	Implement the common part of the open*() methods.

virtual int	parse_options (const char *options)
	Parse protocol specific options.

int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
	Create a SHMIOP profile representing this acceptor.

int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
	Add the endpoints on this acceptor to a shared profile.

Private Attributes
TAO_SHMIOP_BASE_ACCEPTOR	base_acceptor_
	The concrete acceptor, as a pointer to it's base class.

TAO_SHMIOP_CREATION_STRATEGY *	creation_strategy_
	Acceptor strategies.

TAO_SHMIOP_CONCURRENCY_STRATEGY *	concurrency_strategy_

TAO_SHMIOP_ACCEPT_STRATEGY *	accept_strategy_

const ACE_TCHAR *	mmap_file_prefix_
	Determine the prefix (include path name) of the mmap file.

ACE_OFF_T	mmap_size_

Detailed Description

The SHMIOP-specific bridge class for the concrete acceptor.

Member Typedef Documentation

typedef TAO_Accept_Strategy<TAO_SHMIOP_Connection_Handler, ACE_MEM_ACCEPTOR> TAO_SHMIOP_Acceptor::TAO_SHMIOP_ACCEPT_STRATEGY

typedef TAO_Strategy_Acceptor<TAO_SHMIOP_Connection_Handler, ACE_MEM_ACCEPTOR> TAO_SHMIOP_Acceptor::TAO_SHMIOP_BASE_ACCEPTOR

typedef TAO_Concurrency_Strategy<TAO_SHMIOP_Connection_Handler> TAO_SHMIOP_Acceptor::TAO_SHMIOP_CONCURRENCY_STRATEGY

typedef TAO_Creation_Strategy<TAO_SHMIOP_Connection_Handler> TAO_SHMIOP_Acceptor::TAO_SHMIOP_CREATION_STRATEGY

Constructor & Destructor Documentation

TAO_SHMIOP_Acceptor::TAO_SHMIOP_Acceptor ( void )

Constructor.

TAO_SHMIOP_Acceptor::~TAO_SHMIOP_Acceptor ( void )

Destructor.

Member Function Documentation

int TAO_SHMIOP_Acceptor::close ( void )

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::create_new_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

private

Create a SHMIOP profile representing this acceptor.

int TAO_SHMIOP_Acceptor::create_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::create_shared_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

private

Add the endpoints on this acceptor to a shared profile.

CORBA::ULong TAO_SHMIOP_Acceptor::endpoint_count ( void )

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::is_collocated ( const TAO_Endpoint * endpoint )

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::object_key	(	IOP::TaggedProfile &	profile,
		TAO::ObjectKey &	key
	)

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::open	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	port,
		const char *	options = `0`
	)

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::open_default	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	options = `0`
	)

virtual

Implements TAO_Acceptor.

int TAO_SHMIOP_Acceptor::open_i	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor
	)

private

Implement the common part of the open*() methods.

int TAO_SHMIOP_Acceptor::parse_options ( const char * options )

privatevirtual

Parse protocol specific options.

int TAO_SHMIOP_Acceptor::set_mmap_options	(	const ACE_TCHAR *	prefix,
		ACE_OFF_T	size
	)

Set the MMAP options the MEM_Stream this acceptor creates will use.

Member Data Documentation

TAO_SHMIOP_ACCEPT_STRATEGY* TAO_SHMIOP_Acceptor::accept_strategy_

private

ACE_MEM_Addr TAO_SHMIOP_Acceptor::address_

protected

A local endpoint.

TAO_SHMIOP_BASE_ACCEPTOR TAO_SHMIOP_Acceptor::base_acceptor_

private

The concrete acceptor, as a pointer to it's base class.

TAO_SHMIOP_CONCURRENCY_STRATEGY* TAO_SHMIOP_Acceptor::concurrency_strategy_

private

TAO_SHMIOP_CREATION_STRATEGY* TAO_SHMIOP_Acceptor::creation_strategy_

private

Acceptor strategies.

ACE_CString TAO_SHMIOP_Acceptor::host_

protected

Cache the information about the endpoint serviced by this acceptor.

Todo:: There may in fact be multiple hostnames for this endpoint. For example it the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface.

const ACE_TCHAR* TAO_SHMIOP_Acceptor::mmap_file_prefix_

private

Determine the prefix (include path name) of the mmap file.

ACE_OFF_T TAO_SHMIOP_Acceptor::mmap_size_

private

Determine the minimum size of mmap file. This dictate the maximum size of a CORBA method invocation.

TAO_ORB_Core* TAO_SHMIOP_Acceptor::orb_core_

protected

ORB Core.

TAO_GIOP_Message_Version TAO_SHMIOP_Acceptor::version_

protected

The GIOP version for this endpoint.

The documentation for this class was generated from the following files:
