This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <COIOP_Profile.h>

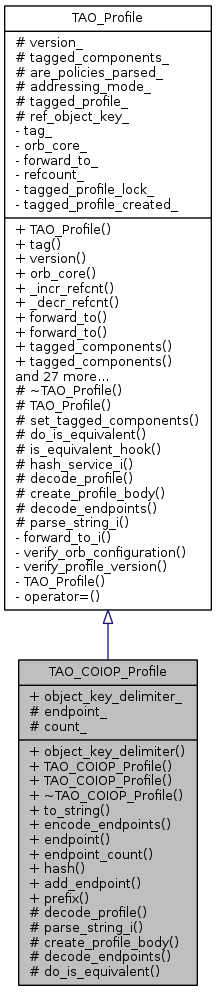

Inheritance diagram for TAO_COIOP_Profile:

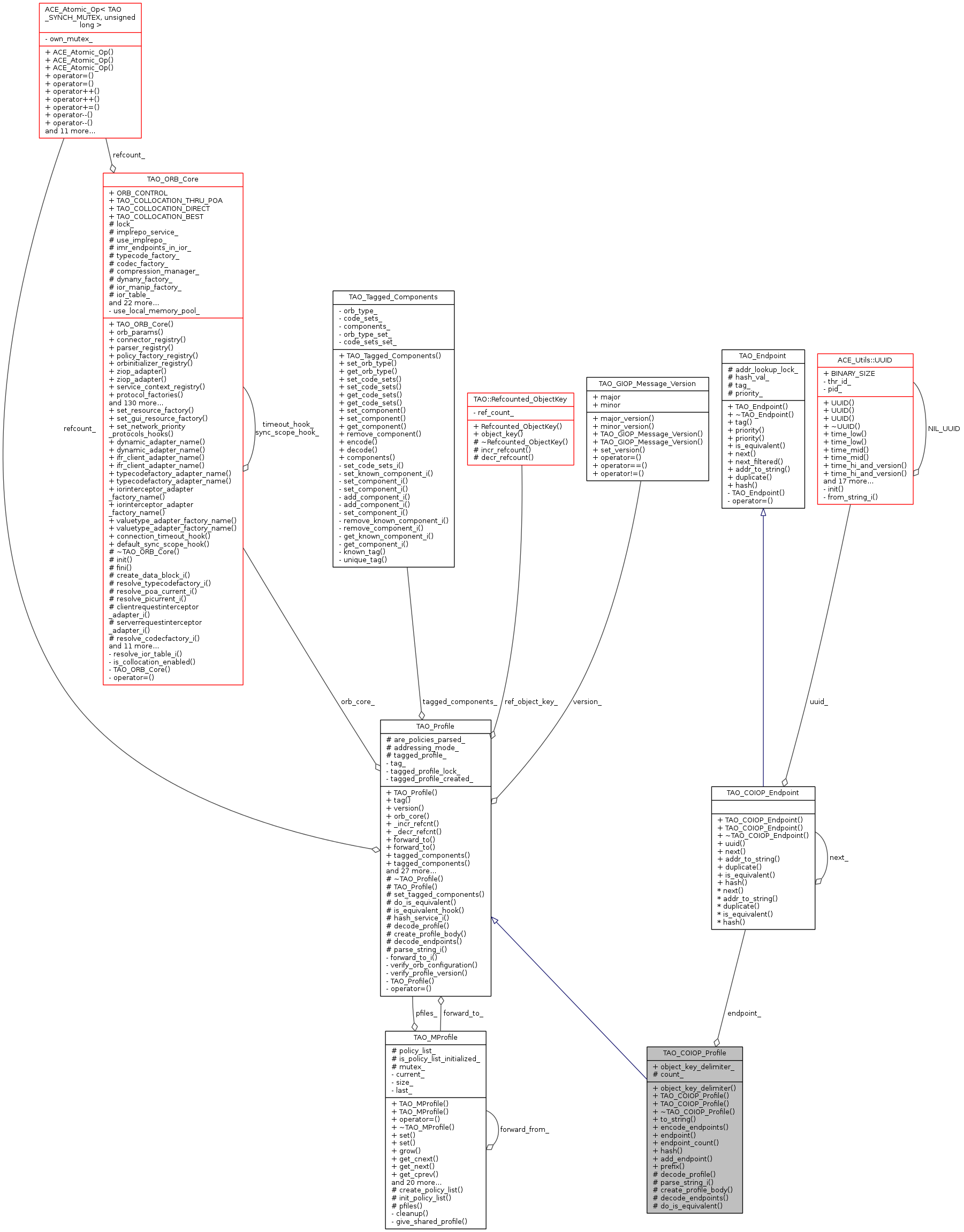

Collaboration diagram for TAO_COIOP_Profile:

Public Member Functions
virtual char	object_key_delimiter (void) const

	TAO_COIOP_Profile (const ACE_Utils::UUID &uuid, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)

	TAO_COIOP_Profile (TAO_ORB_Core *orb_core)
	Profile constructor, default.

	~TAO_COIOP_Profile (void)
	Destructor is to be called only through <_decr_refcnt>.

virtual char *	to_string (void)
	Template methods. Please tao/Profile.h for documentation.

virtual int	encode_endpoints (void)

virtual TAO_Endpoint *	endpoint (void)

virtual CORBA::ULong	endpoint_count (void) const

virtual CORBA::ULong	hash (CORBA::ULong max)

void	add_endpoint (TAO_COIOP_Endpoint *endp)

Public Member Functions inherited from TAO_Profile
	TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO_GIOP_Message_Version &version)

CORBA::ULong	tag (void) const

const TAO_GIOP_Message_Version &	version (void) const

TAO_ORB_Core *	orb_core (void) const

unsigned long	_incr_refcnt (void)

unsigned long	_decr_refcnt (void)

void	forward_to (TAO_MProfile *mprofiles)

TAO_MProfile *	forward_to (void)

const TAO_Tagged_Components &	tagged_components (void) const

TAO_Tagged_Components &	tagged_components (void)

void	add_tagged_component (const IOP::TaggedComponent &component)

CORBA::Short	addressing_mode (void) const

const TAO::ObjectKey &	object_key (void) const

TAO::ObjectKey *	_key (void) const

virtual int	encode (TAO_OutputCDR &stream) const

virtual int	decode (TAO_InputCDR &cdr)

IOP::TaggedProfile *	create_tagged_profile (void)

virtual void	policies (CORBA::PolicyList *policy_list)

virtual void	get_policies (CORBA::PolicyList &policy_list)

virtual int	supports_multicast (void) const

virtual bool	supports_non_blocking_oneways (void) const

virtual void	addressing_mode (CORBA::Short addr_mode)

virtual void	parse_string (const char *string)

virtual int	encode_alternate_endpoints (void)

virtual TAO_Endpoint *	base_endpoint (void)

TAO_Endpoint *	first_filtered_endpoint (void)

TAO_Endpoint *	next_filtered_endpoint (TAO_Endpoint *source)

virtual void	remove_generic_endpoint (TAO_Endpoint *ep)

virtual void	add_generic_endpoint (TAO_Endpoint *ep)

CORBA::Boolean	is_equivalent (const TAO_Profile *other_profile)

CORBA::Boolean	compare_key (const TAO_Profile *other) const

Static Public Member Functions
static const char *	prefix (void)
	Return the char string prefix.

Static Public Attributes
static const char	object_key_delimiter_ = '/'
	The object key delimiter that COIOP uses or expects.

Protected Member Functions
virtual int	decode_profile (TAO_InputCDR &cdr)
	Template methods. Please see tao/Profile.h for documentation.

virtual void	parse_string_i (const char *string)

virtual void	create_profile_body (TAO_OutputCDR &cdr) const

virtual int	decode_endpoints (void)

virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)

Protected Member Functions inherited from TAO_Profile
virtual	~TAO_Profile (void)

	TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO::ObjectKey &key, const TAO_GIOP_Message_Version &version)

void	set_tagged_components (TAO_OutputCDR &cdr)

virtual TAO_Service_Callbacks::Profile_Equivalence	is_equivalent_hook (const TAO_Profile *other)

CORBA::ULong	hash_service_i (CORBA::ULong m)

Protected Attributes
TAO_COIOP_Endpoint	endpoint_

CORBA::ULong	count_
	Number of endpoints in the list headed by <endpoint_>.

Protected Attributes inherited from TAO_Profile
TAO_GIOP_Message_Version	version_

TAO_Tagged_Components	tagged_components_

CORBA::Boolean	are_policies_parsed_

CORBA::Short	addressing_mode_

IOP::TaggedProfile *	tagged_profile_

TAO::Refcounted_ObjectKey *	ref_object_key_

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the COIOP profile as specified in the CORBA specification.

Constructor & Destructor Documentation

TAO_COIOP_Profile::TAO_COIOP_Profile	(	const ACE_Utils::UUID &	uuid,
		const TAO::ObjectKey &	object_key,
		const TAO_GIOP_Message_Version &	version,
		TAO_ORB_Core *	orb_core
	)

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_COIOP_Profile::TAO_COIOP_Profile ( TAO_ORB_Core * orb_core )

Profile constructor, default.

TAO_COIOP_Profile::~TAO_COIOP_Profile ( void )

Destructor is to be called only through <_decr_refcnt>.

Member Function Documentation

void TAO_COIOP_Profile::add_endpoint ( TAO_COIOP_Endpoint * endp )

Add <endp> to this profile's list of endpoints (it is inserted next to the head of the list). This profiles takes ownership of <endp>.

void TAO_COIOP_Profile::create_profile_body ( TAO_OutputCDR & cdr ) const

protectedvirtual

Implements TAO_Profile.

int TAO_COIOP_Profile::decode_endpoints ( void )

protectedvirtual

Implements TAO_Profile.

int TAO_COIOP_Profile::decode_profile ( TAO_InputCDR & cdr )

protectedvirtual

Template methods. Please see tao/Profile.h for documentation.

Implements TAO_Profile.

CORBA::Boolean TAO_COIOP_Profile::do_is_equivalent ( const TAO_Profile * other_profile )

protectedvirtual

Implements TAO_Profile.

int TAO_COIOP_Profile::encode_endpoints ( void )

virtual

Implements TAO_Profile.

TAO_Endpoint * TAO_COIOP_Profile::endpoint ( void )

virtual

Implements TAO_Profile.

CORBA::ULong TAO_COIOP_Profile::endpoint_count ( void ) const

virtual

Implements TAO_Profile.

CORBA::ULong TAO_COIOP_Profile::hash ( CORBA::ULong max )

virtual

Implements TAO_Profile.

char TAO_COIOP_Profile::object_key_delimiter ( void ) const

virtual

Implements TAO_Profile.

void TAO_COIOP_Profile::parse_string_i ( const char * string )

protectedvirtual

Implements TAO_Profile.

const char * TAO_COIOP_Profile::prefix ( void )

static

Return the char string prefix.

char * TAO_COIOP_Profile::to_string ( void )

virtual

Template methods. Please tao/Profile.h for documentation.

Implements TAO_Profile.

Member Data Documentation

CORBA::ULong TAO_COIOP_Profile::count_

protected

Number of endpoints in the list headed by <endpoint_>.

TAO_COIOP_Endpoint TAO_COIOP_Profile::endpoint_

protected

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in nonRT mode as well, e.g., to support TAG_ALTERNATE_COIOP_ADDRESS feature. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard COIOP ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

const char TAO_COIOP_Profile::object_key_delimiter_ = '/'

static

The object key delimiter that COIOP uses or expects.

The documentation for this class was generated from the following files:
