TAO::DII_Invocation Class Reference

#include <DII_Invocation.h>

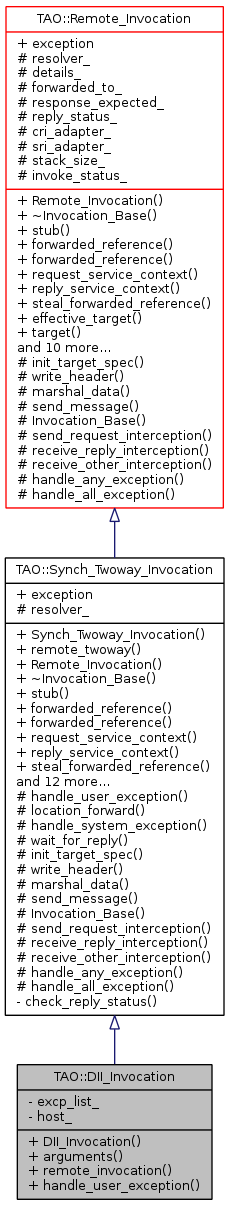

Inheritance diagram for TAO::DII_Invocation:

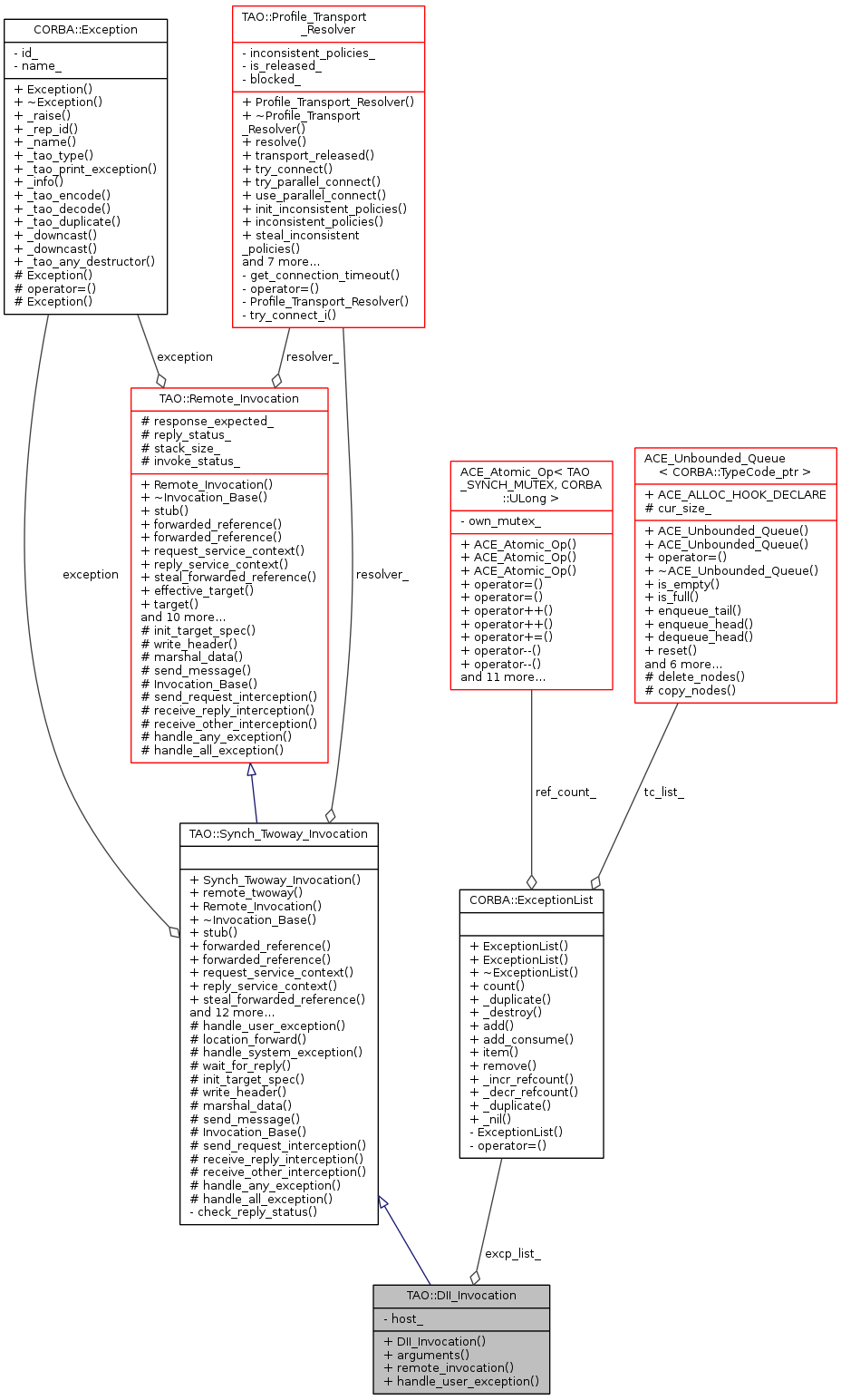

Collaboration diagram for TAO::DII_Invocation:

Public Member Functions
	DII_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, CORBA::ExceptionList *excp, CORBA::Request_ptr req, bool response_expected=true)
virtual Dynamic::ParameterList *	arguments (void)
Invocation_Status	remote_invocation (ACE_Time_Value *max_wait_time)
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr)
Public Member Functions inherited from TAO::Synch_Twoway_Invocation
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time)
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
virtual	~Invocation_Base (void)
TAO_Stub *	stub (void) const
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
TAO_Service_Context &	request_service_context (void)
TAO_Service_Context &	reply_service_context (void)
CORBA::Object_ptr	steal_forwarded_reference (void)
CORBA::Object_ptr	effective_target (void) const
CORBA::Object_ptr	target (void) const
CORBA::Boolean	response_expected (void) const
GIOP::ReplyStatusType	reply_status (void) const
void	reply_status (GIOP::ReplyStatusType s)
TAO_Operation_Details &	operation_details (void)
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
TAO::Invocation_Status	invoke_status (void) const
void	invoke_status (Invocation_Status s)
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
bool	is_remote_request () const
Public Member Functions inherited from TAO::Remote_Invocation
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
TAO_Stub *	stub (void) const
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
TAO_Service_Context &	request_service_context (void)
TAO_Service_Context &	reply_service_context (void)
CORBA::Object_ptr	steal_forwarded_reference (void)
CORBA::Object_ptr	effective_target (void) const
CORBA::Object_ptr	target (void) const
CORBA::Boolean	response_expected (void) const
GIOP::ReplyStatusType	reply_status (void) const
void	reply_status (GIOP::ReplyStatusType s)
TAO_Operation_Details &	operation_details (void)
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
TAO::Invocation_Status	invoke_status (void) const
void	invoke_status (Invocation_Status s)
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
bool	is_remote_request () const
Public Member Functions inherited from TAO::Invocation_Base
TAO_Stub *	stub (void) const
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
TAO_Service_Context &	request_service_context (void)
TAO_Service_Context &	reply_service_context (void)
CORBA::Object_ptr	steal_forwarded_reference (void)
CORBA::Object_ptr	effective_target (void) const
CORBA::Object_ptr	target (void) const
CORBA::Boolean	response_expected (void) const
GIOP::ReplyStatusType	reply_status (void) const
void	reply_status (GIOP::ReplyStatusType s)
TAO_Operation_Details &	operation_details (void)
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
TAO::Invocation_Status	invoke_status (void) const
void	invoke_status (Invocation_Status s)
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
bool	is_remote_request () const

Private Attributes
CORBA::ExceptionList *	excp_list_
CORBA::Request_ptr	host_
	Back pointer to the DII request that created us.

Friends
class	DII_Invocation_Adapter

Additional Inherited Members
Public Attributes inherited from TAO::Synch_Twoway_Invocation
void exception CORBA::Exception *	exception
Protected Member Functions inherited from TAO::Synch_Twoway_Invocation
Invocation_Status	location_forward (TAO_InputCDR &cdr)
Invocation_Status	handle_system_exception (TAO_InputCDR &cdr)
Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd)
void	init_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &output)
void	write_header (TAO_OutputCDR &out_stream)
void	marshal_data (TAO_OutputCDR &cdr)
Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)
Invocation_Status	send_request_interception (void)
Invocation_Status	receive_reply_interception (void)
Invocation_Status	receive_other_interception (void)
PortableInterceptor::ReplyStatus	handle_any_exception (CORBA::Exception *e)
PortableInterceptor::ReplyStatus	handle_all_exception (void)
Protected Attributes inherited from TAO::Synch_Twoway_Invocation
Profile_Transport_Resolver &	resolver_

Constructor & Destructor Documentation

TAO::DII_Invocation::DII_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail,
		CORBA::ExceptionList *	excp,
		CORBA::Request_ptr	req,
		bool	response_expected = true
	)

Member Function Documentation

Dynamic::ParameterList * TAO::DII_Invocation::arguments ( void  )

virtual

Invocation_Status TAO::DII_Invocation::handle_user_exception ( TAO_InputCDR &  cdr )

virtual

Reimplemented from TAO::Synch_Twoway_Invocation.

Invocation_Status TAO::DII_Invocation::remote_invocation

(

ACE_Time_Value *

max_wait_time

)

Friends And Related Function Documentation

friend class DII_Invocation_Adapter

friend

Member Data Documentation

CORBA::ExceptionList* TAO::DII_Invocation::excp_list_

private

CORBA::Request_ptr TAO::DII_Invocation::host_

private

Back pointer to the DII request that created us.

---

The documentation for this class was generated from the following files:

• DII_Invocation.h
• DII_Invocation.cpp
