Definition for the thread-per-connection strategy. More...

#include <Thread_Per_Connection_Handler.h>

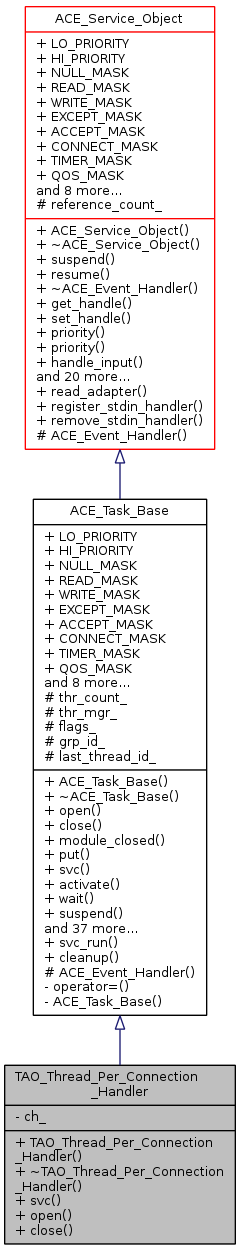

Inheritance diagram for TAO_Thread_Per_Connection_Handler:

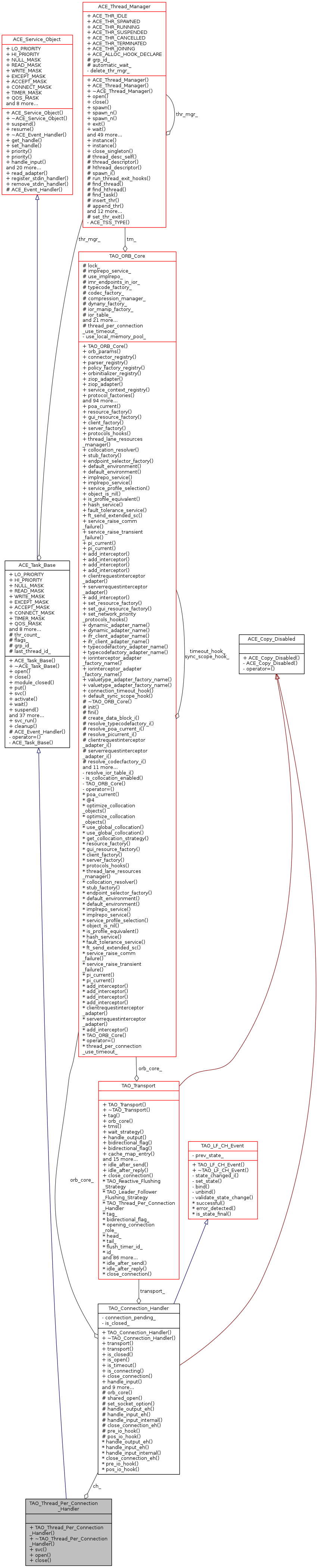

Collaboration diagram for TAO_Thread_Per_Connection_Handler:

Public Member Functions
	TAO_Thread_Per_Connection_Handler (TAO_Connection_Handler ch, TAO_ORB_Core oc)

	~TAO_Thread_Per_Connection_Handler (void)

virtual int	svc (void)
	Template hook method that the thread uses...

virtual int	open (void *)

virtual int	close (u_long)

Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)

virtual	~ACE_Task_Base (void)

virtual int	module_closed (void)

virtual int	put (ACE_Message_Block , ACE_Time_Value =0)

virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE\|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)

virtual int	wait (void)

virtual int	suspend (void)

virtual int	resume (void)

int	grp_id (void) const

void	grp_id (int)

ACE_Thread_Manager *	thr_mgr (void) const

void	thr_mgr (ACE_Thread_Manager *)

int	is_reader (void) const

int	is_writer (void) const

size_t	thr_count (void) const

ACE_thread_t	last_thread (void) const

	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

Reference_Counting_Policy &	reference_counting_policy (void)

	ACE_Shared_Object (void)

Public Member Functions inherited from ACE_Event_Handler
Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

Private Attributes
TAO_Connection_Handler *	ch_

Additional Inherited Members
Public Types inherited from ACE_Task_Base
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN	svc_run (void *)

static void	cleanup (void object, void params)

Public Attributes inherited from ACE_Task_Base
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Task_Base
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Task_Base
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Task_Base
size_t	thr_count_

ACE_Thread_Manager *	thr_mgr_

u_long	flags_

int	grp_id_

ACE_thread_t	last_thread_id_

Detailed Description

Definition for the thread-per-connection strategy.

This object acts as an active object, encapsulating the protocol specific handler which the active thread uses to process incoming messages.

Constructor & Destructor Documentation

TAO_Thread_Per_Connection_Handler::TAO_Thread_Per_Connection_Handler	(	TAO_Connection_Handler *	ch,
		TAO_ORB_Core *	oc
	)

TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler ( void )

Member Function Documentation

int TAO_Thread_Per_Connection_Handler::close ( u_long )

virtual

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::open ( void * v )

virtual

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::svc ( void )

virtual

Template hook method that the thread uses...

Please see the documentation in ace/Task.h for details.

Reimplemented from ACE_Task_Base.

Member Data Documentation

TAO_Connection_Handler* TAO_Thread_Per_Connection_Handler::ch_

private

Pointer to protocol specific code that does the bunch of the job.

The documentation for this class was generated from the following files:
