ACEXML_Debug_Element_Builder Class Reference

#include "parser/debug_validator/Debug_Element_Builder.h"

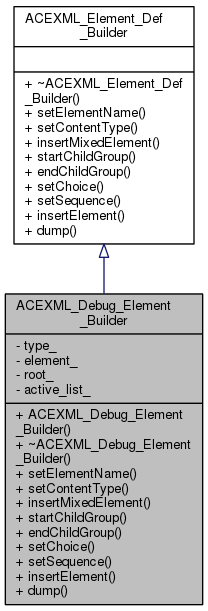

Inheritance diagram for ACEXML_Debug_Element_Builder:

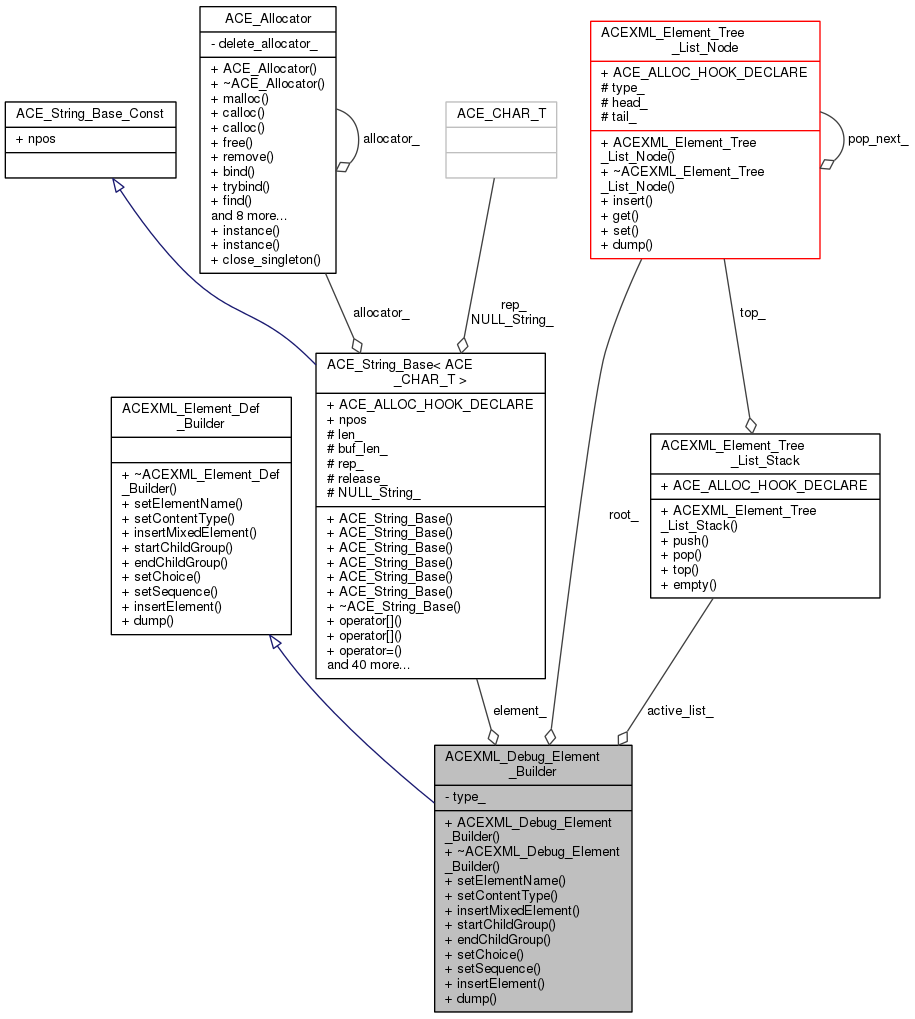

Collaboration diagram for ACEXML_Debug_Element_Builder:

Public Member Functions
	ACEXML_Debug_Element_Builder ()
virtual	~ACEXML_Debug_Element_Builder ()
virtual int	setElementName (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)
virtual int	setContentType (CONTENT_TYPE type)
virtual int	insertMixedElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)
virtual int	startChildGroup ()
virtual int	endChildGroup (CARDINALITY card)
virtual int	setChoice ()
virtual int	setSequence ()
virtual int	insertElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)
virtual void	dump (void)
Public Member Functions inherited from ACEXML_Element_Def_Builder
virtual	~ACEXML_Element_Def_Builder ()=0

Private Attributes
CONTENT_TYPE	type_
ACEXML_String	element_
ACEXML_Element_Tree_List_Node *	root_
ACEXML_Element_Tree_List_Stack	active_list_

Additional Inherited Members
Public Types inherited from ACEXML_Element_Def_Builder
enum	CONTENT_TYPE {   EMPTY, ANY, MIXED, CHILDREN,   UNDEFINED }
enum	CARDINALITY { ONE, ZERO_OR_MORE, ONE_OR_MORE, ONE_OR_ZERO }
typedef auto_ptr < ACEXML_Element_Def_Builder >	VAR

Detailed Description

This class prints out the element definition for debugging purpose.

Todo:

This class is not namespace-aware.

Constructor & Destructor Documentation

ACEXML_Debug_Element_Builder::ACEXML_Debug_Element_Builder

(

)

ACEXML_Debug_Element_Builder::~ACEXML_Debug_Element_Builder ( )

virtual

Member Function Documentation

void ACEXML_Debug_Element_Builder::dump ( void  )

virtual

Dump the content of the attribute definition.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::endChildGroup ( CARDINALITY  card )

virtual

End a new group of children.

Return values

0	on success.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertElement ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

virtual

Insert an new element into the current child group.

Return values

0	on success, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertMixedElement ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

virtual

Insert one more element into Mixed definition.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setChoice ( )

virtual

Set the type of current child group to Choice.

Return values

0	on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setContentType ( CONTENT_TYPE  type )

virtual

Define the content type of the element.

Return values

0	if valid, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setElementName ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

virtual

Define the name of the element.

Return values

0	if valid, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setSequence ( )

virtual

Set the type of current child group to Sequence.

Return values

0	on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::startChildGroup ( )

virtual

Start a new group of children.

Implements ACEXML_Element_Def_Builder.

Member Data Documentation

ACEXML_Element_Tree_List_Stack ACEXML_Debug_Element_Builder::active_list_

private

ACEXML_String ACEXML_Debug_Element_Builder::element_

private

ACEXML_Element_Tree_List_Node* ACEXML_Debug_Element_Builder::root_

private

CONTENT_TYPE ACEXML_Debug_Element_Builder::type_

private

---

The documentation for this class was generated from the following files:

• Debug_Element_Builder.h
• Debug_Element_Builder.cpp
