Secure invocation server request interceptor. More...

#include <SSLIOP_Invocation_Interceptor.h>

Inheritance diagram for TAO::SSLIOP::Server_Invocation_Interceptor:

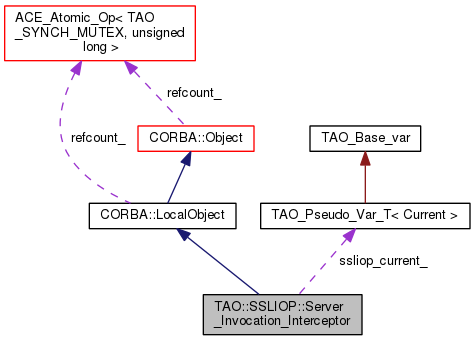

Collaboration diagram for TAO::SSLIOP::Server_Invocation_Interceptor:

Public Member Functions
	Server_Invocation_Interceptor (PortableInterceptor::ORBInitInfo_ptr info,::Security::QOP default_qop, size_t tss_slot)
	Constructor.
PortableInterceptor::ServerRequestInterceptor Methods
Methods required by the PortableInterceptor::ServerRequestInterceptor interface.
virtual char *	name (void)
virtual void	destroy (void)
virtual void	receive_request_service_contexts (PortableInterceptor::ServerRequestInfo_ptr ri)
virtual void	receive_request (PortableInterceptor::ServerRequestInfo_ptr ri)
virtual void	send_reply (PortableInterceptor::ServerRequestInfo_ptr ri)
virtual void	send_exception (PortableInterceptor::ServerRequestInfo_ptr ri)
virtual void	send_other (PortableInterceptor::ServerRequestInfo_ptr ri)
Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject (void)
virtual CORBA::Boolean	_non_existent (void)
virtual char *	_repository_id (void)
virtual CORBA::InterfaceDef_ptr	_get_interface (void)
virtual CORBA::Object_ptr	_get_component (void)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual CORBA::Request_ptr	_request (const char *operation)
CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)
CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)
CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)
CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)
virtual CORBA::ULong	_hash (CORBA::ULong maximum)
virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)
virtual CORBA::ORB_ptr	_get_orb (void)
virtual TAO::ObjectKey *	_key (void)
virtual	~Object (void)
virtual TAO_Abstract_ServantBase *	_servant (void) const
virtual CORBA::Boolean	_is_collocated (void) const
virtual CORBA::Boolean	_is_local (void) const
	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)
	Object (IOP::IOR ior, TAO_ORB_Core orb_core)
virtual TAO_Stub *	_stubobj (void) const
virtual TAO_Stub *	_stubobj (void)
virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)
CORBA::Boolean	is_evaluated (void) const
TAO_ORB_Core *	orb_core (void) const
IOP::IOR *	steal_ior (void)
const IOP::IOR &	ior (void) const
virtual bool	can_convert_to_ior (void) const
virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const
void	_decr_refcount (void)
virtual void	_add_ref (void)
virtual void	_remove_ref (void)
virtual CORBA::ULong	_refcount_value (void) const
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
virtual const char *	_interface_repository_id (void) const

Protected Member Functions
	~Server_Invocation_Interceptor (void)
	Destructor.
Protected Member Functions inherited from CORBA::LocalObject
	LocalObject (void)
	Object (int dummy=0)
TAO::Object_Proxy_Broker *	proxy_broker () const

Private Member Functions
Copying and Assignment
Protected to prevent copying through the copy constructor and the assignment operator.
	Server_Invocation_Interceptor (const Server_Invocation_Interceptor &)
void	operator= (const Server_Invocation_Interceptor &)

Private Attributes
::SSLIOP::Current_var	ssliop_current_
	Reference to the current SSLIOP execution context.
PortableServer::Current_var	poa_current_
	Reference to the POA current.
::Security::QOP	qop_
	The default quality-of-protection settings in use.
SecurityLevel2::SecurityManager_var	sec2manager_
	SecurityLevel2 security manager reference.
SecurityLevel2::Current_var	sec2_current_

Additional Inherited Members
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type
typedef LocalObject_var	_var_type
typedef LocalObject_out	_out_type
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
typedef Object_out	_out_type
Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)
static LocalObject_ptr	_nil (void)
static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)
static void	_tao_any_destructor (void *)
static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)
static void	tao_object_initialize (Object *)
static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)
Protected Attributes inherited from CORBA::LocalObject
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_

Detailed Description

Secure invocation server request interceptor.

This server request interceptor rejects insecure request invocations if the effective target object policy requires secure invocations.

Constructor & Destructor Documentation

TAO::SSLIOP::Server_Invocation_Interceptor::Server_Invocation_Interceptor	(	PortableInterceptor::ORBInitInfo_ptr	info,
		::Security::QOP	default_qop,
		size_t	tss_slot
	)

Constructor.

Parameters

info	reference to the ORBInitInfo object so that the interceptor can get access to initial references, etc.
default_qop	the default Quality of Protection
tss_slot	the TSS slot used by the various security features.

TAO::SSLIOP::Server_Invocation_Interceptor::~Server_Invocation_Interceptor ( void )

protected

Destructor.

Protected destructor to force deallocation by the reference counting mechanism.

TAO::SSLIOP::Server_Invocation_Interceptor::Server_Invocation_Interceptor ( const Server_Invocation_Interceptor & )

private

Member Function Documentation

void TAO::SSLIOP::Server_Invocation_Interceptor::destroy ( void )

virtual

char * TAO::SSLIOP::Server_Invocation_Interceptor::name ( void )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::operator= ( const Server_Invocation_Interceptor & )

private

void TAO::SSLIOP::Server_Invocation_Interceptor::receive_request ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::receive_request_service_contexts ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_exception ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_other ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_reply ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

Member Data Documentation

PortableServer::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::poa_current_

private

Reference to the POA current.

::Security::QOP TAO::SSLIOP::Server_Invocation_Interceptor::qop_

private

The default quality-of-protection settings in use.

SecurityLevel2::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::sec2_current_

private

SecurityLevel2::SecurityManager_var TAO::SSLIOP::Server_Invocation_Interceptor::sec2manager_

private

SecurityLevel2 security manager reference.

::SSLIOP::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::ssliop_current_

private

Reference to the current SSLIOP execution context.

The documentation for this class was generated from the following files:
