#include <RT_ORBInitializer.h>

Inheritance diagram for TAO_RT_ORBInitializer:

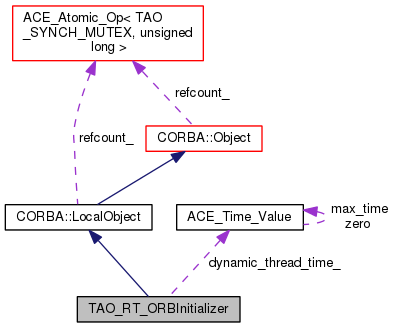

Collaboration diagram for TAO_RT_ORBInitializer:

Public Types
enum	{ TAO_PRIORITY_MAPPING_CONTINUOUS, TAO_PRIORITY_MAPPING_LINEAR, TAO_PRIORITY_MAPPING_DIRECT }
	Priority mapping types. More...
enum	{ TAO_NETWORK_PRIORITY_MAPPING_LINEAR }
enum	TAO_RTCORBA_DT_LifeSpan { TAO_RTCORBA_DT_INFINITIVE, TAO_RTCORBA_DT_IDLE, TAO_RTCORBA_DT_FIXED }
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type
typedef LocalObject_var	_var_type
typedef LocalObject_out	_out_type
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
typedef Object_out	_out_type
Public Types inherited from CORBA::Object
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
typedef Object_out	_out_type

Public Member Functions
	TAO_RT_ORBInitializer (int priority_mapping_type, int network_priority_mapping_type, int ace_sched_policy, long sched_policy, long scope_policy, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
virtual void	pre_init (PortableInterceptor::ORBInitInfo_ptr info)
virtual void	post_init (PortableInterceptor::ORBInitInfo_ptr info)
Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject (void)
virtual CORBA::Boolean	_non_existent (void)
virtual char *	_repository_id (void)
virtual CORBA::InterfaceDef_ptr	_get_interface (void)
virtual CORBA::Object_ptr	_get_component (void)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual CORBA::Request_ptr	_request (const char *operation)
CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)
CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)
CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)
CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)
virtual CORBA::ULong	_hash (CORBA::ULong maximum)
virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)
virtual CORBA::ORB_ptr	_get_orb (void)
virtual TAO::ObjectKey *	_key (void)
virtual	~Object (void)
virtual TAO_Abstract_ServantBase *	_servant (void) const
virtual CORBA::Boolean	_is_collocated (void) const
virtual CORBA::Boolean	_is_local (void) const
	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)
	Object (IOP::IOR ior, TAO_ORB_Core orb_core)
virtual TAO_Stub *	_stubobj (void) const
virtual TAO_Stub *	_stubobj (void)
virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)
CORBA::Boolean	is_evaluated (void) const
TAO_ORB_Core *	orb_core (void) const
IOP::IOR *	steal_ior (void)
const IOP::IOR &	ior (void) const
virtual bool	can_convert_to_ior (void) const
virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const
void	_decr_refcount (void)
virtual void	_add_ref (void)
virtual void	_remove_ref (void)
virtual CORBA::ULong	_refcount_value (void) const
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
virtual const char *	_interface_repository_id (void) const

Private Member Functions
void	register_policy_factories (PortableInterceptor::ORBInitInfo_ptr info)
	Register RTCORBA policy factories.

Private Attributes
PortableInterceptor::PolicyFactory_var	policy_factory_
	Instance of the RTCorba policy factory.
int const	priority_mapping_type_
	Priority mapping type.
int const	network_priority_mapping_type_
	Network Priority mapping type.
int const	ace_sched_policy_
	Scheduling policy.
long const	sched_policy_
	Scheduling policy flag.
long const	scope_policy_
	Scheduling scope flag.
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan_
	Dynamic thread lifespan policy.
ACE_Time_Value const	dynamic_thread_time_
	Dynamic thread time.

Additional Inherited Members
Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)
static LocalObject_ptr	_nil (void)
static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)
static void	_tao_any_destructor (void *)
static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)
static void	tao_object_initialize (Object *)
static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)
Protected Member Functions inherited from CORBA::LocalObject
	LocalObject (void)
	Object (int dummy=0)
TAO::Object_Proxy_Broker *	proxy_broker () const
Protected Attributes inherited from CORBA::LocalObject
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_

Detailed Description

RTCORBA ORB initializer.

Member Enumeration Documentation

anonymous enum

Priority mapping types.

Enumerator:

TAO_PRIORITY_MAPPING_CONTINUOUS
TAO_PRIORITY_MAPPING_LINEAR
TAO_PRIORITY_MAPPING_DIRECT

anonymous enum

Enumerator:

TAO_NETWORK_PRIORITY_MAPPING_LINEAR

enum TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan

Lifespan of the dynamic threads TAO_RTCORBA_DT_INFINITIVE When the Dynamic Thread is created it will run forever TAO_RTCORBA_DT_IDLE When the Dynamic Thread is created it will run until it has been idle for the specified amount of time TAO_RTCORBA_DT_FIXED When the Dynamic Thread is created it will run for the specified fix amount of time

Enumerator:

TAO_RTCORBA_DT_INFINITIVE
TAO_RTCORBA_DT_IDLE
TAO_RTCORBA_DT_FIXED

Constructor & Destructor Documentation

TAO_RT_ORBInitializer::TAO_RT_ORBInitializer	(	int	priority_mapping_type,
		int	network_priority_mapping_type,
		int	ace_sched_policy,
		long	sched_policy,
		long	scope_policy,
		TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan,
		ACE_Time_Value const &	dynamic_thread_time
	)

Member Function Documentation

void TAO_RT_ORBInitializer::post_init ( PortableInterceptor::ORBInitInfo_ptr info )

virtual

void TAO_RT_ORBInitializer::pre_init ( PortableInterceptor::ORBInitInfo_ptr info )

virtual

void TAO_RT_ORBInitializer::register_policy_factories ( PortableInterceptor::ORBInitInfo_ptr info )

private

Register RTCORBA policy factories.

Member Data Documentation

int const TAO_RT_ORBInitializer::ace_sched_policy_

private

Scheduling policy.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by functions like ACE_OS::thr_setprio() and ACE_Sched_Params::priority_min(). Legal values are ACE_SCHED_RR, ACE_SCHED_FIFO, and ACE_SCHED_OTHER.

ACE_Time_Value const TAO_RT_ORBInitializer::dynamic_thread_time_

private

Dynamic thread time.

When using thread pool a certain number of dynamic threads can be created. By default these threads are created when needed but never end. Optionally a time can be specified

TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan TAO_RT_ORBInitializer::lifespan_

private

Dynamic thread lifespan policy.

int const TAO_RT_ORBInitializer::network_priority_mapping_type_

private

Network Priority mapping type.

PortableInterceptor::PolicyFactory_var TAO_RT_ORBInitializer::policy_factory_

private

Instance of the RTCorba policy factory.

The RTCorba policy factory is stateless and reentrant, so share a single instance between all ORBs.

int const TAO_RT_ORBInitializer::priority_mapping_type_

private

Priority mapping type.

long const TAO_RT_ORBInitializer::sched_policy_

private

Scheduling policy flag.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCHED_RR, THR_SCHED_FIFO, and THR_SCHED_DEFAULT.

long const TAO_RT_ORBInitializer::scope_policy_

private

Scheduling scope flag.

Scheduling policy specified by the user through the -ORBScopePolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCOPE_SYSTEM and THR_SCOPE_PROCESS.

The documentation for this class was generated from the following files:
