#include <IIOP_Endpoint.h>

Inheritance diagram for TAO_IIOP_Endpoint:

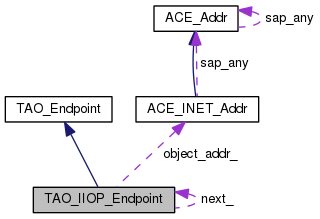

Collaboration diagram for TAO_IIOP_Endpoint:

Public Member Functions
	TAO_IIOP_Endpoint (void)
	Default constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)
	TAO_IIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
	Constructor. This constructor is used when decoding endpoints.
	~TAO_IIOP_Endpoint (void)
	Destructor.
virtual TAO_Endpoint *	next (void)
	Endpoints can be linked in a list.
virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core , TAO_Endpoint root)
virtual int	addr_to_string (char *buffer, size_t length)
	Return a string representation for the address.
virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of `this`.
virtual CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
virtual CORBA::ULong	hash (void)
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the <object_addr>.
const char *	host (void) const
const char *	host (const char *h)
CORBA::UShort	port (void) const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
bool	is_preferred_network (void) const
	Do we have a preferred local network for the target?
const char *	preferred_network (void) const
	Return the preferred network if any.
TAO_IIOP_Endpoint &	operator= (const TAO_IIOP_Endpoint &other)
Public Member Functions inherited from TAO_Endpoint
	TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)
	Constructor.
virtual	~TAO_Endpoint (void)
	Destructor.
CORBA::ULong	tag (void) const
	IOP protocol tag accessor.
void	priority (CORBA::Short priority)
	`priority_` attribute setter.
CORBA::Short	priority (void) const
	`priority_` attribute getter.

Private Member Functions
TAO_IIOP_Endpoint *	next_filtered_i (TAO_IIOP_Endpoint *root, bool ipv6_only, bool prefer_ipv6, bool want_ipv6)
int	set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Helper method for setting INET_Addr.
void	object_addr_i (void) const
	Helper method for object_addr () call.
CORBA::ULong	preferred_interfaces (const char *csvPreferred, bool enforce, TAO_IIOP_Profile &profile)
TAO_IIOP_Endpoint *	add_local_endpoint (TAO_IIOP_Endpoint ep, const char local, TAO_IIOP_Profile &profile)
	TAO_IIOP_Endpoint (const TAO_IIOP_Endpoint &)
	Canonical copy constructor.

Private Attributes
CORBA::String_var	host_
	String representing the host name.
CORBA::UShort	port_
	TCP port number.
bool	is_encodable_
	Is this endpoint created encodable as part of the IOR?
bool	object_addr_set_
	Flag to indicate if the address has been resolved and set.
ACE_INET_Addr	object_addr_
TAO::IIOP_Endpoint_Info	preferred_path_
	Preferred path for this endpoint.
TAO_IIOP_Endpoint *	next_

Friends
class	TAO_IIOP_Profile
class	TAO_SSLIOP_Profile

Additional Inherited Members
Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX	addr_lookup_lock_
	Lock for the address lookup.
CORBA::ULong	hash_val_
	Cache the hash value.
CORBA::ULong const	tag_
CORBA::Short	priority_

Detailed Description

TAO_IIOP_Endpoint.

IIOP-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint ( void )

Default constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint	(	const char *	host,
		CORBA::UShort	port,
		const ACE_INET_Addr &	addr,
		CORBA::Short	priority = `TAO_INVALID_PRIORITY`
	)

Constructor. This is the most efficient constructor since it does not require any address resolution processing.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint	(	const ACE_INET_Addr &	addr,
		int	use_dotted_decimal_addresses
	)

Constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint	(	const char *	host,
		CORBA::UShort	port,
		CORBA::Short	priority
	)

Constructor. This constructor is used when decoding endpoints.

TAO_IIOP_Endpoint::~TAO_IIOP_Endpoint ( void )

Destructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint ( const TAO_IIOP_Endpoint & rhs )

private

Canonical copy constructor.

In private section to prevent clients from invoking this accidentally. Clients should only use duplicate () to make a deep copy

Member Function Documentation

TAO_IIOP_Endpoint * TAO_IIOP_Endpoint::add_local_endpoint	(	TAO_IIOP_Endpoint *	ep,
		const char *	local,
		TAO_IIOP_Profile &	profile
	)

private

Chain a new duplicate of ourself with the specified local preferred interface.

int TAO_IIOP_Endpoint::addr_to_string	(	char *	buffer,
		size_t	length
	)

virtual

Return a string representation for the address.

The purpose of this method is to provide a general interface to the underlying address object's addr_to_string method. This allows the protocol implementor to select the appropriate string format.

Returns: -1 if buffer is too small.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_IIOP_Endpoint::duplicate ( void )

virtual

Makes a copy of this.

Implements TAO_Endpoint.

CORBA::ULong TAO_IIOP_Endpoint::hash ( void )

virtual

Return a hash value for this object.

Implements TAO_Endpoint.

const char* TAO_IIOP_Endpoint::host ( void ) const

Return a pointer to the host string. This object maintains ownership of this string.

const char * TAO_IIOP_Endpoint::host ( const char * h )

Copy the string h into <host_> and return the resulting pointer. This object maintains ownership of this string.

CORBA::Boolean TAO_IIOP_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint )

virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

bool TAO_IIOP_Endpoint::is_preferred_network ( void ) const

Do we have a preferred local network for the target?

TAO_Endpoint * TAO_IIOP_Endpoint::next ( void )

virtual

Endpoints can be linked in a list.

Returns: The next endpoint in the list, if any.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_IIOP_Endpoint::next_filtered	(	TAO_ORB_Core *	orb_core,
		TAO_Endpoint *	root
	)

virtual

Return the next endpoint in the list, but use protocol-specific filtering to constrain the value. The orb core is needed to supply any sort of filter arguments, and the root endpoint is needed in case the algorithm needs to rewind. If the supplied root is 0, then this is assumed to be the candidate next endpoint.

To use this, the caller starts off the change with root == 0. This is a bit of a violation in logic, a more correct implementation would accept this == 0 and a non-null root. To do iteration using next_filtered, do: for (TAO_Endpoint *ep = root_endpoint->next_filtered (orb_core, 0); ep != 0; ep = ep->next_filtered(orb_core, root_endpoint)) { }

Reimplemented from TAO_Endpoint.

TAO_IIOP_Endpoint * TAO_IIOP_Endpoint::next_filtered_i	(	TAO_IIOP_Endpoint *	root,
		bool	ipv6_only,
		bool	prefer_ipv6,
		bool	want_ipv6
	)

private

const ACE_INET_Addr & TAO_IIOP_Endpoint::object_addr ( void ) const

Return a reference to the <object_addr>.

void TAO_IIOP_Endpoint::object_addr_i ( void ) const

private

Helper method for object_addr () call.

TAO_IIOP_Endpoint & TAO_IIOP_Endpoint::operator= ( const TAO_IIOP_Endpoint & other )

Need to have an assignment operator since the IIOP_Profile class may have to reorder its list of endpoints based on filtering by the EndpointPolicy.

CORBA::UShort TAO_IIOP_Endpoint::port ( void ) const

Return the port number.

CORBA::UShort TAO_IIOP_Endpoint::port ( CORBA::UShort p )

Set the port number.

CORBA::ULong TAO_IIOP_Endpoint::preferred_interfaces	(	const char *	csvPreferred,
		bool	enforce,
		TAO_IIOP_Profile &	profile
	)

private

Generate preferred interfaces from the options passed in by the user.

const char * TAO_IIOP_Endpoint::preferred_network ( void ) const

Return the preferred network if any.

int TAO_IIOP_Endpoint::set	(	const ACE_INET_Addr &	addr,
		int	use_dotted_decimal_addresses
	)

private

Helper method for setting INET_Addr.

Friends And Related Function Documentation

friend class TAO_IIOP_Profile

friend

friend class TAO_SSLIOP_Profile

friend

Member Data Documentation

CORBA::String_var TAO_IIOP_Endpoint::host_

private

String representing the host name.

bool TAO_IIOP_Endpoint::is_encodable_

private

Is this endpoint created encodable as part of the IOR?

TAO_IIOP_Endpoint* TAO_IIOP_Endpoint::next_

private

IIOP Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_IIOP_Endpoint::object_addr_

mutableprivate

Cached instance of ACE_INET_Addr for use in making invocations, etc.

bool TAO_IIOP_Endpoint::object_addr_set_

mutableprivate

Flag to indicate if the address has been resolved and set.

CORBA::UShort TAO_IIOP_Endpoint::port_

private

TCP port number.

TAO::IIOP_Endpoint_Info TAO_IIOP_Endpoint::preferred_path_

private

Preferred path for this endpoint.

The documentation for this class was generated from the following files:
