ACE_POSIX_Asynch_Timer Class Reference

This class is posted to the completion port when a timer expires. When the complete() method of this object is called, the handler's handle_timeout() method will be called. More...

#include <POSIX_Proactor.h>

Inheritance diagram for ACE_POSIX_Asynch_Timer:

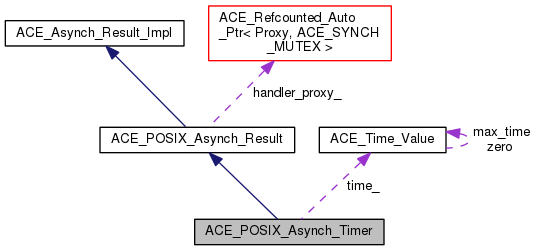

Collaboration diagram for ACE_POSIX_Asynch_Timer:

Protected Member Functions
	ACE_POSIX_Asynch_Timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
	Constructor.
virtual	~ACE_POSIX_Asynch_Timer (void)
	Destructor.
virtual void	complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)
	This method calls the handler's handle_timeout method.
Protected Member Functions inherited from ACE_POSIX_Asynch_Result
	ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number)
	Constructor. <Event> is not used on POSIX.
Protected Member Functions inherited from ACE_Asynch_Result_Impl
	ACE_Asynch_Result_Impl (void)
	Do-nothing constructor.

Protected Attributes
ACE_Time_Value	time_
	Time value requested by caller.
Protected Attributes inherited from ACE_POSIX_Asynch_Result
ACE_Handler::Proxy_Ptr	handler_proxy_
	Handler that will be called back.
const void *	act_
size_t	bytes_transferred_
	Bytes transferred by this operation.
int	success_
	Success indicator.
const void *	completion_key_
	ACT associated with handle.
u_long	error_
	Error if operation failed.

Friends
class	ACE_POSIX_Proactor

Additional Inherited Members
Public Member Functions inherited from ACE_POSIX_Asynch_Result
size_t	bytes_transferred (void) const
	Number of bytes transferred by the operation.
const void *	act (void) const
	ACT associated with the operation.
int	success (void) const
	Did the operation succeed?
const void *	completion_key (void) const
u_long	error (void) const
	Error value if the operation fails.
ACE_HANDLE	event (void) const
	This returns ACE_INVALID_HANDLE on POSIX4 platforms.
u_long	offset (void) const
u_long	offset_high (void) const
int	priority (void) const
	Priority of the operation.
int	signal_number (void) const
int	post_completion (ACE_Proactor_Impl *proactor)
	Post this to the Proactor.
virtual	~ACE_POSIX_Asynch_Result (void)
	Destructor.
void	set_error (u_long errcode)
	Simulate error value to use in the post_completion ()
void	set_bytes_transferred (size_t nbytes)
	Simulate value to use in the post_completion ()

Detailed Description

This class is posted to the completion port when a timer expires. When the complete() method of this object is called, the handler's handle_timeout() method will be called.

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Timer::ACE_POSIX_Asynch_Timer ( const ACE_Handler::Proxy_Ptr &  handler_proxy, const void *  act, const ACE_Time_Value &  tv, ACE_HANDLE  event = ACE_INVALID_HANDLE, int  priority = 0, int  signal_number = ACE_SIGRTMIN  )

protected

Constructor.

virtual ACE_POSIX_Asynch_Timer::~ACE_POSIX_Asynch_Timer ( void  )

inlineprotectedvirtual

Destructor.

Member Function Documentation

void ACE_POSIX_Asynch_Timer::complete ( size_t  bytes_transferred, int  success, const void *  completion_key, u_long  error = 0  )

protectedvirtual

This method calls the handler's handle_timeout method.

Implements ACE_Asynch_Result_Impl.

Friends And Related Function Documentation

friend class ACE_POSIX_Proactor

friend

The factory method for this class is with the POSIX_Proactor class.

Member Data Documentation

ACE_Time_Value ACE_POSIX_Asynch_Timer::time_

protected

Time value requested by caller.

---

The documentation for this class was generated from the following files:

• POSIX_Proactor.h
• POSIX_Proactor.cpp
