#include <Asynch_Pseudo_Task.h>

Inheritance diagram for ACE_Asynch_Pseudo_Task:

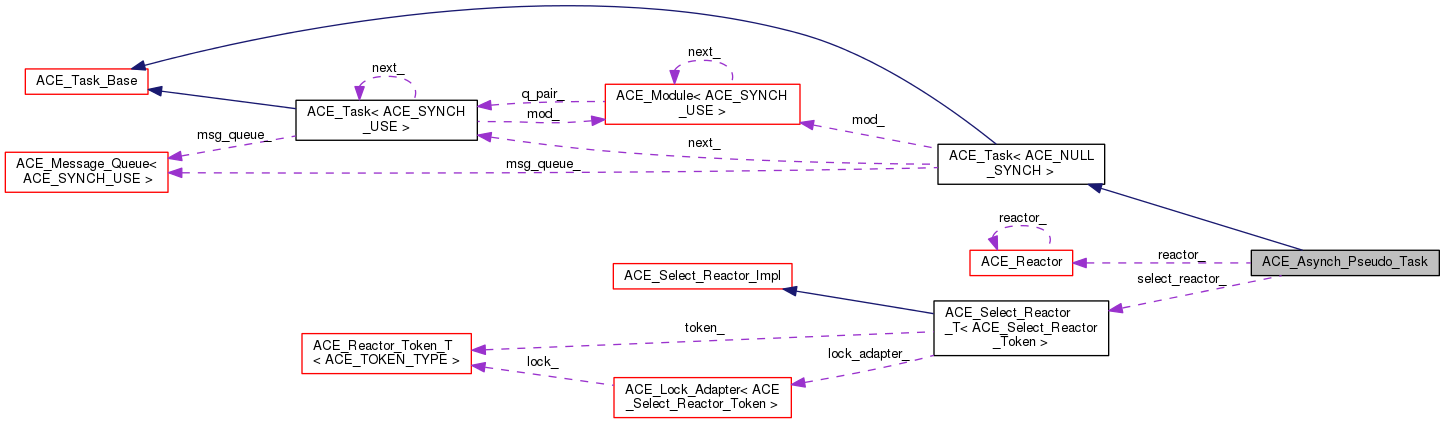

Collaboration diagram for ACE_Asynch_Pseudo_Task:

Public Member Functions
	ACE_Asynch_Pseudo_Task ()
virtual	~ACE_Asynch_Pseudo_Task ()
int	start (void)
int	stop (void)
int	register_io_handler (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask, int flg_suspend)
int	remove_io_handler (ACE_HANDLE handle)
int	remove_io_handler (ACE_Handle_Set &set)
int	resume_io_handler (ACE_HANDLE handle)
int	suspend_io_handler (ACE_HANDLE handle)
Public Member Functions inherited from ACE_Task< ACE_NULL_SYNCH >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > mq=0)
virtual	~ACE_Task (void)
	Destructor.
ACE_Message_Queue < ACE_SYNCH_USE > *	msg_queue (void)
	Gets the message queue associated with this task.
void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE > *)
	Sets the message queue associated with this task.
int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)
int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)
int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)
int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)
int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)
const ACE_TCHAR *	name (void) const
ACE_Task< ACE_SYNCH_USE > *	next (void)
	Get next Task pointer.
void	next (ACE_Task< ACE_SYNCH_USE > *)
	Set next Task pointer.
ACE_Task< ACE_SYNCH_USE > *	sibling (void)
ACE_Module< ACE_SYNCH_USE > *	module (void) const
	Return the Task's Module if there is one, else returns 0.
int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)
void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
	Manipulate watermarks.
void	dump (void) const
	Dump the state of an object.
Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)
	Constructor.
virtual	~ACE_Task_Base (void)
	Destructor.
virtual int	open (void *args=0)
	Default ACE_Task open routine.
virtual int	close (u_long flags=0)
	Default ACE_Task close routine.
virtual int	module_closed (void)
virtual int	put (ACE_Message_Block , ACE_Time_Value =0)
	Default ACE_Task put routine.
virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE\|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)
virtual int	wait (void)
	Wait for all threads running in a task to exit.
virtual int	suspend (void)
	Suspend a task.
virtual int	resume (void)
	Resume a suspended task.
int	grp_id (void) const
	Get the current group id.
void	grp_id (int)
	Set the current group id.
ACE_Thread_Manager *	thr_mgr (void) const
	Get the thread manager associated with this Task.
void	thr_mgr (ACE_Thread_Manager *)
	Set the thread manager associated with this Task.
int	is_reader (void) const
	True if queue is a reader, else false.
int	is_writer (void) const
	True if queue is a writer, else false.
size_t	thr_count (void) const
ACE_thread_t	last_thread (void) const
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor.
virtual	~ACE_Service_Object (void)
	Destructor.
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority (void) const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference (void)
	Increment reference count on the handler.
virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy.
Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)
	Constructor.
virtual	~ACE_Shared_Object (void)
	Destructor.
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	fini (void)
	Terminates object when dynamic unlinking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
	Returns information on a service object.

Protected Member Functions
virtual int	svc (void)
	Run by a daemon thread to handle deferred processing.

Protected Attributes
ACE_Select_Reactor	select_reactor_
	Should be initialized before reactor_.
ACE_Reactor	reactor_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0), WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4), TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8), ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN	svc_run (void *)
	Routine that runs the service routine as a daemon thread.
static void	cleanup (void object, void params)
Public Attributes inherited from ACE_Task< ACE_NULL_SYNCH >
ACE_Message_Queue < ACE_SYNCH_USE > *	msg_queue_
	Queue of messages on the ACE_Task..
bool	delete_msg_queue_
	true if should delete Message_Queue, false otherwise.
ACE_Module< ACE_SYNCH_USE > *	mod_
	Back-pointer to the enclosing module.
ACE_Task< ACE_SYNCH_USE > *	next_
	Pointer to adjacent ACE_Task.
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.

Constructor & Destructor Documentation

ACE_Asynch_Pseudo_Task::ACE_Asynch_Pseudo_Task ( )

ACE_Asynch_Pseudo_Task::~ACE_Asynch_Pseudo_Task ( )

virtual

Member Function Documentation

int ACE_Asynch_Pseudo_Task::register_io_handler	(	ACE_HANDLE	handle,
		ACE_Event_Handler *	handler,
		ACE_Reactor_Mask	mask,
		int	flg_suspend
	)

int ACE_Asynch_Pseudo_Task::remove_io_handler ( ACE_HANDLE handle )

int ACE_Asynch_Pseudo_Task::remove_io_handler ( ACE_Handle_Set & set )

int ACE_Asynch_Pseudo_Task::resume_io_handler ( ACE_HANDLE handle )

int ACE_Asynch_Pseudo_Task::start ( void )

int ACE_Asynch_Pseudo_Task::stop ( void )

int ACE_Asynch_Pseudo_Task::suspend_io_handler ( ACE_HANDLE handle )

int ACE_Asynch_Pseudo_Task::svc ( void )

protectedvirtual

Run by a daemon thread to handle deferred processing.

Default ACE_Task service routine.

Reimplemented from ACE_Task_Base.

Member Data Documentation

ACE_Reactor ACE_Asynch_Pseudo_Task::reactor_

protected

ACE_Select_Reactor ACE_Asynch_Pseudo_Task::select_reactor_

protected

Should be initialized before reactor_.

The documentation for this class was generated from the following files:
