TAO::SSLIOP::Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <SSLIOP_Connection_Handler.h>

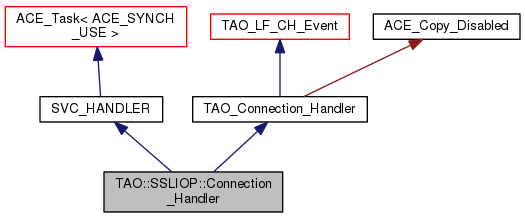

Inheritance diagram for TAO::SSLIOP::Connection_Handler:

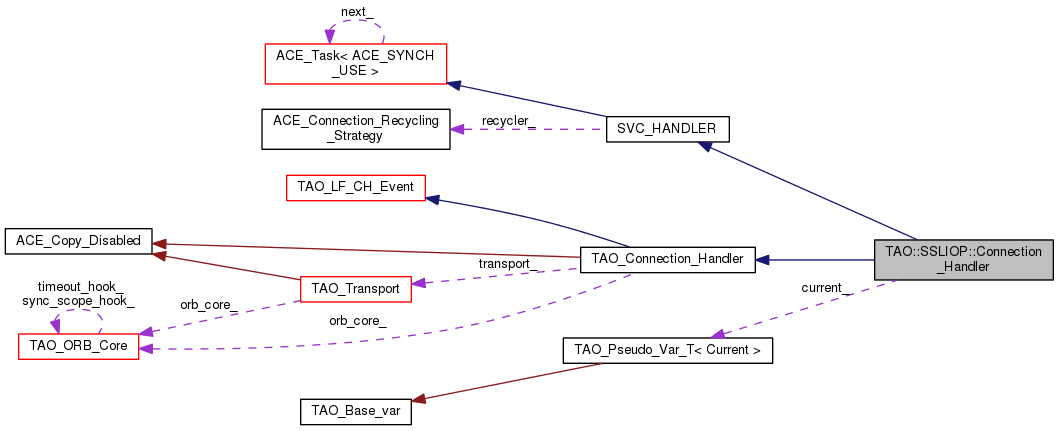

Collaboration diagram for TAO::SSLIOP::Connection_Handler:

List of all members.

Public Member Functions
	Connection_Handler (ACE_Thread_Manager *t=0)
	Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor.
	~Connection_Handler (void)
	Destructor.
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to cache.
int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list.
int	setup_ssl_state (TAO::SSLIOP::Current_Impl *&previous_current_impl, TAO::SSLIOP::Current_Impl *new_current_impl, bool &setup_done)
void	teardown_ssl_state (TAO::SSLIOP::Current_Impl *previous_current_impl, bool &setup_done)
	Teardown the SSL session state.
Connection Handler overloads
Connection Handler overloads.
virtual int	open_handler (void *)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	open (void *)
Protected Member Functions
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
virtual void	pos_io_hook (int &return_value)
virtual int	handle_write_ready (const ACE_Time_Value *timeout)
Protected Attributes
TAO::SSLIOP::Current_var	current_
Private Attributes
TAO_IIOP_Properties *	tcp_properties_
	TCP configuration for this connection.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

---

Constructor & Destructor Documentation

TAO::SSLIOP::Connection_Handler::Connection_Handler

(

ACE_Thread_Manager *

t = 0

)

TAO::SSLIOP::Connection_Handler::Connection_Handler

(

TAO_ORB_Core *

orb_core

)

Constructor.

TAO::SSLIOP::Connection_Handler::~Connection_Handler

(

void

)

Destructor.

---

Member Function Documentation

int TAO::SSLIOP::Connection_Handler::add_transport_to_cache

(

void

)

Add ourselves to cache.

int TAO::SSLIOP::Connection_Handler::close ( u_long  flags = 0 )

virtual

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO::SSLIOP::Connection_Handler::close_connection ( void  )

virtual

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_close ( ACE_HANDLE  , ACE_Reactor_Mask    )

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO::SSLIOP::Connection_Handler::handle_input ( ACE_HANDLE  h )

virtual

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_output ( ACE_HANDLE  handle )

virtual

Reimplemented from ACE_Event_Handler.

int TAO::SSLIOP::Connection_Handler::handle_timeout ( const ACE_Time_Value &  current_time, const void *  act = 0  )

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO::SSLIOP::Connection_Handler::handle_write_ready ( const ACE_Time_Value *  timeout )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::open ( void *  )

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO::SSLIOP::Connection_Handler::open_handler ( void *  v )

virtual

Implements TAO_Connection_Handler.

void TAO::SSLIOP::Connection_Handler::pos_io_hook ( int &  return_value )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::process_listen_point_list

(

IIOP::ListenPointList &

listen_list

)

Process the listen_list.

int TAO::SSLIOP::Connection_Handler::release_os_resources ( void  )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::resume_handler ( void  )

virtual

Reimplemented from ACE_Event_Handler.

int TAO::SSLIOP::Connection_Handler::setup_ssl_state	(	TAO::SSLIOP::Current_Impl *&	previous_current_impl,
		TAO::SSLIOP::Current_Impl *	new_current_impl,
		bool &	setup_done
	)

Make the SSL session state available to the SSLIOP::Current object.

void TAO::SSLIOP::Connection_Handler::teardown_ssl_state	(	TAO::SSLIOP::Current_Impl *	previous_current_impl,
		bool &	setup_done
	)

Teardown the SSL session state.

---

Member Data Documentation

TAO::SSLIOP::Current_var TAO::SSLIOP::Connection_Handler::current_

protected

Reference to the SSLIOP::Current object (downcast to gain access to the low-level management methods).

TAO_IIOP_Properties* TAO::SSLIOP::Connection_Handler::tcp_properties_

private

TCP configuration for this connection.

---

The documentation for this class was generated from the following files:

• SSLIOP_Connection_Handler.h
• SSLIOP_Connection_Handler.cpp
