Generic interface for the DII invocation object visible. More...

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Invocation_Adapter:

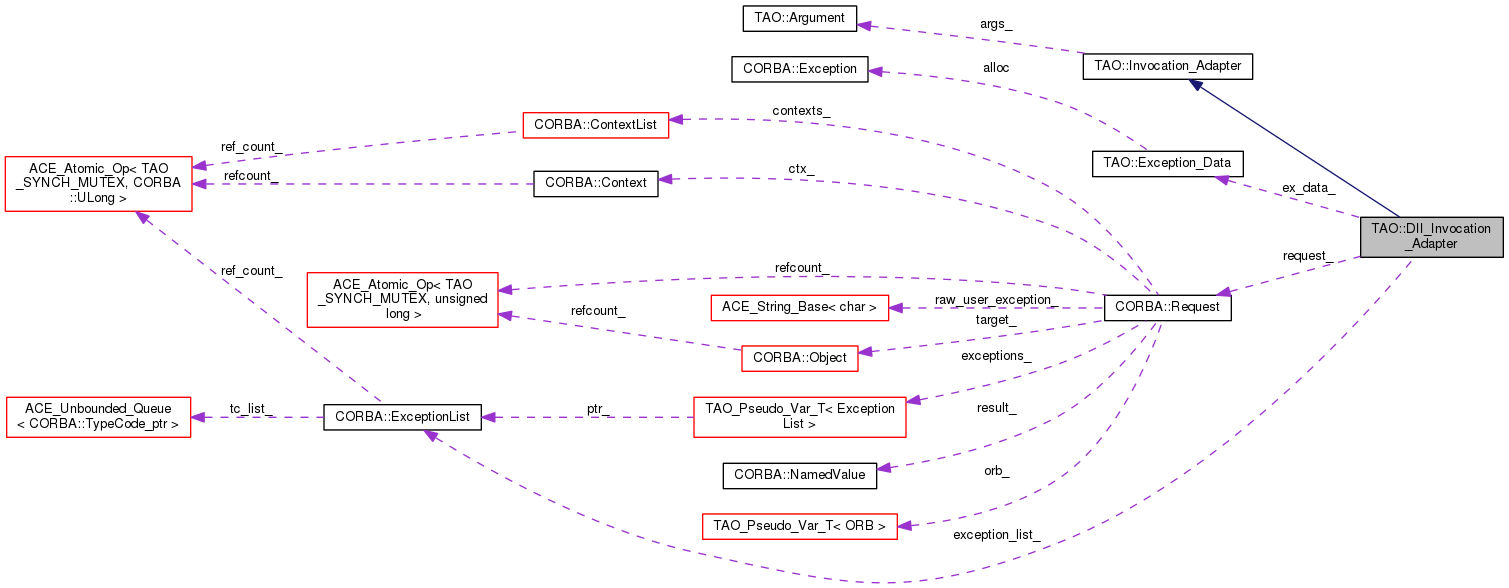

Collaboration diagram for TAO::DII_Invocation_Adapter:

Public Member Functions
	DII_Invocation_Adapter (CORBA::Object target, Argument args, int arg_number, const char operation, size_t op_len, CORBA::ExceptionList exception, CORBA::Request r, Invocation_Mode mode=TAO_DII_INVOCATION)
virtual	~DII_Invocation_Adapter (void)
virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target.
Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
Private Member Functions
	DII_Invocation_Adapter (void)
	Dont allow default initializations.
	DII_Invocation_Adapter (const DII_Invocation_Adapter &)
DII_Invocation_Adapter &	operator= (const DII_Invocation_Adapter &)
Private Attributes
CORBA::ExceptionList *	exception_list_
CORBA::Request *	request_
TAO::Exception_Data *	ex_data_

Detailed Description

Generic interface for the DII invocation object visible.

Constructor & Destructor Documentation

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		CORBA::ExceptionList *	exception,
		CORBA::Request *	r,
		Invocation_Mode	mode = `TAO_DII_INVOCATION`
	)

The only constructor used by the IDL compiler and only way to create this adapter.

Parameters:

target	Points to the object on which this invocation is being invoked.
args	Array of pointers to the argument list in the operation declaration. this includes the return, inout and out arguments.
arg_number	Number of arguments in the above array. This is the number of elements in the above array.
operation	The name of the operation being invoked.
op_len	Number of characters in the operation name. This is an optimization which helps us to avoid calling strlen () while creating a message format.
mode	Invocation mode. This information is also available in the IDL file and in the generated code.

TAO::DII_Invocation_Adapter::~DII_Invocation_Adapter ( void )

virtual

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( void )

private

Dont allow default initializations.

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( const DII_Invocation_Adapter & )

private

void TAO::DII_Invocation_Adapter::invoke	(	TAO::Exception_Data *	ex,
		unsigned long	ex_count
	)

virtual

Invoke the target.

Invocation_Status TAO::DII_Invocation_Adapter::invoke_collocated_i	(	TAO_Stub *	stub,
		TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Collocation_Strategy	strat
	)

protectedvirtual

Invocation_Status TAO::DII_Invocation_Adapter::invoke_twoway	(	TAO_Operation_Details &	op,
		CORBA::Object_var &	effective_target,
		Profile_Transport_Resolver &	r,
		ACE_Time_Value *&	max_wait_time
	)

protectedvirtual

DII_Invocation_Adapter& TAO::DII_Invocation_Adapter::operator= ( const DII_Invocation_Adapter & )

private

TAO::Exception_Data* TAO::DII_Invocation_Adapter::ex_data_

private

CORBA::ExceptionList* TAO::DII_Invocation_Adapter::exception_list_

private

CORBA::Request* TAO::DII_Invocation_Adapter::request_

private

The documentation for this class was generated from the following files:
