TAO_Notify_ProxySupplier Class Reference

Base class for all the ProxySuppliers. More...

#include <ProxySupplier.h>

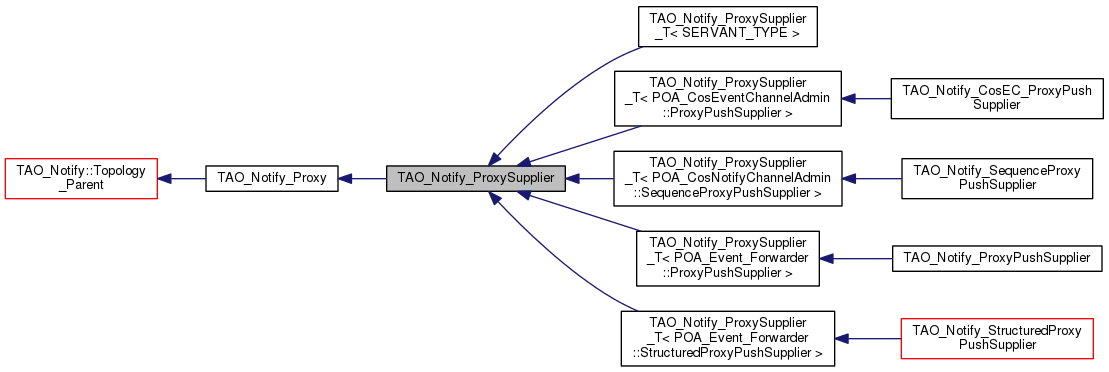

Inheritance diagram for TAO_Notify_ProxySupplier:

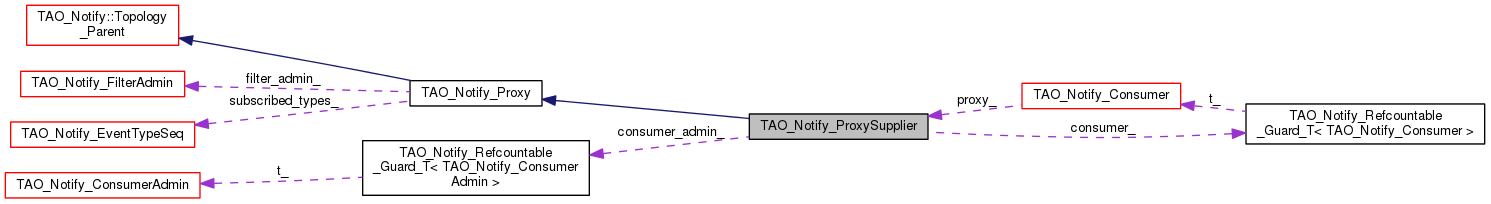

Collaboration diagram for TAO_Notify_ProxySupplier:

List of all members.

Public Types
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_ProxySupplier >	Ptr
Public Member Functions
	TAO_Notify_ProxySupplier (void)
	Constructor.
virtual	~TAO_Notify_ProxySupplier ()
	Destructor.
virtual void	init (TAO_Notify_ConsumerAdmin *consumer_admin)
	Init.
void	connect (TAO_Notify_Consumer *consumer)
	Connect.
void	disconnect (void)
	Disconnect.
virtual void	deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
	Dispatch Event to consumer.
virtual int	shutdown (void)
	Override TAO_Notify_Container_T::shutdown method.
virtual void	destroy (void)
	Destroy this object.
void	destroy (bool from_timeout)
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.
bool	is_connected (void) const
	Returns true if connected.
TAO_Notify_Consumer *	consumer (void)
	Access the Consumer.
TAO_Notify_ConsumerAdmin &	consumer_admin (void)
	The CA parent.
Private Member Functions
virtual TAO_Notify_Peer *	peer (void)
	Access our Peer.
Private Attributes
TAO_Notify_ConsumerAdmin::Ptr	consumer_admin_
TAO_Notify_Consumer::Ptr	consumer_
	The Consumer that we're connect to.
Friends
class	TAO_Notify_Consumer

---

Detailed Description

Base class for all the ProxySuppliers.

---

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_ProxySupplier> TAO_Notify_ProxySupplier::Ptr

Reimplemented from TAO_Notify_Proxy.

---

Constructor & Destructor Documentation

TAO_Notify_ProxySupplier::TAO_Notify_ProxySupplier

(

void

)

Constructor.

TAO_Notify_ProxySupplier::~TAO_Notify_ProxySupplier ( )

virtual

Destructor.

---

Member Function Documentation

void TAO_Notify_ProxySupplier::connect

(

TAO_Notify_Consumer *

consumer

)

Connect.

TAO_Notify_Consumer * TAO_Notify_ProxySupplier::consumer

(

void

)

Access the Consumer.

TAO_Notify_ConsumerAdmin & TAO_Notify_ProxySupplier::consumer_admin

(

void

)

The CA parent.

void TAO_Notify_ProxySupplier::deliver ( TAO_Notify_Method_Request_Dispatch_No_Copy &  request )

virtual

Dispatch Event to consumer.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

void TAO_Notify_ProxySupplier::destroy ( void  )

virtual

Destroy this object.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::destroy

(

bool

from_timeout

)

Destroy this object, but also indicate if it is due to a timeout or not.

void TAO_Notify_ProxySupplier::disconnect

(

void

)

Disconnect.

void TAO_Notify_ProxySupplier::init ( TAO_Notify_ConsumerAdmin *  consumer_admin )

virtual

Init.

bool TAO_Notify_ProxySupplier::is_connected

(

void

)

const

Returns true if connected.

TAO_Notify_Peer * TAO_Notify_ProxySupplier::peer ( void  )

privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::qos_changed ( const TAO_Notify_QoSProperties &  qos_properties )

virtual

Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.

Reimplemented from TAO_Notify_Proxy.

int TAO_Notify_ProxySupplier::shutdown ( void  )

virtual

Override TAO_Notify_Container_T::shutdown method.

Reimplemented from TAO_Notify_Object.

---

Friends And Related Function Documentation

friend class TAO_Notify_Consumer

friend

---

Member Data Documentation

TAO_Notify_Consumer::Ptr TAO_Notify_ProxySupplier::consumer_

private

The Consumer that we're connect to.

TAO_Notify_ConsumerAdmin::Ptr TAO_Notify_ProxySupplier::consumer_admin_

private

= Data Members. The CA parent.

---

The documentation for this class was generated from the following files:

• ProxySupplier.h
• ProxySupplier.cpp
• ProxySupplier.inl
