CIAO::Connector_Servant_Impl_Base Class Reference

#include <Connector_Servant_Impl_Base.h>

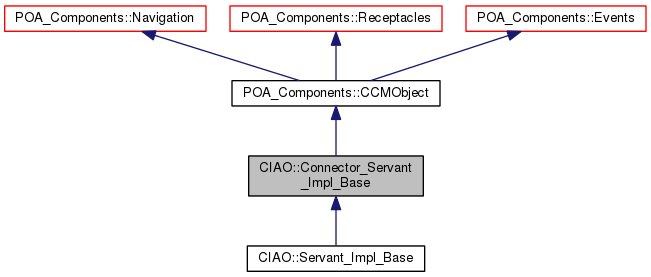

Inheritance diagram for CIAO::Connector_Servant_Impl_Base:

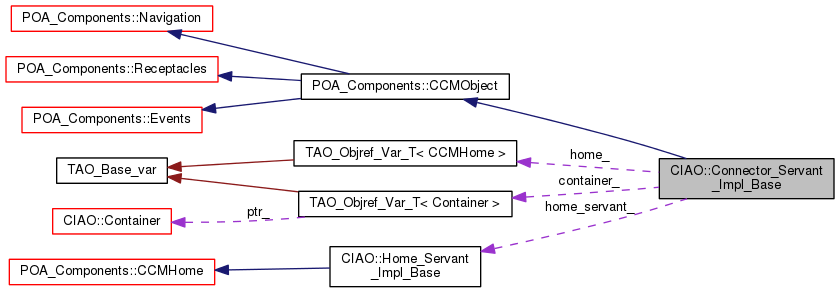

Collaboration diagram for CIAO::Connector_Servant_Impl_Base:

List of all members.

Public Member Functions
virtual	~Connector_Servant_Impl_Base (void)
virtual void	remove (void)
	Operations for CCMObject interface.
virtual CORBA::IRObject_ptr	get_component_def (void)
virtual Components::EnterpriseComponent_ptr	get_executor ()=0
virtual ::Components::ConnectionDescriptions *	get_connections (const char *name)
virtual CORBA::Object_ptr	provide_facet (const char *name)
virtual ::Components::FacetDescriptions *	get_named_facets (const ::Components::NameList &names)
virtual ::Components::FacetDescriptions *	get_all_facets (void)
virtual ::Components::ReceptacleDescriptions *	get_all_receptacles (void)
virtual ::Components::PrimaryKeyBase *	get_primary_key (void)
virtual ::Components::ComponentPortDescription *	get_all_ports (void)
virtual ::Components::ConsumerDescriptions *	get_all_consumers (void)
virtual ::Components::EventConsumerBase_ptr	get_consumer (const char *sink_name)
virtual ::Components::ConsumerDescriptions *	get_named_consumers (const ::Components::NameList &names)
virtual ::Components::EmitterDescriptions *	get_all_emitters (void)
virtual ::Components::EmitterDescriptions *	get_named_emitters (const ::Components::NameList &names)
virtual ::Components::ReceptacleDescriptions *	get_named_receptacles (const ::Components::NameList &names)
virtual ::Components::PublisherDescriptions *	get_all_publishers (void)
virtual ::Components::PublisherDescriptions *	get_named_publishers (const ::Components::NameList &names)
virtual ::Components::Cookie *	subscribe (const char *publisher_name,::Components::EventConsumerBase_ptr subscriber)
virtual ::Components::EventConsumerBase_ptr	unsubscribe (const char *publisher_name,::Components::Cookie *ck)
virtual void	connect_consumer (const char *emitter_name,::Components::EventConsumerBase_ptr consumer)
virtual ::Components::EventConsumerBase_ptr	disconnect_consumer (const char *source_name)
virtual ::Components::Cookie *	connect (const char *name,::CORBA::Object_ptr connection)
virtual ::CORBA::Object_ptr	disconnect (const char *name,::Components::Cookie *ck)
virtual void	set_attributes (const Components::ConfigValues &descr)
	Operation to set attributes on the component.
virtual ::Components::StandardConfigurator_ptr	get_standard_configurator (void)
virtual PortableServer::POA_ptr	_default_POA (void)
virtual ::CORBA::Object_ptr	get_facet_executor (const char *name)
virtual void	activate_component (void)=0
virtual void	passivate_component (void)=0
Protected Types
typedef std::map< ACE_CString,::CORBA::Object_var >	FacetTable
Protected Member Functions
	Connector_Servant_Impl_Base (Components::CCMHome_ptr home, Home_Servant_Impl_Base *home_servant, Container_ptr c)
virtual void	ccm_remove (void)=0
void	add_facet (const char *port_name,::CORBA::Object_ptr port_ref)
	Protected operations.
CORBA::Object_ptr	lookup_facet (const char *port_name)
::Components::FacetDescription *	lookup_facet_description (const char *port_name)
::Components::ReceptacleDescription *	lookup_receptacle_description (const char *receptacle_name)
Protected Attributes
FacetTable	facet_table_
Container_var	container_
Components::CCMHome_var	home_
Home_Servant_Impl_Base *	home_servant_
TAO_SYNCH_MUTEX	lock_
	For internal locking of table reads and writes.

---

Member Typedef Documentation

typedef std::map<ACE_CString, ::CORBA::Object_var> CIAO::Connector_Servant_Impl_Base::FacetTable

protected

---

Constructor & Destructor Documentation

CIAO::Connector_Servant_Impl_Base::Connector_Servant_Impl_Base ( Components::CCMHome_ptr  home, Home_Servant_Impl_Base *  home_servant, Container_ptr  c  )

protected

CIAO::Connector_Servant_Impl_Base::~Connector_Servant_Impl_Base ( void  )

virtual

---

Member Function Documentation

PortableServer::POA_ptr CIAO::Connector_Servant_Impl_Base::_default_POA ( void  )

virtual

Override that returns the (passed-in) default POA of our member component's container, to ensure that we get registered to that POA when _this() is called.

Reimplemented from TAO_ServantBase.

virtual void CIAO::Connector_Servant_Impl_Base::activate_component ( void  )

pure virtual

void CIAO::Connector_Servant_Impl_Base::add_facet ( const char *  port_name, ::CORBA::Object_ptr  port_ref  )

protected

Protected operations.

virtual void CIAO::Connector_Servant_Impl_Base::ccm_remove ( void  )

protectedpure virtual

Components::Cookie * CIAO::Connector_Servant_Impl_Base::connect ( const char *  name, ::CORBA::Object_ptr  connection  )

virtual

Implements POA_Components::Receptacles.

void CIAO::Connector_Servant_Impl_Base::connect_consumer ( const char *  emitter_name, ::Components::EventConsumerBase_ptr  consumer  )

virtual

CORBA::Object_ptr CIAO::Connector_Servant_Impl_Base::disconnect ( const char *  name, ::Components::Cookie *  ck  )

virtual

Implements POA_Components::Receptacles.

Components::EventConsumerBase_ptr CIAO::Connector_Servant_Impl_Base::disconnect_consumer

(

const char *

source_name

)

Components::ConsumerDescriptions * CIAO::Connector_Servant_Impl_Base::get_all_consumers

(

void

)

Reimplemented in CIAO::Servant_Impl_Base.

Components::EmitterDescriptions * CIAO::Connector_Servant_Impl_Base::get_all_emitters

(

void

)

Components::FacetDescriptions * CIAO::Connector_Servant_Impl_Base::get_all_facets ( void  )

virtual

Implements POA_Components::Navigation.

Components::ComponentPortDescription * CIAO::Connector_Servant_Impl_Base::get_all_ports ( void  )

virtual

Implements POA_Components::CCMObject.

Reimplemented in CIAO::Servant_Impl_Base.

Components::PublisherDescriptions * CIAO::Connector_Servant_Impl_Base::get_all_publishers

(

void

)

Components::ReceptacleDescriptions * CIAO::Connector_Servant_Impl_Base::get_all_receptacles ( void  )

virtual

Implements POA_Components::Receptacles.

CORBA::IRObject_ptr CIAO::Connector_Servant_Impl_Base::get_component_def ( void  )

virtual

Implements POA_Components::CCMObject.

Components::ConnectionDescriptions * CIAO::Connector_Servant_Impl_Base::get_connections ( const char *  name )

virtual

Implements POA_Components::Receptacles.

Components::EventConsumerBase_ptr CIAO::Connector_Servant_Impl_Base::get_consumer

(

const char *

sink_name

)

Reimplemented in CIAO::Servant_Impl_Base.

virtual Components::EnterpriseComponent_ptr CIAO::Connector_Servant_Impl_Base::get_executor ( )

pure virtual

CORBA::Object_ptr CIAO::Connector_Servant_Impl_Base::get_facet_executor

(

const char *

name

)

Components::ConsumerDescriptions * CIAO::Connector_Servant_Impl_Base::get_named_consumers

(

const ::Components::NameList &

names

)

Reimplemented in CIAO::Servant_Impl_Base.

Components::EmitterDescriptions * CIAO::Connector_Servant_Impl_Base::get_named_emitters

(

const ::Components::NameList &

names

)

Reimplemented in CIAO::Servant_Impl_Base.

Components::FacetDescriptions * CIAO::Connector_Servant_Impl_Base::get_named_facets ( const ::Components::NameList &  names )

virtual

Implements POA_Components::Navigation.

Components::PublisherDescriptions * CIAO::Connector_Servant_Impl_Base::get_named_publishers

(

const ::Components::NameList &

names

)

Reimplemented in CIAO::Servant_Impl_Base.

Components::ReceptacleDescriptions * CIAO::Connector_Servant_Impl_Base::get_named_receptacles ( const ::Components::NameList &  names )

virtual

Implements POA_Components::Receptacles.

Components::PrimaryKeyBase * CIAO::Connector_Servant_Impl_Base::get_primary_key ( void  )

virtual

Implements POA_Components::CCMObject.

Reimplemented in CIAO::Servant_Impl_Base.

Components::StandardConfigurator_ptr CIAO::Connector_Servant_Impl_Base::get_standard_configurator

(

void

)

CORBA::Object_ptr CIAO::Connector_Servant_Impl_Base::lookup_facet ( const char *  port_name )

protected

Components::FacetDescription * CIAO::Connector_Servant_Impl_Base::lookup_facet_description ( const char *  port_name )

protected

Components::ReceptacleDescription * CIAO::Connector_Servant_Impl_Base::lookup_receptacle_description ( const char *  receptacle_name )

protected

virtual void CIAO::Connector_Servant_Impl_Base::passivate_component ( void  )

pure virtual

CORBA::Object_ptr CIAO::Connector_Servant_Impl_Base::provide_facet ( const char *  name )

virtual

Implements POA_Components::Navigation.

void CIAO::Connector_Servant_Impl_Base::remove ( void  )

virtual

Operations for CCMObject interface.

Implements POA_Components::CCMObject.

Reimplemented in CIAO::Servant_Impl_Base.

void CIAO::Connector_Servant_Impl_Base::set_attributes ( const Components::ConfigValues &  descr )

virtual

Operation to set attributes on the component.

CIAO-specific public methods.

Components::Cookie * CIAO::Connector_Servant_Impl_Base::subscribe	(	const char *	publisher_name,
		::Components::EventConsumerBase_ptr	subscriber
	)

Components::EventConsumerBase_ptr CIAO::Connector_Servant_Impl_Base::unsubscribe	(	const char *	publisher_name,
		::Components::Cookie *	ck
	)

---

Member Data Documentation

Container_var CIAO::Connector_Servant_Impl_Base::container_

protected

FacetTable CIAO::Connector_Servant_Impl_Base::facet_table_

protected

Components::CCMHome_var CIAO::Connector_Servant_Impl_Base::home_

protected

Home_Servant_Impl_Base* CIAO::Connector_Servant_Impl_Base::home_servant_

protected

TAO_SYNCH_MUTEX CIAO::Connector_Servant_Impl_Base::lock_

protected

For internal locking of table reads and writes.

---

The documentation for this class was generated from the following files:

• Connector_Servant_Impl_Base.h
• Connector_Servant_Impl_Base.cpp
