Abstract class for unblocking an ACE_Reactor_Impl from its event loop. More...

#include <Reactor_Impl.h>

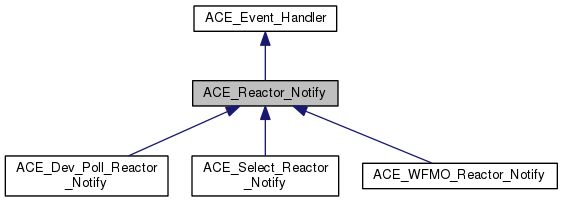

Inheritance diagram for ACE_Reactor_Notify:

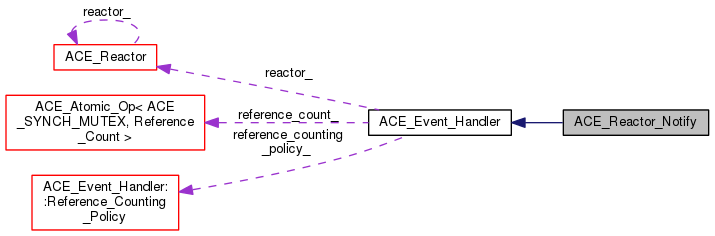

Collaboration diagram for ACE_Reactor_Notify:

Public Member Functions
virtual int	open (ACE_Reactor_Impl , ACE_Timer_Queue timer_queue=0, int disable_notify=0)=0
virtual int	close (void)=0
virtual int	notify (ACE_Event_Handler eh=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value timeout=0)=0
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0
virtual ACE_HANDLE	notify_handle (void)=0
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)=0
	Verify whether the buffer has dispatchable info or not.
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)=0
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0
virtual void	max_notify_iterations (int)=0
virtual int	max_notify_iterations (void)=0
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual void	dump (void) const =0
	Dump the state of an object.

Detailed Description

Abstract class for unblocking an ACE_Reactor_Impl from its event loop.

This class is for ACE internal use only.

Member Function Documentation

virtual int ACE_Reactor_Notify::close ( void )

pure virtual

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notifications	(	int &	number_of_active_handles,
		ACE_Handle_Set &	rd_mask
	)

pure virtual

Handles pending threads (if any) that are waiting to unblock the <Reactor_Impl>.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notify ( ACE_Notification_Buffer & buffer )

pure virtual

Handle one of the notify call on the <handle>. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual void ACE_Reactor_Notify::dump ( void ) const

pure virtual

Dump the state of an object.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::is_dispatchable ( ACE_Notification_Buffer & buffer )

pure virtual

Verify whether the buffer has dispatchable info or not.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual void ACE_Reactor_Notify::max_notify_iterations ( int )

pure virtual

Set the maximum number of times that the <handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::max_notify_iterations ( void )

pure virtual

Get the maximum number of times that the <handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its event loop.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::notify	(	ACE_Event_Handler *	eh = `0`,
		ACE_Reactor_Mask	mask = `ACE_Event_Handler::EXCEPT_MASK`,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Called by a thread when it wants to unblock the <Reactor_Impl>. This wakeups the <Reactor_Impl> if currently blocked. Pass over both the <Event_Handler> and the mask to allow the caller to dictate which <Event_Handler> method the <Reactor_Impl> will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the <Reactor_Impl>. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses).

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle ( void )

pure virtual

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::open	(	ACE_Reactor_Impl *	,
		ACE_Timer_Queue *	timer_queue = `0`,
		int	disable_notify = `0`
	)

pure virtual

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::purge_pending_notifications	(	ACE_Event_Handler *	= `0`,
		ACE_Reactor_Mask	= `ACE_Event_Handler::ALL_EVENTS_MASK`
	)

pure virtual

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::read_notify_pipe	(	ACE_HANDLE	handle,
		ACE_Notification_Buffer &	buffer
	)

pure virtual

Read one of the notify call on the handle into the buffer. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

The documentation for this class was generated from the following file:

Reactor_Impl.h
