ACE_SOCK_Dgram_Mcast_QoS Class Reference

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast_QoS.h>

Inheritance diagram for ACE_SOCK_Dgram_Mcast_QoS:

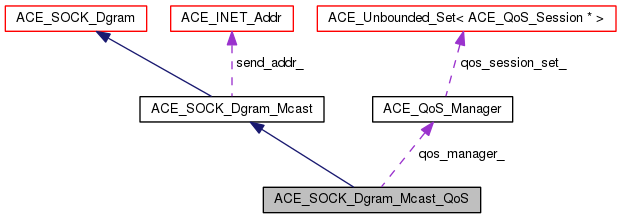

Collaboration diagram for ACE_SOCK_Dgram_Mcast_QoS:

List of all members.

Public Member Functions
	ACE_SOCK_Dgram_Mcast_QoS (options opts=DEFOPTS)
	Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.
	~ACE_SOCK_Dgram_Mcast_QoS (void)
	Default dtor.
int	subscribe (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, int reuse_addr=1, const ACE_TCHAR *net_if=0, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, ACE_QoS_Session *qos_session=0)
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASentTo>).
ACE_QoS_Manager	qos_manager (void)
	Returns the QoS manager for this socket.
int	open (const ACE_INET_Addr &addr, const ACE_QoS_Params &qos_params, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
int	subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, const ACE_TCHAR *net_if, int protocol_family, int protocol, int reuse_addr, ACE_Protocol_Info *protocolinfo)
	Subscribe to the multicast interface using QoS-enabled semantics.
Private Attributes
ACE_QoS_Manager	qos_manager_
	Manages the QoS sessions that this socket subscribes to.

---

Detailed Description

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast.

---

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_SOCK_Dgram_Mcast_QoS

(

options

opts = DEFOPTS

)

Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

ACE_SOCK_Dgram_Mcast_QoS::~ACE_SOCK_Dgram_Mcast_QoS

(

void

)

[inline]

Default dtor.

---

Member Function Documentation

int ACE_SOCK_Dgram_Mcast_QoS::open	(	const ACE_INET_Addr &	addr,
		const ACE_QoS_Params &	qos_params,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0
	)

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager

(

void

)

[inline]

Returns the QoS manager for this socket.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASentTo>). Returns 0 on success.

Reimplemented from ACE_SOCK_Dgram.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Send an n byte buf to the datagram socket (uses <WSASentTo>).

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Mcast_QoS::subscribe	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		int	reuse_addr = 1,
		const ACE_TCHAR *	net_if = 0,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		ACE_QoS_Session *	qos_session = 0
	)

This is a QoS-enabled method for joining a multicast group, which passes <qos_params> via <ACE_OS::join_leaf>. The network interface device driver is instructed to accept datagrams with <mcast_addr> multicast addresses. If the socket has already been opened, <subscribe> closes the socket and opens a new socket bound to the <mcast_addr>. The session object specifies the QoS session that the socket wants to subscribe to. A socket may subscribe to multiple QoS sessions by calling this method multiple times with different session objects.

The <net_if> interface is hardware specific, e.g., use "netstat -i" to find whether your interface is, such as "le0" or something else. If net_if == 0, <subscribe> uses the default mcast interface. Returns: -1 if the call fails.

Note that some platforms, such as pSoS, support only number, not names, for network interfaces. For these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

int ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		const ACE_TCHAR *	net_if,
		int	protocol_family,
		int	protocol,
		int	reuse_addr,
		ACE_Protocol_Info *	protocolinfo
	)		[private]

Subscribe to the multicast interface using QoS-enabled semantics.

---

Member Data Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram_Mcast.

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager_ [private]

Manages the QoS sessions that this socket subscribes to.

---

The documentation for this class was generated from the following files:

• SOCK_Dgram_Mcast_QoS.h
• SOCK_Dgram_Mcast_QoS.cpp
• SOCK_Dgram_Mcast_QoS.inl
