TAO_ESF_Peer_Admin Class Reference

Extend the Proxy_Admin interface to provide methods for filtering. More...

#include <ESF_Peer_Admin.h>

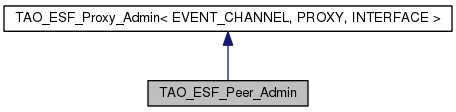

Inheritance diagram for TAO_ESF_Peer_Admin:

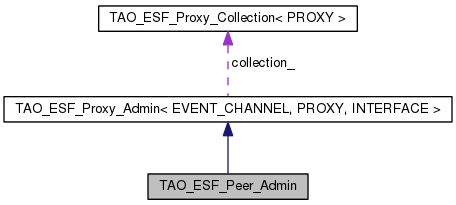

Collaboration diagram for TAO_ESF_Peer_Admin:

List of all members.

Public Member Functions
	TAO_ESF_Peer_Admin (EVENT_CHANNEL *ec)
	Constructor.
virtual	~TAO_ESF_Peer_Admin (void)
	destructor
virtual void	peer_connected (PEER *peer)
virtual void	peer_reconnected (PEER *peer)
virtual void	peer_disconnected (PEER *peer)

---

Detailed Description

Extend the Proxy_Admin interface to provide methods for filtering.

Some Event Services that perform filtering have to propagate the consumer connect/disconnect activities to the suppliers, and vice-versa. In that scenario the ESF_Proxy_Admin<> interface is augmented with connected()/reconnected()/disconnected() operations for the proxy peers (i.e. the ProxySuppliers for the ProxyConsumers and vice-versa).

Requirements

In addition to the requirements imposed by ESF_Proxy_Admin<> the PROXY interface must implement:

 * void connected (PEER *peer) throw ();
 * void reconnected (PEER *peer) throw ();
 * void disconnected (PEER *peer) throw ();
 *

Similarly, the PEER interface must implement:

 * void connected (PROXY *proxy) throw ();
 * void reconnected (PROXY *proxy) throw ();
 * void disconnected (PROXY *proxy) throw ();
 *

---

Constructor & Destructor Documentation

TAO_ESF_Peer_Admin::TAO_ESF_Peer_Admin

(

EVENT_CHANNEL *

ec

)

Constructor.

TAO_ESF_Peer_Admin::~TAO_ESF_Peer_Admin

(

void

)

[virtual]

destructor

---

Member Function Documentation

void TAO_ESF_Peer_Admin::peer_connected

(

PEER *

peer

)

[virtual]

A <peer> has connected, this is invoked when the peer's client has invoked the connect_xxx_yyy() method. The default implementation is a no-op.

void TAO_ESF_Peer_Admin::peer_disconnected

(

PEER *

peer

)

[virtual]

A <peer> has been disconnected. The default implementation removes the object from the collection and deactivates the proxy.

void TAO_ESF_Peer_Admin::peer_reconnected

(

PEER *

peer

)

[virtual]

A <peer> has reconnected, i.e. its client has invoked the connect_xxx_yyy() method, but the peer was connected already. The default implementation delegates on the collection <reconnected> method

---

The documentation for this class was generated from the following files:

• ESF_Peer_Admin.h
• ESF_Peer_Admin.cpp
