Template class for storing the collection of Proxys. More...

#include <Event_Map_T.h>

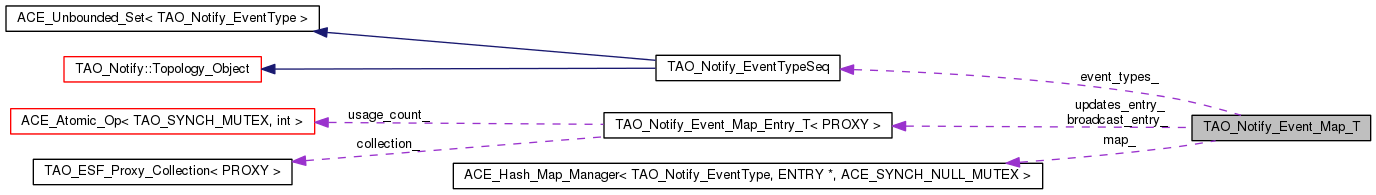

Collaboration diagram for TAO_Notify_Event_Map_T:

Public Types
typedef TAO_Notify_Event_Map_Entry_T < PROXY >	ENTRY
Public Member Functions
	TAO_Notify_Event_Map_T (void)
	Constructor.
	~TAO_Notify_Event_Map_T ()
	Destructor.
void	init (void)
	Init.
void	connect (PROXY *proxy)
	Connect a PROXY.
void	disconnect (PROXY *proxy)
	Disconnect a PROXY.
int	insert (PROXY *proxy, const TAO_Notify_EventType &event_type)
int	remove (PROXY *proxy, const TAO_Notify_EventType &event_type)
ENTRY *	find (const TAO_Notify_EventType &event_type)
ENTRY::COLLECTION *	broadcast_collection (void)
	Find the default broadcast list.
ENTRY::COLLECTION *	updates_collection (void)
	Find the update list. This is all the PROXYS connected to this Map.
void	release (ENTRY *entry)
	Release the usage count on this entry.
const TAO_Notify_EventTypeSeq &	event_types (void)
	Access all the event types available.
int	proxy_count (void)
	Access number of proxys connected in all.
Protected Attributes
ACE_Hash_Map_Manager < TAO_Notify_EventType, ENTRY *, ACE_SYNCH_NULL_MUTEX >	map_
	The Map that stores eventtype to entry mapping.
ACE_LOCK	lock_
	The lock to use.
int	proxy_count_
	Count of proxys connected.
ENTRY	broadcast_entry_
	The default broadcast list for EventType::special.
ENTRY	updates_entry_
	Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.
TAO_Notify_EventTypeSeq	event_types_
	The event types that are available in this map.

Detailed Description

Template class for storing the collection of Proxys.

Member Typedef Documentation

typedef TAO_Notify_Event_Map_Entry_T<PROXY> TAO_Notify_Event_Map_T::ENTRY

Constructor & Destructor Documentation

TAO_Notify_Event_Map_T::TAO_Notify_Event_Map_T ( void )

Constructor.

TAO_Notify_Event_Map_T::~TAO_Notify_Event_Map_T ( )

Destructor.

Member Function Documentation

TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T::broadcast_collection ( void )

Find the default broadcast list.

void TAO_Notify_Event_Map_T::connect ( PROXY * proxy )

Connect a PROXY.

void TAO_Notify_Event_Map_T::disconnect ( PROXY * proxy )

Disconnect a PROXY.

const TAO_Notify_EventTypeSeq & TAO_Notify_Event_Map_T::event_types ( void )

Access all the event types available.

TAO_Notify_Event_Map_Entry_T< PROXY > * TAO_Notify_Event_Map_T::find ( const TAO_Notify_EventType & event_type )

Find the collection mapped to the <event_type> The usage_count on the entry returned is incremented.

void TAO_Notify_Event_Map_T::init ( void )

Init.

int TAO_Notify_Event_Map_T::insert	(	PROXY *	proxy,
		const TAO_Notify_EventType &	event_type
	)

Associate PROXY and event_type. Returns 1 if <event_type> is being seem for the 1st time otherwise returns 0. Returns -1 on error.

int TAO_Notify_Event_Map_T::proxy_count ( void )

Access number of proxys connected in all.

void TAO_Notify_Event_Map_T::release ( ENTRY * entry )

Release the usage count on this entry.

int TAO_Notify_Event_Map_T::remove	(	PROXY *	proxy,
		const TAO_Notify_EventType &	event_type
	)

Remove association of PROXY and event_type. Returns 1 if <event_type> is being seem for the last time otherwise returns 0. Returns -1 on error.

Exec a strategy for removing entries. Strategy 1: remove_immediately Strategy 2: remove a bunch_after crossing a threshold Strategy 3: use cached allocator and 1

TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T::updates_collection ( void )

Find the update list. This is all the PROXYS connected to this Map.
