ACE_Stream_Head Class Reference

Standard task that acts as reader or writer at the head of an ACE_Stream. More...

#include <Stream_Modules.h>

Inheritance diagram for ACE_Stream_Head:

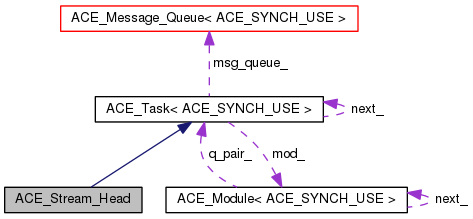

Collaboration diagram for ACE_Stream_Head:

List of all members.

Public Member Functions
	ACE_Stream_Head (void)
	Construction.
	~ACE_Stream_Head (void)
	Destruction.
virtual int	open (void *a=0)
virtual int	close (u_long flags=0)
virtual int	put (ACE_Message_Block *msg, ACE_Time_Value *=0)
virtual int	svc (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	info (ACE_TCHAR **info_string, size_t length) const
virtual int	fini (void)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
int	control (ACE_Message_Block *)
	Performs canonical flushing at the ACE_Stream Head.
int	canonical_flush (ACE_Message_Block *)

---

Detailed Description

Standard task that acts as reader or writer at the head of an ACE_Stream.

A ACE_Message_Block sent to this task (via its put() hook) triggers actions depending on the block type and whether the task is acting as a reader or a writer. If the block is of type ACE_Message_Block::MB_IOCTL, the block's is assumed to contain (beginning at its rd_ptr()) an ACE_IO_Cntl_Msg object and is processed accordingly. This is usually used to set the task's message queue high water and/or low water marks.

When the block is not ACE_Message_Block::MB_IOCTL, processing depends on the ACE_Stream_Head's role in the module:

• Reader: If the block is of type ACE_Message_Block::MB_FLUSH, the canonical_flush() method is called. (

  See also:

  ACE_Stream::canonical_flush().) If the block is any other type, it is queued on this task's message queue. It would thus be available to caller's reading blocks from the containing stream.

• Writer: The block is passed to the next module in the stream.

---

Constructor & Destructor Documentation

ACE_Stream_Head::ACE_Stream_Head

(

void

)

Construction.

ACE_Stream_Head::~ACE_Stream_Head

(

void

)

Destruction.

---

Member Function Documentation

int ACE_Stream_Head::canonical_flush

(

ACE_Message_Block *

mb

)

[private]

int ACE_Stream_Head::close

(

u_long

flags = 0

)

[virtual]

int ACE_Stream_Head::control

(

ACE_Message_Block *

mb

)

[private]

Performs canonical flushing at the ACE_Stream Head.

void ACE_Stream_Head::dump

(

void

)

const

Dump the state of an object.

Reimplemented from ACE_Task< ACE_SYNCH_USE >.

int ACE_Stream_Head::fini

(

void

)

[virtual]

int ACE_Stream_Head::info	(	ACE_TCHAR **	info_string,
		size_t	length
	)		const [virtual]

int ACE_Stream_Head::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)		[virtual]

int ACE_Stream_Head::open

(

void *

a = 0

)

[virtual]

int ACE_Stream_Head::put	(	ACE_Message_Block *	msg,
		ACE_Time_Value *	tv = 0
	)		[virtual]

int ACE_Stream_Head::svc

(

void

)

[virtual]

---

Member Data Documentation

ACE_Stream_Head::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Task< ACE_SYNCH_USE >.

---

The documentation for this class was generated from the following files:

• Stream_Modules.h
• Stream_Modules.cpp
