ACE_Base_Thread_Adapter Class Reference

Base class for all the Thread_Adapters. More...

#include <Base_Thread_Adapter.h>

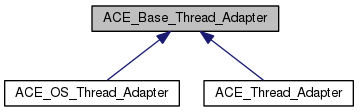

Inheritance diagram for ACE_Base_Thread_Adapter:

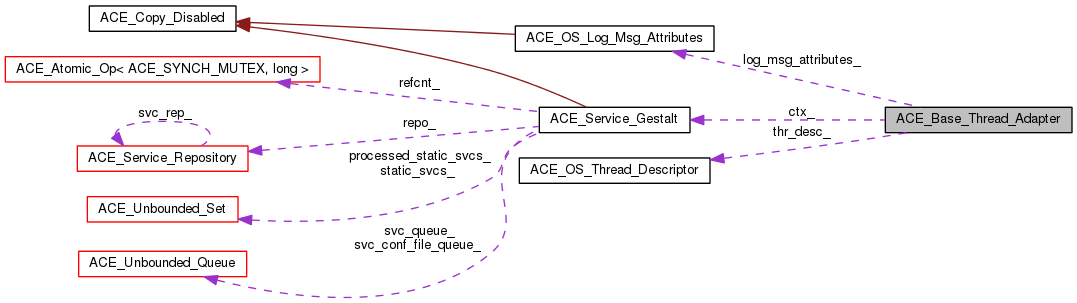

Collaboration diagram for ACE_Base_Thread_Adapter:

List of all members.

Public Member Functions
virtual	~ACE_Base_Thread_Adapter (void)
virtual ACE_THR_FUNC_RETURN	invoke (void)=0
	Virtual method invoked by the thread entry point.
ACE_THR_C_FUNC	entry_point (void)
Static Public Member Functions
static void	close_log_msg (void)
	Invoke the close_log_msg_hook, if it is present.
static void	sync_log_msg (const ACE_TCHAR *prog_name)
	Invoke the sync_log_msg_hook, if it is present.
static ACE_OS_Thread_Descriptor *	thr_desc_log_msg (void)
	Invoke the thr_desc_log_msg_hook, if it is present.
Protected Member Functions
	ACE_Base_Thread_Adapter (ACE_THR_FUNC user_func, void *arg, ACE_THR_C_FUNC entry_point=(ACE_THR_C_FUNC) ACE_THREAD_ADAPTER_NAME, ACE_OS_Thread_Descriptor *td=0, long cancel_flags=0)
	Constructor.
void	inherit_log_msg (void)
Protected Attributes
ACE_THR_FUNC	user_func_
	Thread startup function passed in by the user (C++ linkage).
void *	arg_
	Argument to thread startup function.
ACE_THR_C_FUNC	entry_point_
ACE_OS_Thread_Descriptor *	thr_desc_
ACE_OS_Log_Msg_Attributes	log_msg_attributes_
	The ACE_Log_Msg attributes.
ACE_Service_Gestalt *const	ctx_
	That is useful for gprof, define itimerval.
long	flags_
Static Private Member Functions
static void	set_log_msg_hooks (ACE_INIT_LOG_MSG_HOOK init_hook, ACE_INHERIT_LOG_MSG_HOOK inherit_hook, ACE_CLOSE_LOG_MSG_HOOK close_hook, ACE_SYNC_LOG_MSG_HOOK sync_hook, ACE_THR_DESC_LOG_MSG_HOOK thr_desc)
	Set the Log_Msg hooks.
Static Private Attributes
static ACE_INIT_LOG_MSG_HOOK	init_log_msg_hook_ = 0
	The hooks to inherit and cleanup the Log_Msg attributes.
static ACE_INHERIT_LOG_MSG_HOOK	inherit_log_msg_hook_ = 0
static ACE_CLOSE_LOG_MSG_HOOK	close_log_msg_hook_ = 0
static ACE_SYNC_LOG_MSG_HOOK	sync_log_msg_hook_ = 0
static ACE_THR_DESC_LOG_MSG_HOOK	thr_desc_log_msg_hook_ = 0
Friends
class	ACE_Log_Msg
	Allow the ACE_Log_Msg class to set its hooks.

---

Detailed Description

Base class for all the Thread_Adapters.

Converts a C++ function into a function that can be called from a thread creation routine (e.g., pthread_create() or _beginthreadex()) that expects an extern "C" entry point. This class also makes it possible to transparently provide hooks to register a thread with an ACE_Thread_Manager. This class is used in ACE_OS::thr_create(). In general, the thread that creates an object of this class is different from the thread that calls invoke() on this object. Therefore, the invoke() method is responsible for deleting itself.

---

Constructor & Destructor Documentation

ACE_Base_Thread_Adapter::~ACE_Base_Thread_Adapter

(

void

)

[virtual]

ACE_Base_Thread_Adapter::ACE_Base_Thread_Adapter	(	ACE_THR_FUNC	user_func,
		void *	arg,
		ACE_THR_C_FUNC	entry_point = (ACE_THR_C_FUNC) ACE_THREAD_ADAPTER_NAME,
		ACE_OS_Thread_Descriptor *	td = 0,
		long	cancel_flags = 0
	)		[protected]

Constructor.

---

Member Function Documentation

void ACE_Base_Thread_Adapter::close_log_msg

(

void

)

[static]

Invoke the close_log_msg_hook, if it is present.

ACE_THR_C_FUNC ACE_Base_Thread_Adapter::entry_point

(

void

)

[inline]

Accessor for the C entry point function to the OS thread creation routine.

void ACE_Base_Thread_Adapter::inherit_log_msg

(

void

)

[protected]

Inherit the logging features if the parent thread has an ACE_Log_Msg.

virtual ACE_THR_FUNC_RETURN ACE_Base_Thread_Adapter::invoke

(

void

)

[pure virtual]

Virtual method invoked by the thread entry point.

Implemented in ACE_Thread_Adapter, and ACE_OS_Thread_Adapter.

void ACE_Base_Thread_Adapter::set_log_msg_hooks	(	ACE_INIT_LOG_MSG_HOOK	init_hook,
		ACE_INHERIT_LOG_MSG_HOOK	inherit_hook,
		ACE_CLOSE_LOG_MSG_HOOK	close_hook,
		ACE_SYNC_LOG_MSG_HOOK	sync_hook,
		ACE_THR_DESC_LOG_MSG_HOOK	thr_desc
	)		[inline, static, private]

Set the Log_Msg hooks.

void ACE_Base_Thread_Adapter::sync_log_msg

(

const ACE_TCHAR *

prog_name

)

[static]

Invoke the sync_log_msg_hook, if it is present.

ACE_OS_Thread_Descriptor * ACE_Base_Thread_Adapter::thr_desc_log_msg

(

void

)

[static]

Invoke the thr_desc_log_msg_hook, if it is present.

---

Friends And Related Function Documentation

friend class ACE_Log_Msg [friend]

Allow the ACE_Log_Msg class to set its hooks.

---

Member Data Documentation

void* ACE_Base_Thread_Adapter::arg_ [protected]

Argument to thread startup function.

ACE_CLOSE_LOG_MSG_HOOK ACE_Base_Thread_Adapter::close_log_msg_hook_ = 0 [static, private]

ACE_Service_Gestalt* const ACE_Base_Thread_Adapter::ctx_ [protected]

That is useful for gprof, define itimerval.

Keep a reference to the configuration context that spawns the thread so the child can inherit it.

ACE_THR_C_FUNC ACE_Base_Thread_Adapter::entry_point_ [protected]

Entry point to the underlying OS thread creation call (C linkage).

long ACE_Base_Thread_Adapter::flags_ [protected]

Pass through the thread-creation flags that can only be acted on by the spawned thread. Currently this is only the cancellation-related flags.

ACE_INHERIT_LOG_MSG_HOOK ACE_Base_Thread_Adapter::inherit_log_msg_hook_ = 0 [static, private]

ACE_INIT_LOG_MSG_HOOK ACE_Base_Thread_Adapter::init_log_msg_hook_ = 0 [static, private]

The hooks to inherit and cleanup the Log_Msg attributes.

ACE_OS_Log_Msg_Attributes ACE_Base_Thread_Adapter::log_msg_attributes_ [protected]

The ACE_Log_Msg attributes.

ACE_SYNC_LOG_MSG_HOOK ACE_Base_Thread_Adapter::sync_log_msg_hook_ = 0 [static, private]

ACE_OS_Thread_Descriptor* ACE_Base_Thread_Adapter::thr_desc_ [protected]

Optional thread descriptor. Passing this pointer in will force the spawned thread to cache this location in Log_Msg and wait until Thread_Manager fills in all information in thread descriptor.

ACE_THR_DESC_LOG_MSG_HOOK ACE_Base_Thread_Adapter::thr_desc_log_msg_hook_ = 0 [static, private]

ACE_THR_FUNC ACE_Base_Thread_Adapter::user_func_ [protected]

Thread startup function passed in by the user (C++ linkage).

---

The documentation for this class was generated from the following files:

• Base_Thread_Adapter.h
• Base_Thread_Adapter.cpp
• Base_Thread_Adapter.inl
