ACE_Timer_Hash_T Class Reference

Provides a hash table of BUCKETs as an implementation for a timer queue. More...

#include <Timer_Hash_T.h>

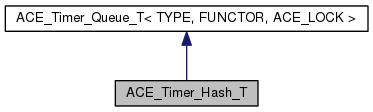

Inheritance diagram for ACE_Timer_Hash_T:
Inheritance graph
[legend]

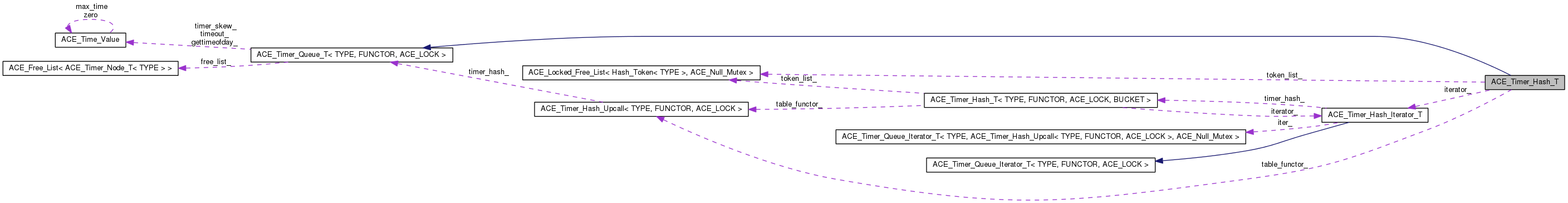

Collaboration diagram for ACE_Timer_Hash_T:
Collaboration graph
[legend]

List of all members.

Public Types

typedef
ACE_Timer_Hash_Iterator_T
< TYPE, FUNCTOR, ACE_LOCK,
BUCKET >
HASH_ITERATOR
 Type of iterator.
typedef ACE_Timer_Queue_T
< TYPE, FUNCTOR, ACE_LOCK >
INHERITED
 Type inherited from.

Public Member Functions

 ACE_Timer_Hash_T (size_t table_size, FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
 ACE_Timer_Hash_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
virtual ~ACE_Timer_Hash_T (void)
 Destructor.
virtual bool is_empty (void) const
 True if queue is empty, else false.
virtual const ACE_Time_Valueearliest_time (void) const
virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int expire (void)
virtual int expire (const ACE_Time_Value &current_time)
virtual
ACE_Timer_Queue_Iterator_T
< TYPE, FUNCTOR, ACE_LOCK > &
iter (void)
 Returns a pointer to this ACE_Timer_Queue's iterator.
virtual ACE_Timer_Node_T< TYPE > * remove_first (void)
 Removes the earliest node from the queue and returns it.
virtual void dump (void) const
 Dump the state of an object.
virtual ACE_Timer_Node_T< TYPE > * get_first (void)
 Reads the earliest node from the queue and returns it.

Protected Member Functions

virtual void free_node (ACE_Timer_Node_T< TYPE > *)
 Factory method that frees a previously allocated node.

Private Member Functions

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
virtual int dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
 Non-locking version of dispatch_info ()
virtual void reschedule (ACE_Timer_Node_T< TYPE > *)
 Reschedule an "interval" ACE_Timer_Node.
void find_new_earliest (void)
 Finds the earliest node.
 ACE_Timer_Hash_T (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
void operator= (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)

Private Attributes

size_t size_
 Keeps track of the size of the queue.
BUCKET ** table_
 Table of BUCKETS.
size_t table_size_
 Keeps track of the size of table_.
ACE_Timer_Hash_Upcall< TYPE,
FUNCTOR, ACE_LOCK >
table_functor_
 Functor used for the table's timer queues.
size_t earliest_position_
 Index to the position with the earliest entry.
HASH_ITERATORiterator_
 Iterator used to expire timers.
ACE_Locked_Free_List
< Hash_Token< TYPE >
, ACE_Null_Mutex
token_list_

Friends

class ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >
 Iterator is a friend.

Detailed Description

Provides a hash table of BUCKETs as an implementation for a timer queue.

This implementation uses a hash table of BUCKETs. The hash is based on the time_value of the event. Unlike other Timer Queues, ACE_Timer_Hash does not expire events in order.


Member Typedef Documentation

typedef ACE_Timer_Hash_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, BUCKET> ACE_Timer_Hash_T::HASH_ITERATOR

Type of iterator.

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T::INHERITED

Type inherited from.


Constructor & Destructor Documentation

ACE_Timer_Hash_T::ACE_Timer_Hash_T ( size_t  table_size,
FUNCTOR *  upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *  freelist = 0
)

Default constructor. table_size determines the size of the hash table. upcall_functor is the instance of the FUNCTOR to be used by the buckets. If upcall_functor is 0, a default FUNCTOR will be created.

ACE_Timer_Hash_T::ACE_Timer_Hash_T ( FUNCTOR *  upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *  freelist = 0
)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Hash will create a default FUNCTOR. freelist the freelist of timer nodes. If 0, then a default freelist will be created. The default size will be ACE_DEFAULT_TIMERS and there will be no preallocation.

virtual ACE_Timer_Hash_T::~ACE_Timer_Hash_T ( void  ) [virtual]

Destructor.

ACE_Timer_Hash_T::ACE_Timer_Hash_T ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &  ) [private]

Member Function Documentation

virtual int ACE_Timer_Hash_T::cancel ( const TYPE &  type,
int  dont_call_handle_close = 1
) [virtual]

Cancel all timer associated with type. If <dont_call> is 0 then the <functor> will be invoked. Returns number of timers cancelled. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual int ACE_Timer_Hash_T::cancel ( long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
) [virtual]

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual int ACE_Timer_Hash_T::dispatch_info_i ( const ACE_Time_Value current_time,
ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info
) [private, virtual]

Non-locking version of dispatch_info ()

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual void ACE_Timer_Hash_T::dump ( void  ) const [virtual]

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual const ACE_Time_Value& ACE_Timer_Hash_T::earliest_time ( void  ) const [virtual]

Returns the time of the earlier node in the <ACE_Timer_Hash>. Must be called on a non-empty queue.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual int ACE_Timer_Hash_T::expire ( void  ) [virtual]

Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual int ACE_Timer_Hash_T::expire ( const ACE_Time_Value current_time) [virtual]

Run the <functor> for all timers whose values are <= current_time. This does not account for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

void ACE_Timer_Hash_T::find_new_earliest ( void  ) [private]

Finds the earliest node.

virtual void ACE_Timer_Hash_T::free_node ( ACE_Timer_Node_T< TYPE > *  ) [protected, virtual]

Factory method that frees a previously allocated node.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Hash_T::get_first ( void  ) [virtual]

Reads the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual bool ACE_Timer_Hash_T::is_empty ( void  ) const [virtual]

True if queue is empty, else false.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual ACE_Timer_Queue_Iterator_T<TYPE, FUNCTOR, ACE_LOCK>& ACE_Timer_Hash_T::iter ( void  ) [virtual]

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

void ACE_Timer_Hash_T::operator= ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &  ) [private]
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Hash_T::remove_first ( void  ) [virtual]

Removes the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual void ACE_Timer_Hash_T::reschedule ( ACE_Timer_Node_T< TYPE > *  ) [private, virtual]

Reschedule an "interval" ACE_Timer_Node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual int ACE_Timer_Hash_T::reset_interval ( long  timer_id,
const ACE_Time_Value interval
) [virtual]

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

virtual long ACE_Timer_Hash_T::schedule_i ( const TYPE &  type,
const void *  act,
const ACE_Time_Value future_time,
const ACE_Time_Value interval
) [private, virtual]

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that is a pointer to a token which stores information about the event. This <timer_id> can be used to cancel the timer before it expires. Returns -1 on failure.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.


Friends And Related Function Documentation

friend class ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > [friend]

Iterator is a friend.


Member Data Documentation

Index to the position with the earliest entry.

Iterator used to expire timers.

size_t ACE_Timer_Hash_T::size_ [private]

Keeps track of the size of the queue.

BUCKET** ACE_Timer_Hash_T::table_ [private]

Table of BUCKETS.

ACE_Timer_Hash_Upcall<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T::table_functor_ [private]

Functor used for the table's timer queues.

Keeps track of the size of table_.

Hash_Token is usually allocated in schedule but its deallocation is problematic and token_list_ helps with this.


The documentation for this class was generated from the following file:
