ACE  6.0.6
Public Types | Public Member Functions | Public Attributes | Protected Member Functions | Private Member Functions | Private Attributes
ACE_Oneshot_Acceptor Class Reference

Generic factory for passively connecting clients and creating exactly one service handler of the type SVC_HANDLER specified in the template. More...

#include <Acceptor.h>

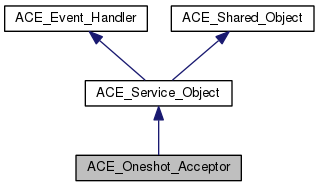

Inheritance diagram for ACE_Oneshot_Acceptor:
Inheritance graph
[legend]

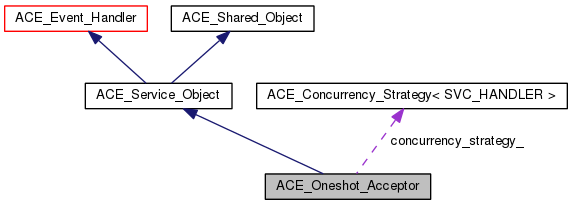

Collaboration diagram for ACE_Oneshot_Acceptor:
Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_PEER_ACCEPTOR_ADDR addr_type
typedef ACE_PEER_ACCEPTOR acceptor_type
typedef SVC_HANDLER handler_type
typedef SVC_HANDLER::stream_type stream_type

Public Member Functions

 ACE_Oneshot_Acceptor (void)
 Constructor.
 ACE_Oneshot_Acceptor (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *reactor=ACE_Reactor::instance(), ACE_Concurrency_Strategy< SVC_HANDLER > *=0)
int open (const ACE_PEER_ACCEPTOR_ADDR &, ACE_Reactor *reactor=ACE_Reactor::instance(), ACE_Concurrency_Strategy< SVC_HANDLER > *=0)
virtual ~ACE_Oneshot_Acceptor (void)
 Close down the {Oneshot_Acceptor}.
virtual int accept (SVC_HANDLER *=0, ACE_PEER_ACCEPTOR_ADDR *remote_addr=0, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, bool restart=true, bool reset_new_handle=false)
virtual int cancel (void)
 Cancel a oneshot acceptor that was started asynchronously.
virtual operator ACE_PEER_ACCEPTOR & () const
 Return the underlying {PEER_ACCEPTOR} object.
virtual ACE_PEER_ACCEPTOR & acceptor (void) const
 Return the underlying {PEER_ACCEPTOR} object.
virtual int close (void)
 Close down the {Oneshot_Acceptor}.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

virtual int activate_svc_handler (SVC_HANDLER *svc_handler)
int shared_accept (SVC_HANDLER *svc_handler, ACE_PEER_ACCEPTOR_ADDR *remote_addr, ACE_Time_Value *timeout, bool restart, bool reset_new_handle)
virtual ACE_HANDLE get_handle (void) const
 Returns the listening acceptor's {ACE_HANDLE}.
virtual int handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual int handle_input (ACE_HANDLE)
virtual int handle_timeout (const ACE_Time_Value &tv, const void *arg)
 Called when an acceptor times out...
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual int info (ACE_TCHAR **, size_t) const
 Default version returns address info in {buf}.
virtual int suspend (void)
virtual int resume (void)

Private Member Functions

int register_handler (SVC_HANDLER *svc_handler, const ACE_Synch_Options &options, bool restart)

Private Attributes

SVC_HANDLER * svc_handler_
 Hold the svc_handler_ across asynchrony boundaries.
bool restart_
 Hold the restart flag across asynchrony boundaries.
ACE_PEER_ACCEPTOR peer_acceptor_
 Factory that establishes connections passively.
ACE_Concurrency_Strategy
< SVC_HANDLER > *
concurrency_strategy_
 Concurrency strategy for an Acceptor.
bool delete_concurrency_strategy_

Detailed Description

Generic factory for passively connecting clients and creating exactly one service handler of the type SVC_HANDLER specified in the template.

This class works similarly to the regular ACE_Acceptor, but with the following differences:

  1. ACE_Oneshot_Acceptor doesn't automatically register itself with the ACE_Reactor; the caller is expected to call the accept() method directly. Since a later call to accept() may require a reactor, the constructor and open() methods both accept an ACE_Reactor pointer which is saved in case it's needed in accept().
  2. ACE_Oneshot_Acceptor doesn't need an ACE_Creation_Strategy (because the user supplies the SVC_HANDLER) or an ACE_Accept_Strategy (because this class only accepts one connection and then removes all traces of itself from the ACE_Reactor if it was registered for asynchronous accepts).

The usage model for ACE_Oneshot_Acceptor is:


Member Typedef Documentation

typedef ACE_PEER_ACCEPTOR ACE_Oneshot_Acceptor::acceptor_type
typedef ACE_PEER_ACCEPTOR_ADDR ACE_Oneshot_Acceptor::addr_type
typedef SVC_HANDLER::stream_type ACE_Oneshot_Acceptor::stream_type

Constructor & Destructor Documentation

ACE_Oneshot_Acceptor::ACE_Oneshot_Acceptor ( void  )

Constructor.

ACE_Oneshot_Acceptor::ACE_Oneshot_Acceptor ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
ACE_Reactor reactor = ACE_Reactor::instance (),
ACE_Concurrency_Strategy< SVC_HANDLER > *  cs = 0
)

Initialize the appropriate strategies for concurrency and then open the acceptor at the designated local_addr. Note that unlike ACE_Acceptor and ACE_Strategy_Acceptor, this method does NOT register this acceptor with the reactor at this point -- the reactor parameter is saved in case it's needed later.

ACE_Oneshot_Acceptor::~ACE_Oneshot_Acceptor ( void  ) [virtual]

Close down the {Oneshot_Acceptor}.


Member Function Documentation

int ACE_Oneshot_Acceptor::accept ( SVC_HANDLER *  svc_handler = 0,
ACE_PEER_ACCEPTOR_ADDR *  remote_addr = 0,
const ACE_Synch_Options synch_options = ACE_Synch_Options::defaults,
bool  restart = true,
bool  reset_new_handle = false
) [virtual]

Create a {SVC_HANDLER}, accept the connection into the {SVC_HANDLER}, and activate the {SVC_HANDLER}.

ACE_PEER_ACCEPTOR & ACE_Oneshot_Acceptor::acceptor ( void  ) const [virtual]

Return the underlying {PEER_ACCEPTOR} object.

int ACE_Oneshot_Acceptor::activate_svc_handler ( SVC_HANDLER *  svc_handler) [protected, virtual]

Bridge method for activating a {svc_handler} with the appropriate concurrency strategy. Default behavior is to activate the {SVC_HANDLER} as a "passive object." However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the {SVC_HANDLER} as an "active object" via multi-threading or multi-processing).

int ACE_Oneshot_Acceptor::cancel ( void  ) [virtual]

Cancel a oneshot acceptor that was started asynchronously.

int ACE_Oneshot_Acceptor::close ( void  ) [virtual]

Close down the {Oneshot_Acceptor}.

void ACE_Oneshot_Acceptor::dump ( void  ) const

Dump the state of an object.

int ACE_Oneshot_Acceptor::fini ( void  ) [protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

ACE_HANDLE ACE_Oneshot_Acceptor::get_handle ( void  ) const [protected, virtual]

Returns the listening acceptor's {ACE_HANDLE}.

Reimplemented from ACE_Event_Handler.

int ACE_Oneshot_Acceptor::handle_close ( ACE_HANDLE  = ACE_INVALID_HANDLE,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
) [protected, virtual]

Perform termination activities when {this} is removed from the {reactor}.

Reimplemented from ACE_Event_Handler.

int ACE_Oneshot_Acceptor::handle_input ( ACE_HANDLE  ) [protected, virtual]

Accept one connection from a client and activates the SVC_HANDLER.

Reimplemented from ACE_Event_Handler.

int ACE_Oneshot_Acceptor::handle_timeout ( const ACE_Time_Value tv,
const void *  arg
) [protected, virtual]

Called when an acceptor times out...

Reimplemented from ACE_Event_Handler.

int ACE_Oneshot_Acceptor::info ( ACE_TCHAR **  strp,
size_t  length
) const [protected, virtual]

Default version returns address info in {buf}.

Reimplemented from ACE_Shared_Object.

int ACE_Oneshot_Acceptor::init ( int  argc,
ACE_TCHAR argv[]
) [protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

int ACE_Oneshot_Acceptor::open ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
ACE_Reactor reactor = ACE_Reactor::instance (),
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0
)

Initialize the appropriate strategies for concurrency and then open the acceptor at the designated local_addr. Note that unlike ACE_Acceptor and ACE_Strategy_Acceptor, this method does NOT register this acceptor with the reactor at this point -- the reactor parameter is saved in case it's needed later.

ACE_Oneshot_Acceptor::operator ACE_PEER_ACCEPTOR & ( ) const [virtual]

Return the underlying {PEER_ACCEPTOR} object.

int ACE_Oneshot_Acceptor::register_handler ( SVC_HANDLER *  svc_handler,
const ACE_Synch_Options options,
bool  restart
) [private]

Insert ourselves into the {ACE_Reactor} so that we can continue accepting this connection asynchronously. This method should NOT be called by developers directly.

int ACE_Oneshot_Acceptor::resume ( void  ) [protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

int ACE_Oneshot_Acceptor::shared_accept ( SVC_HANDLER *  svc_handler,
ACE_PEER_ACCEPTOR_ADDR *  remote_addr,
ACE_Time_Value timeout,
bool  restart,
bool  reset_new_handle
) [protected]

Factors out the code shared between the {accept} and {handle_input} methods.

int ACE_Oneshot_Acceptor::suspend ( void  ) [protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.


Member Data Documentation

Declare the dynamic allocation hooks.

Concurrency strategy for an Acceptor.

true if Acceptor created the concurrency strategy and thus should delete it, else false.

ACE_PEER_ACCEPTOR ACE_Oneshot_Acceptor::peer_acceptor_ [private]

Factory that establishes connections passively.

Hold the restart flag across asynchrony boundaries.

SVC_HANDLER* ACE_Oneshot_Acceptor::svc_handler_ [private]

Hold the svc_handler_ across asynchrony boundaries.


The documentation for this class was generated from the following files:
