ACE_Framework_Repository Class Reference

Contains all framework components used by an application. More...

#include <Framework_Component.h>

Inheritance diagram for ACE_Framework_Repository:
Inheritance graph
[legend]

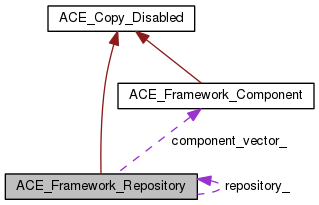

Collaboration diagram for ACE_Framework_Repository:
Collaboration graph
[legend]

List of all members.

Public Types

enum  { DEFAULT_SIZE = ACE_DEFAULT_FRAMEWORK_REPOSITORY_SIZE }

Public Member Functions

 ~ACE_Framework_Repository (void)
int open (int size=DEFAULT_SIZE)
 Initialize the repository.
int close (void)
int register_component (ACE_Framework_Component *fc)
int remove_component (const ACE_TCHAR *name)
int remove_dll_components (const ACE_TCHAR *dll_name)
 Remove all components associated with a particular dll.
int current_size (void) const
 Return the current size of the repository.
int total_size (void) const
 Return the total size of the repository.
void dump (void) const
 Dump the state of an object.

Static Public Member Functions

static ACE_Framework_Repositoryinstance (int size=ACE_Framework_Repository::DEFAULT_SIZE)
 Get pointer to a process-wide ACE_Framework_Repository.
static void close_singleton (void)
 Delete the dynamically allocated Singleton.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

 ACE_Framework_Repository (int size=ACE_Framework_Repository::DEFAULT_SIZE)
 Initialize the repository.

Private Member Functions

int remove_dll_components_i (const ACE_TCHAR *dll_name)
 Actually removes the dll components, must be called with locks held.
void compact (void)

Private Attributes

ACE_Framework_Component ** component_vector_
 Contains all the framework components.
int current_size_
 Current number of components.
int total_size_
 Maximum number of components.
ACE_SYNCH_MUTEX lock_
 Synchronization variable for the repository.

Static Private Attributes

static ACE_Framework_Repositoryrepository_ = 0
 Pointer to a process-wide ACE_Framework_Repository.
static sig_atomic_t shutting_down_ = 0

Friends

class ACE_Framework_Component

Detailed Description

Contains all framework components used by an application.

This class contains a vector of ACE_Framework_Component *'s. On destruction, framework components are destroyed in the reverse order that they were added originally.


Member Enumeration Documentation

anonymous enum
Enumerator:
DEFAULT_SIZE

Constructor & Destructor Documentation

ACE_Framework_Repository::~ACE_Framework_Repository ( void  )

Close down the repository and free up dynamically allocated resources.

ACE_Framework_Repository::ACE_Framework_Repository ( int  size = ACE_Framework_Repository::DEFAULT_SIZE) [protected]

Initialize the repository.


Member Function Documentation

int ACE_Framework_Repository::close ( void  )

Close down the repository and free up dynamically allocated resources, also called by dtor.

void ACE_Framework_Repository::close_singleton ( void  ) [static]

Delete the dynamically allocated Singleton.

void ACE_Framework_Repository::compact ( void  ) [private]

Compact component_vector_ after components have been removed__maintains order.

int ACE_Framework_Repository::current_size ( void  ) const [inline]

Return the current size of the repository.

void ACE_Framework_Repository::dump ( void  ) const

Dump the state of an object.

ACE_Framework_Repository * ACE_Framework_Repository::instance ( int  size = ACE_Framework_Repository::DEFAULT_SIZE) [static]

Get pointer to a process-wide ACE_Framework_Repository.

int ACE_Framework_Repository::open ( int  size = DEFAULT_SIZE)

Initialize the repository.

int ACE_Framework_Repository::register_component ( ACE_Framework_Component fc)

Insert a new component. Returns -1 when the repository is full and 0 on success.

int ACE_Framework_Repository::remove_component ( const ACE_TCHAR name)

Remove a component. Returns -1 on error or if component not found and 0 on success.

int ACE_Framework_Repository::remove_dll_components ( const ACE_TCHAR dll_name)

Remove all components associated with a particular dll.

int ACE_Framework_Repository::remove_dll_components_i ( const ACE_TCHAR dll_name) [private]

Actually removes the dll components, must be called with locks held.

int ACE_Framework_Repository::total_size ( void  ) const [inline]

Return the total size of the repository.


Friends And Related Function Documentation

friend class ACE_Framework_Component [friend]

Member Data Documentation

Declare the dynamic allocation hooks.

Contains all the framework components.

Current number of components.

ACE_SYNCH_MUTEX ACE_Framework_Repository::lock_ [private]

Synchronization variable for the repository.

Pointer to a process-wide ACE_Framework_Repository.

Flag set when repository is the process of shutting down. This is necessary to keep from self-deadlocking since some of the components might make calls back to the repository to unload their components, e.g., ACE_DLL_Manager.

Maximum number of components.


The documentation for this class was generated from the following files:
