A connection strategy which caches connections to peers (represented by SVC_HANDLER instances), thereby allowing subsequent re-use of unused, but available, connections. More...

#include <Cached_Connect_Strategy_T.h>

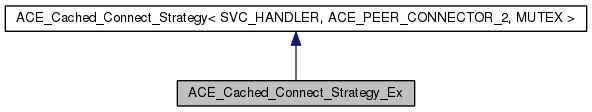

Inheritance diagram for ACE_Cached_Connect_Strategy_Ex:

[legend]

Collaboration diagram for ACE_Cached_Connect_Strategy_Ex:

[legend]

List of all members.

Public Types
typedef ACE_Refcounted_Hash_Recyclable < ACE_PEER_CONNECTOR_ADDR >	REFCOUNTED_HASH_RECYCLABLE_ADDRESS
typedef ACE_Hash_Cache_Map_Manager < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, SVC_HANDLER *, ACE_Hash < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , ACE_Equal_To < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , CACHING_STRATEGY, ATTRIBUTES >	CONNECTION_CACHE
typedef CONNECTION_CACHE::CACHE_ENTRY	CONNECTION_CACHE_ENTRY
typedef CONNECTION_CACHE::key_type	KEY
typedef CONNECTION_CACHE::mapped_type	VALUE
typedef ACE_Recyclable_Handler_Cleanup_Strategy < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair< SVC_HANDLER , ATTRIBUTES > , ACE_Hash_Map_Manager_Ex < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair< SVC_HANDLER , ATTRIBUTES >, ACE_Hash < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , ACE_Equal_To < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , MUTEX > >	CLEANUP_STRATEGY
typedef ACE_Cached_Connect_Strategy < SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >	CCSBASE
Public Member Functions
	ACE_Cached_Connect_Strategy_Ex (CACHING_STRATEGY &caching_s, ACE_Creation_Strategy< SVC_HANDLER > cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > rec_s=0, MUTEX lock=0, int delete_lock=0)
	Constructor.
virtual	~ACE_Cached_Connect_Strategy_Ex (void)
	Destructor.
virtual int	purge_connections (void)
	Explicit purging of connection entries from the connection cache.
virtual int	mark_as_closed_i (const void *recycling_act)
void	cleanup (void)
CACHING_STRATEGY &	caching_strategy (void)
Protected Member Functions
int	find (ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR > &search_addr, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry)
	Find an idle handle.
virtual int	purge_i (const void *recycling_act)
	Remove from cache (non-locking version).
virtual int	cache_i (const void *recycling_act)
	Add to cache (non-locking version).
virtual int	recycle_state_i (const void *recycling_act, ACE_Recyclable_State new_state)
	Get/Set recycle_state (non-locking version).
virtual ACE_Recyclable_State	recycle_state_i (const void *recycling_act) const
	Get <recycle_state> (non-locking version).
virtual int	cleanup_hint_i (const void recycling_act, void *act_holder)
	Cleanup hint and reset `act_holder` to zero if act_holder* != 0.
int	check_hint_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry, int &found)
virtual int	find_or_create_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry, int &found)
virtual int	connect_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, int &found)
virtual int	cached_connect (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms)
Protected Attributes
CONNECTION_CACHE	connection_cache_
	Table that maintains the cache of connected SVC_HANDLERs.

Detailed Description

A connection strategy which caches connections to peers (represented by SVC_HANDLER instances), thereby allowing subsequent re-use of unused, but available, connections.

<Cached_Connect_Strategy> is intended to be used as a plug-in connection strategy for ACE_Strategy_Connector. It's added value is re-use of established connections and tweaking the role of the cache as per the caching strategy.

Member Typedef Documentation

typedef ACE_Cached_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX> ACE_Cached_Connect_Strategy_Ex::CCSBASE

typedef ACE_Recyclable_Handler_Cleanup_Strategy<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair<SVC_HANDLER *, ATTRIBUTES>, ACE_Hash_Map_Manager_Ex<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair<SVC_HANDLER *, ATTRIBUTES>, ACE_Hash<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, ACE_Equal_To<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, MUTEX> > ACE_Cached_Connect_Strategy_Ex::CLEANUP_STRATEGY

typedef ACE_Hash_Cache_Map_Manager<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, SVC_HANDLER *, ACE_Hash<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, ACE_Equal_To<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, CACHING_STRATEGY, ATTRIBUTES> ACE_Cached_Connect_Strategy_Ex::CONNECTION_CACHE

typedef CONNECTION_CACHE::CACHE_ENTRY ACE_Cached_Connect_Strategy_Ex::CONNECTION_CACHE_ENTRY

typedef CONNECTION_CACHE::key_type ACE_Cached_Connect_Strategy_Ex::KEY

typedef ACE_Refcounted_Hash_Recyclable<ACE_PEER_CONNECTOR_ADDR> ACE_Cached_Connect_Strategy_Ex::REFCOUNTED_HASH_RECYCLABLE_ADDRESS

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

Reimplemented in ACE_Bounded_Cached_Connect_Strategy.

typedef CONNECTION_CACHE::mapped_type ACE_Cached_Connect_Strategy_Ex::VALUE

Constructor & Destructor Documentation

ACE_Cached_Connect_Strategy_Ex::ACE_Cached_Connect_Strategy_Ex	(	CACHING_STRATEGY &	caching_s,
		ACE_Creation_Strategy< SVC_HANDLER > *	cre_s = `0`,
		ACE_Concurrency_Strategy< SVC_HANDLER > *	con_s = `0`,
		ACE_Recycling_Strategy< SVC_HANDLER > *	rec_s = `0`,
		MUTEX *	lock = `0`,
		int	delete_lock = `0`
	)

Constructor.

virtual ACE_Cached_Connect_Strategy_Ex::~ACE_Cached_Connect_Strategy_Ex ( void ) [virtual]

Destructor.

Member Function Documentation

virtual int ACE_Cached_Connect_Strategy_Ex::cache_i ( const void * recycling_act ) [protected, virtual]

Add to cache (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

virtual int ACE_Cached_Connect_Strategy_Ex::cached_connect	(	SVC_HANDLER *&	sh,
		const ACE_PEER_CONNECTOR_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const ACE_PEER_CONNECTOR_ADDR &	local_addr,
		bool	reuse_addr,
		int	flags,
		int	perms
	)		`[protected, virtual]`

Connection of the svc_handler with the remote host. This method also encapsulates the connection done with auto_purging under the hood. If the connect failed due to the process running out of file descriptors then, auto_purging of some connections are done from the CONNECTION_CACHE. This frees the descriptors which get used in the connect process and hence the connect operation can succeed.

CACHING_STRATEGY& ACE_Cached_Connect_Strategy_Ex::caching_strategy ( void )

int ACE_Cached_Connect_Strategy_Ex::check_hint_i	(	SVC_HANDLER *&	sh,
		const ACE_PEER_CONNECTOR_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const ACE_PEER_CONNECTOR_ADDR &	local_addr,
		bool	reuse_addr,
		int	flags,
		int	perms,
		ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &	entry,
		int &	found
	)		`[protected]`

void ACE_Cached_Connect_Strategy_Ex::cleanup ( void )

Since g++ version < 2.8 arent happy with templates, this special method had to be devised to avoid memory leaks and perform cleanup of the <connection_cache_>.

virtual int ACE_Cached_Connect_Strategy_Ex::cleanup_hint_i	(	const void *	recycling_act,
		void **	act_holder
	)		`[protected, virtual]`

Cleanup hint and reset *act_holder to zero if act_holder != 0.

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

virtual int ACE_Cached_Connect_Strategy_Ex::connect_svc_handler_i	(	SVC_HANDLER *&	sh,
		const ACE_PEER_CONNECTOR_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const ACE_PEER_CONNECTOR_ADDR &	local_addr,
		bool	reuse_addr,
		int	flags,
		int	perms,
		int &	found
	)		`[protected, virtual]`

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

int ACE_Cached_Connect_Strategy_Ex::find	(	ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR > &	search_addr,
		ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &	entry
	)		`[protected]`

Find an idle handle.

virtual int ACE_Cached_Connect_Strategy_Ex::find_or_create_svc_handler_i	(	SVC_HANDLER *&	sh,
		const ACE_PEER_CONNECTOR_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const ACE_PEER_CONNECTOR_ADDR &	local_addr,
		bool	reuse_addr,
		int	flags,
		int	perms,
		ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &	entry,
		int &	found
	)		`[protected, virtual]`

Reimplemented in ACE_Bounded_Cached_Connect_Strategy.

virtual int ACE_Cached_Connect_Strategy_Ex::mark_as_closed_i ( const void * recycling_act ) [virtual]

Mark as closed (non-locking version). This is used during the cleanup of the connections purged.

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

virtual int ACE_Cached_Connect_Strategy_Ex::purge_connections ( void ) [virtual]

Explicit purging of connection entries from the connection cache.

virtual int ACE_Cached_Connect_Strategy_Ex::purge_i ( const void * recycling_act ) [protected, virtual]

Remove from cache (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

virtual int ACE_Cached_Connect_Strategy_Ex::recycle_state_i	(	const void *	recycling_act,
		ACE_Recyclable_State	new_state
	)		`[protected, virtual]`

Get/Set recycle_state (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

virtual ACE_Recyclable_State ACE_Cached_Connect_Strategy_Ex::recycle_state_i ( const void * recycling_act ) const [protected, virtual]

Get <recycle_state> (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

Member Data Documentation

CONNECTION_CACHE ACE_Cached_Connect_Strategy_Ex::connection_cache_ [protected]

Table that maintains the cache of connected SVC_HANDLERs.

The documentation for this class was generated from the following file:

Cached_Connect_Strategy_T.h
