RTCORBA::RTORB implementation. More...

#include <RT_ORB.h>

Inheritance diagram for TAO_RT_ORB:

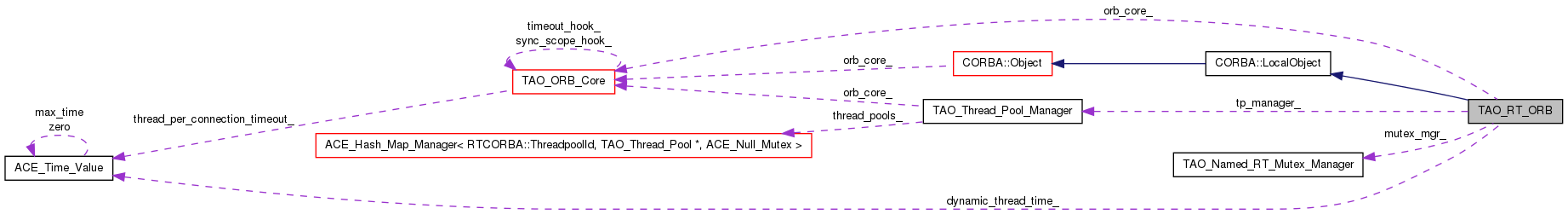

Collaboration diagram for TAO_RT_ORB:

Public Member Functions
	TAO_RT_ORB (TAO_ORB_Core *orb_core, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
	Constructor.
virtual RTCORBA::Mutex_ptr	create_mutex (void)
virtual void	destroy_mutex (RTCORBA::Mutex_ptr the_mutex)
virtual RTCORBA::Mutex_ptr	create_named_mutex (const char *name, CORBA::Boolean_out created_flag)
virtual RTCORBA::Mutex_ptr	open_named_mutex (const char *name)
	Retrieve a previously created mutex.
RTCORBA::TCPProtocolProperties_ptr	create_tcp_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
RTCORBA::UnixDomainProtocolProperties_ptr	create_unix_domain_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size)
RTCORBA::SharedMemoryProtocolProperties_ptr	create_shared_memory_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Long preallocate_buffer_size, const char mmap_filename, const char mmap_lockname)
RTCORBA::UserDatagramProtocolProperties_ptr	create_user_datagram_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean enable_network_priority)
RTCORBA::StreamControlProtocolProperties_ptr	create_stream_control_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
virtual RTCORBA::ThreadpoolId	create_threadpool (CORBA::ULong stacksize, CORBA::ULong static_threads, CORBA::ULong dynamic_threads, RTCORBA::Priority default_priority, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
	Create a RTCORBA threadpool to manage a set of threads without lanes.
virtual RTCORBA::ThreadpoolId	create_threadpool_with_lanes (CORBA::ULong stacksize, const RTCORBA::ThreadpoolLanes &lanes, CORBA::Boolean allow_borrowing, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
virtual void	destroy_threadpool (RTCORBA::ThreadpoolId threadpool)
	Free the resources associated with the specified threadpool.
virtual RTCORBA::PriorityModelPolicy_ptr	create_priority_model_policy (RTCORBA::PriorityModel priority_model, RTCORBA::Priority server_priority)
	Create a priority model policy for use when configuring a POA.
virtual RTCORBA::ThreadpoolPolicy_ptr	create_threadpool_policy (RTCORBA::ThreadpoolId threadpool)
	Create a ThreadpoolPolicy instance for POA creation.
virtual RTCORBA::PriorityBandedConnectionPolicy_ptr	create_priority_banded_connection_policy (const RTCORBA::PriorityBands &priority_bands)
virtual RTCORBA::PrivateConnectionPolicy_ptr	create_private_connection_policy (void)
virtual RTCORBA::ServerProtocolPolicy_ptr	create_server_protocol_policy (const RTCORBA::ProtocolList &protocols)
virtual RTCORBA::ClientProtocolPolicy_ptr	create_client_protocol_policy (const RTCORBA::ProtocolList &protocols)
TAO_ORB_Core *	orb_core (void) const
	Reference to our creating ORB Core.
TAO_Thread_Pool_Manager &	tp_manager (void) const
	Get the Thread Pool Manager.
Static Public Member Functions
static int	modify_thread_scheduling_policy (CORBA::ORB_ptr orb)
Protected Member Functions
virtual	~TAO_RT_ORB (void)
Protected Attributes
TAO_ORB_Core *const	orb_core_
	Reference to our creating ORB Core.
TAO_Named_RT_Mutex_Manager	mutex_mgr_
	mutex_mgr_ manages the names associated with named mutexes.
TAO_Thread_Pool_Manager *	tp_manager_
	Thread Pool Manager.
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan_
	Dynamic thread lifespan policy.
ACE_Time_Value const	dynamic_thread_time_
	Dynamic thread run time.

Detailed Description

RTCORBA::RTORB implementation.

Creates and destroys RT CORBA objects, i.e., policies, threadpools, mutexes.

Constructor & Destructor Documentation

TAO_RT_ORB::TAO_RT_ORB	(	TAO_ORB_Core *	orb_core,
		TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan,
		ACE_Time_Value const &	dynamic_thread_time
	)

Constructor.

TAO_RT_ORB::~TAO_RT_ORB ( void ) [protected, virtual]

Protected destructor to enforce proper memory management of this reference counted object.

Member Function Documentation

RTCORBA::ClientProtocolPolicy_ptr TAO_RT_ORB::create_client_protocol_policy ( const RTCORBA::ProtocolList & protocols ) [virtual]

Create a ClientProtocolPolicy instance to select and configure communication protocols on the client side.

RTCORBA::Mutex_ptr TAO_RT_ORB::create_mutex ( void ) [virtual]

Create a new mutex. Mutexes returned by this method are the same as those used internally by the ORB, so that consistant priority inheritance/piority ceiling semantics can be guaranteed.

RTCORBA::Mutex_ptr TAO_RT_ORB::create_named_mutex	(	const char *	name,
		CORBA::Boolean_out	created_flag
	)		`[virtual]`

Create a mutex and assign a name to it. If the mutex already exists, it is returned and the created_flag is set to 0.

RTCORBA::PriorityBandedConnectionPolicy_ptr TAO_RT_ORB::create_priority_banded_connection_policy ( const RTCORBA::PriorityBands & priority_bands ) [virtual]

Create a PriorityBandedConnectionPolicy instance for use on either the client or server side

RTCORBA::PriorityModelPolicy_ptr TAO_RT_ORB::create_priority_model_policy	(	RTCORBA::PriorityModel	priority_model,
		RTCORBA::Priority	server_priority
	)		`[virtual]`

Create a priority model policy for use when configuring a POA.

RTCORBA::PrivateConnectionPolicy_ptr TAO_RT_ORB::create_private_connection_policy ( void ) [virtual]

Create a PrivateConnectionPolicy instance to use on client to request a private (non-multiplexed) transport connection to the server.

RTCORBA::ServerProtocolPolicy_ptr TAO_RT_ORB::create_server_protocol_policy ( const RTCORBA::ProtocolList & protocols ) [virtual]

Create a ServerProtocolPolicy instance to select and configure communication protocols on the server side.

RTCORBA::SharedMemoryProtocolProperties_ptr TAO_RT_ORB::create_shared_memory_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Long	preallocate_buffer_size,
		const char *	mmap_filename,
		const char *	mmap_lockname
	)

RTCORBA::StreamControlProtocolProperties_ptr TAO_RT_ORB::create_stream_control_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Boolean	enable_network_priority
	)

RTCORBA::TCPProtocolProperties_ptr TAO_RT_ORB::create_tcp_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Boolean	enable_network_priority
	)

Create and return a TCPProtocolProperties instance with the specified parameters.

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool	(	CORBA::ULong	stacksize,
		CORBA::ULong	static_threads,
		CORBA::ULong	dynamic_threads,
		RTCORBA::Priority	default_priority,
		CORBA::Boolean	allow_request_buffering,
		CORBA::ULong	max_buffered_requests,
		CORBA::ULong	max_request_buffer_size
	)		`[virtual]`

Create a RTCORBA threadpool to manage a set of threads without lanes.

RTCORBA::ThreadpoolPolicy_ptr TAO_RT_ORB::create_threadpool_policy ( RTCORBA::ThreadpoolId threadpool ) [virtual]

Create a ThreadpoolPolicy instance for POA creation.

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool_with_lanes	(	CORBA::ULong	stacksize,
		const RTCORBA::ThreadpoolLanes &	lanes,
		CORBA::Boolean	allow_borrowing,
		CORBA::Boolean	allow_request_buffering,
		CORBA::ULong	max_buffered_requests,
		CORBA::ULong	max_request_buffer_size
	)		`[virtual]`

Create a threadpool and separate it into subsets based on priorities.

RTCORBA::UnixDomainProtocolProperties_ptr TAO_RT_ORB::create_unix_domain_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size
	)

RTCORBA::UserDatagramProtocolProperties_ptr TAO_RT_ORB::create_user_datagram_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	enable_network_priority
	)

void TAO_RT_ORB::destroy_mutex ( RTCORBA::Mutex_ptr the_mutex ) [virtual]

Destroy a mutex. Currently this is a no-op since RTCORBA::Mutex instances are destroyed as soon as their reference counts go to 0.

void TAO_RT_ORB::destroy_threadpool ( RTCORBA::ThreadpoolId threadpool ) [virtual]

Free the resources associated with the specified threadpool.

int TAO_RT_ORB::modify_thread_scheduling_policy ( CORBA::ORB_ptr orb ) [static]

This method changes the scheduling policy of the calling thread to match the scheduling policy specified in the svc.conf file. The priority of the calling thread will be set to the minimum priority supported by that scheduling policy.

This method make sense on those platform (e.g., Linux) where PTHREAD_SCOPE_SYSTEM is the only scheduling scope supported. On other platforms, this method is a no-op since the only way to get the real-time threading behavior is to setup the PTHREAD_SCOPE_SYSTEM scheduling scope when a thread is being created. On such platforms, one can set the correct scheduling scope and policy when creating the thread, thus not needing to use this method.

RTCORBA::Mutex_ptr TAO_RT_ORB::open_named_mutex ( const char * name ) [virtual]

Retrieve a previously created mutex.

TAO_ORB_Core * TAO_RT_ORB::orb_core ( void ) const

Reference to our creating ORB Core.

Reimplemented from CORBA::Object.

TAO_Thread_Pool_Manager & TAO_RT_ORB::tp_manager ( void ) const

Get the Thread Pool Manager.
