This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held. For each upcall a new instance of this class is created. More...

#include <Servant_Upcall.h>

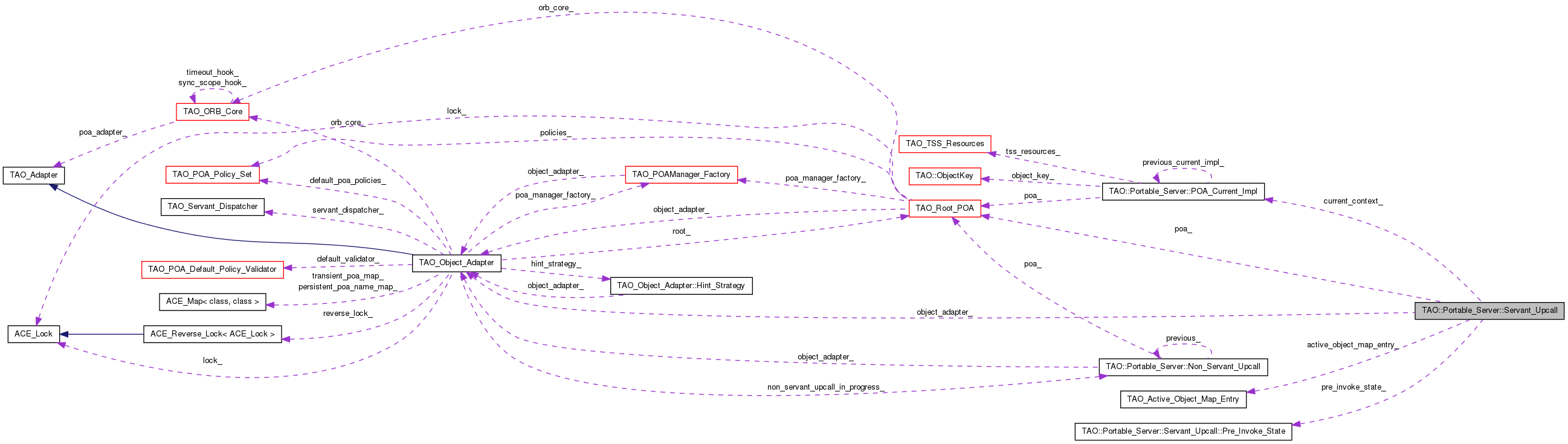

Collaboration diagram for TAO::Portable_Server::Servant_Upcall:

[legend]

List of all members.

Classes
class	Pre_Invoke_State
	This struct keeps track of state related to pre- and post-invoke operations. More...
Public Types
enum	State { INITIAL_STAGE, OBJECT_ADAPTER_LOCK_ACQUIRED, POA_CURRENT_SETUP, OBJECT_ADAPTER_LOCK_RELEASED, SERVANT_LOCK_ACQUIRED }
Public Member Functions
	Servant_Upcall (TAO_ORB_Core *orb_core)
	Constructor.
	~Servant_Upcall (void)
	Destructor.
int	prepare_for_upcall (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to)
	Locate POA and servant.
int	prepare_for_upcall_i (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to, bool &wait_occurred_restart_call)
	Helper.
void	pre_invoke_remote_request (TAO_ServerRequest &req)
	Run pre_invoke for a remote request.
void	pre_invoke_collocated_request (void)
	Run pre_invoke for a collocated request.
void	post_invoke (void)
	Run post_invoke for a request.
::TAO_Root_POA *	lookup_POA (const TAO::ObjectKey &key)
	Locate POA.
::TAO_Root_POA &	poa (void) const
	POA accessor.
TAO_Object_Adapter &	object_adapter (void) const
	Object Adapter accessor.
const PortableServer::ObjectId &	id (void) const
	System ID accessor.
void	user_id (const PortableServer::ObjectId *)
const PortableServer::ObjectId &	user_id (void) const
PortableServer::Servant	servant (void) const
	Servant accessor.
void *	locator_cookie (void) const
	Get the Servant Locator's cookie.
void	locator_cookie (void *cookie)
	Set the Servant Locator's cookie.
const char *	operation (void) const
	Get the operation name.
void	operation (const char *)
	Set the operation name.
void	active_object_map_entry (TAO_Active_Object_Map_Entry *entry)
	Set the active_object_map_entry.
TAO_Active_Object_Map_Entry *	active_object_map_entry (void) const
	Get the active_object_map_entry.
CORBA::Short	priority (void) const
	Get the priority for the current upcall.
State	state (void) const
	Get the state.
void	state (State)
	Set the state.
void	increment_servant_refcount (void)
	Increment the refcount.
Protected Member Functions
void	post_invoke_servant_cleanup (void)
void	single_threaded_poa_setup (void)
void	single_threaded_poa_cleanup (void)
void	servant_cleanup (void)
void	poa_cleanup (void)
void	upcall_cleanup (void)
	Clean-up / reset state of this Servant_Upcall object.
Protected Attributes
TAO_Object_Adapter *	object_adapter_
::TAO_Root_POA *	poa_
PortableServer::Servant	servant_
State	state_
CORBA::Octet	system_id_buf_ [TAO_POA_OBJECT_ID_BUF_SIZE]
PortableServer::ObjectId	system_id_
const PortableServer::ObjectId *	user_id_
POA_Current_Impl	current_context_
void *	cookie_
	Servant Locator's cookie.
const char *	operation_
	Operation name for this current.
TAO_Active_Object_Map_Entry *	active_object_map_entry_
Pre_Invoke_State	pre_invoke_state_
	Preinvoke data for the upcall.
Private Member Functions
	Servant_Upcall (const Servant_Upcall &)
void	operator= (const Servant_Upcall &)
Friends
class	::TAO_RT_Collocation_Resolver

Detailed Description

This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held. For each upcall a new instance of this class is created.

Member Enumeration Documentation

enum TAO::Portable_Server::Servant_Upcall::State

Enumerator:

INITIAL_STAGE
OBJECT_ADAPTER_LOCK_ACQUIRED
POA_CURRENT_SETUP
OBJECT_ADAPTER_LOCK_RELEASED
SERVANT_LOCK_ACQUIRED

Constructor & Destructor Documentation

TAO::Portable_Server::Servant_Upcall::Servant_Upcall ( TAO_ORB_Core * orb_core ) [explicit]

Constructor.

TAO::Portable_Server::Servant_Upcall::~Servant_Upcall ( void )

Destructor.

TAO::Portable_Server::Servant_Upcall::Servant_Upcall ( const Servant_Upcall & ) [private]

Member Function Documentation

void TAO::Portable_Server::Servant_Upcall::active_object_map_entry ( TAO_Active_Object_Map_Entry * entry )

Set the active_object_map_entry.

TAO_Active_Object_Map_Entry * TAO::Portable_Server::Servant_Upcall::active_object_map_entry ( void ) const

Get the active_object_map_entry.

const PortableServer::ObjectId & TAO::Portable_Server::Servant_Upcall::id ( void ) const

System ID accessor.

void TAO::Portable_Server::Servant_Upcall::increment_servant_refcount ( void )

Increment the refcount.

void * TAO::Portable_Server::Servant_Upcall::locator_cookie ( void ) const

Get the Servant Locator's cookie.

void TAO::Portable_Server::Servant_Upcall::locator_cookie ( void * cookie )

Set the Servant Locator's cookie.

TAO_Root_POA * TAO::Portable_Server::Servant_Upcall::lookup_POA ( const TAO::ObjectKey & key )

Locate POA.

TAO_Object_Adapter & TAO::Portable_Server::Servant_Upcall::object_adapter ( void ) const

Object Adapter accessor.

void TAO::Portable_Server::Servant_Upcall::operation ( const char * name )

Set the operation name.

const char * TAO::Portable_Server::Servant_Upcall::operation ( void ) const

Get the operation name.

void TAO::Portable_Server::Servant_Upcall::operator= ( const Servant_Upcall & ) [private]

TAO_Root_POA & TAO::Portable_Server::Servant_Upcall::poa ( void ) const

POA accessor.

void TAO::Portable_Server::Servant_Upcall::poa_cleanup ( void ) [protected]

void TAO::Portable_Server::Servant_Upcall::post_invoke ( void )

Run post_invoke for a request.

void TAO::Portable_Server::Servant_Upcall::post_invoke_servant_cleanup ( void ) [protected]

void TAO::Portable_Server::Servant_Upcall::pre_invoke_collocated_request ( void )

Run pre_invoke for a collocated request.

void TAO::Portable_Server::Servant_Upcall::pre_invoke_remote_request ( TAO_ServerRequest & req )

Run pre_invoke for a remote request.

int TAO::Portable_Server::Servant_Upcall::prepare_for_upcall	(	const TAO::ObjectKey &	key,
		const char *	operation,
		CORBA::Object_out	forward_to
	)

Locate POA and servant.

int TAO::Portable_Server::Servant_Upcall::prepare_for_upcall_i	(	const TAO::ObjectKey &	key,
		const char *	operation,
		CORBA::Object_out	forward_to,
		bool &	wait_occurred_restart_call
	)

Helper.

CORBA::Short TAO::Portable_Server::Servant_Upcall::priority ( void ) const

Get the priority for the current upcall.

PortableServer::Servant TAO::Portable_Server::Servant_Upcall::servant ( void ) const

Servant accessor.

void TAO::Portable_Server::Servant_Upcall::servant_cleanup ( void ) [protected]

void TAO::Portable_Server::Servant_Upcall::single_threaded_poa_cleanup ( void ) [protected]

void TAO::Portable_Server::Servant_Upcall::single_threaded_poa_setup ( void ) [protected]

void TAO::Portable_Server::Servant_Upcall::state ( Servant_Upcall::State state )

Set the state.

Servant_Upcall::State TAO::Portable_Server::Servant_Upcall::state ( void ) const

Get the state.

void TAO::Portable_Server::Servant_Upcall::upcall_cleanup ( void ) [protected]

Clean-up / reset state of this Servant_Upcall object.

const PortableServer::ObjectId & TAO::Portable_Server::Servant_Upcall::user_id ( void ) const

void TAO::Portable_Server::Servant_Upcall::user_id ( const PortableServer::ObjectId * id )

User ID accessors. This is the same value returned by PortableServer::Current::get_object_id().

Friends And Related Function Documentation

friend class ::TAO_RT_Collocation_Resolver [friend]

Member Data Documentation

TAO_Active_Object_Map_Entry* TAO::Portable_Server::Servant_Upcall::active_object_map_entry_ [protected]

Pointer to the entry in the TAO_Active_Object_Map corresponding to the servant for this request.

void* TAO::Portable_Server::Servant_Upcall::cookie_ [protected]

Servant Locator's cookie.

POA_Current_Impl TAO::Portable_Server::Servant_Upcall::current_context_ [protected]

TAO_Object_Adapter* TAO::Portable_Server::Servant_Upcall::object_adapter_ [protected]

const char* TAO::Portable_Server::Servant_Upcall::operation_ [protected]

Operation name for this current.

::TAO_Root_POA* TAO::Portable_Server::Servant_Upcall::poa_ [protected]

Pre_Invoke_State TAO::Portable_Server::Servant_Upcall::pre_invoke_state_ [protected]

Preinvoke data for the upcall.

PortableServer::Servant TAO::Portable_Server::Servant_Upcall::servant_ [protected]

State TAO::Portable_Server::Servant_Upcall::state_ [protected]

PortableServer::ObjectId TAO::Portable_Server::Servant_Upcall::system_id_ [protected]

CORBA::Octet TAO::Portable_Server::Servant_Upcall::system_id_buf_[TAO_POA_OBJECT_ID_BUF_SIZE] [protected]

const PortableServer::ObjectId* TAO::Portable_Server::Servant_Upcall::user_id_ [protected]

The documentation for this class was generated from the following files:
