ORB pseudo-object. More...

#include <ORB.h>

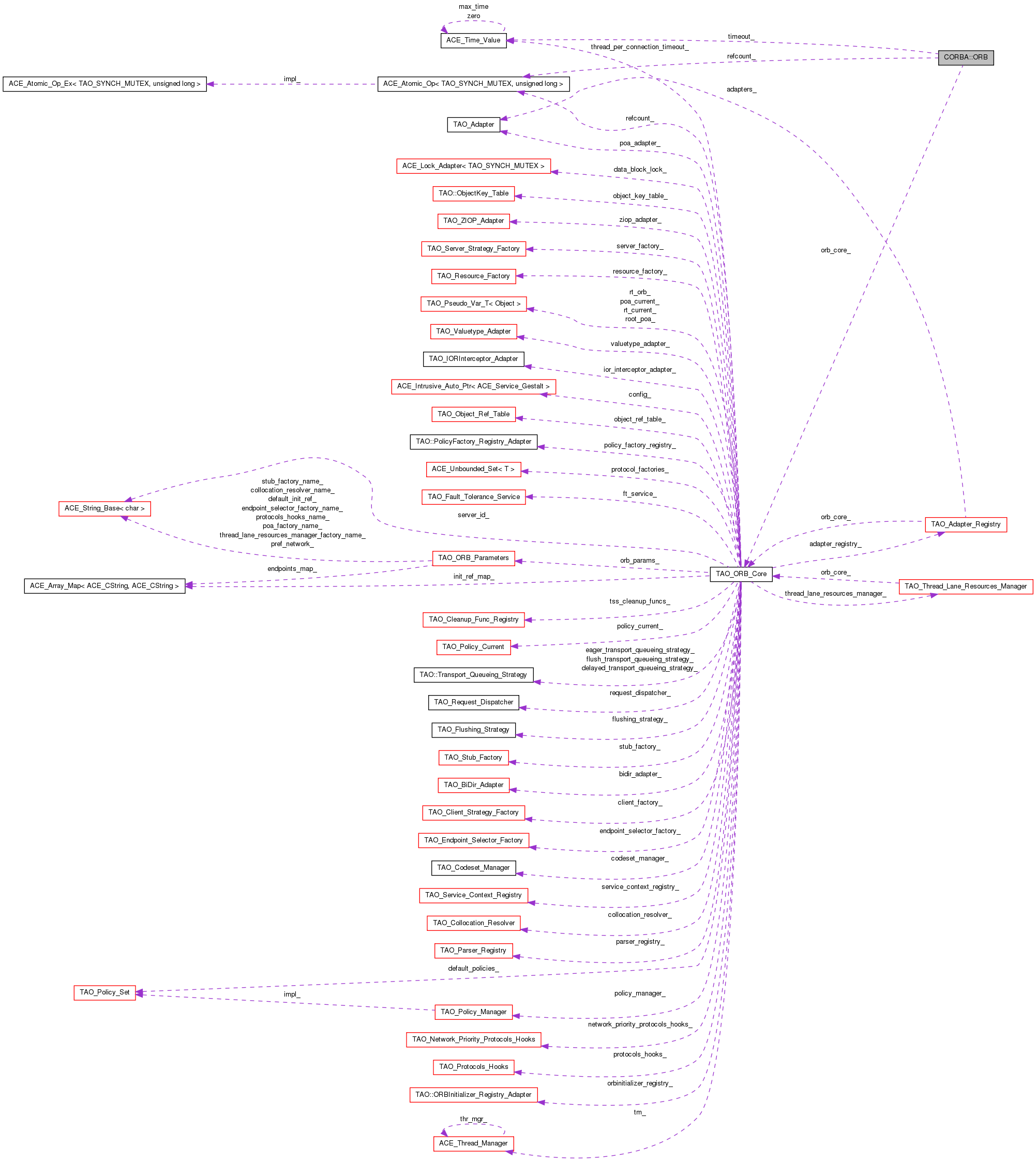

Collaboration diagram for CORBA::ORB:

Classes
class	InvalidName
Public Types
typedef char *	ObjectId
typedef CORBA::String_var	ObjectId_var
typedef CORBA::String_out	ObjectId_out
typedef CORBA::ORB_ObjectIdList	ObjectIdList
typedef CORBA::ORB_ObjectIdList_var	ObjectIdList_var
typedef CORBA::ORB_ObjectIdList_out	ObjectIdList_out
typedef CORBA::ORB_ObjectIdList *	ObjectIdList_ptr
typedef ORB_ptr	_ptr_type
typedef ORB_var	_var_type
typedef ORB_out	_out_type
Public Member Functions
char *	id (void)
	Return this ORB's ORBid.
CORBA::Object_ptr	string_to_object (const char *str)
char *	object_to_string (CORBA::Object_ptr obj)
CORBA::ValueFactory	register_value_factory (const char *repository_id, CORBA::ValueFactory factory)
void	unregister_value_factory (const char *repository_id)
CORBA::ValueFactory	lookup_value_factory (const char *repository_id)
void	create_list (CORBA::Long count, CORBA::NVList_ptr &new_list)
void	create_operation_list (CORBA::OperationDef_ptr opDef, CORBA::NVList_ptr &result)
void	create_named_value (CORBA::NamedValue_ptr &nmval)
void	create_exception_list (CORBA::ExceptionList_ptr &exclist)
void	create_environment (CORBA::Environment_ptr &new_env)
void	create_context_list (CORBA::ContextList_ptr &ctxtlist)
void	get_default_context (CORBA::Context_ptr &ctx)
CORBA::Boolean	get_service_information (CORBA::ServiceType service_type, CORBA::ServiceInformation_out service_information)
void	send_multiple_requests_oneway (const CORBA::RequestSeq &req)
void	send_multiple_requests_deferred (const CORBA::RequestSeq &req)
void	get_next_response (CORBA::Request_ptr &req)
CORBA::Boolean	poll_next_response (void)
CORBA::TypeCode_ptr	create_struct_tc (const char id, const char name, const CORBA::StructMemberSeq &members)
	The ORB TypeCode creation functions.
CORBA::TypeCode_ptr	create_union_tc (const char id, const char name, CORBA::TypeCode_ptr discriminator_type, const CORBA::UnionMemberSeq &members)
CORBA::TypeCode_ptr	create_enum_tc (const char id, const char name, const CORBA::EnumMemberSeq &members)
CORBA::TypeCode_ptr	create_alias_tc (const char id, const char name, CORBA::TypeCode_ptr original_type)
CORBA::TypeCode_ptr	create_exception_tc (const char id, const char name, const CORBA::StructMemberSeq &members)
CORBA::TypeCode_ptr	create_interface_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_string_tc (CORBA::ULong bound)
CORBA::TypeCode_ptr	create_wstring_tc (CORBA::ULong bound)
CORBA::TypeCode_ptr	create_fixed_tc (CORBA::UShort digits, CORBA::UShort scale)
CORBA::TypeCode_ptr	create_sequence_tc (CORBA::ULong bound, CORBA::TypeCode_ptr element_type)
CORBA::TypeCode_ptr	create_array_tc (CORBA::ULong length, CORBA::TypeCode_ptr element_type)
CORBA::TypeCode_ptr	create_value_tc (const char id, const char name, CORBA::ValueModifier type_modifier, CORBA::TypeCode_ptr concrete_base, const CORBA::ValueMemberSeq &members)
CORBA::TypeCode_ptr	create_value_box_tc (const char id, const char name, CORBA::TypeCode_ptr boxed_type)
CORBA::TypeCode_ptr	create_native_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_recursive_tc (const char *id)
CORBA::TypeCode_ptr	create_abstract_interface_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_local_interface_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_component_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_home_tc (const char id, const char name)
CORBA::TypeCode_ptr	create_event_tc (const char id, const char name, CORBA::ValueModifier type_modifier, CORBA::TypeCode_ptr concrete_base, const CORBA::ValueMemberSeq &members)
void	run (void)
void	run (ACE_Time_Value &tv)
void	run (ACE_Time_Value *tv)
CORBA::Boolean	work_pending (void)
CORBA::Boolean	work_pending (ACE_Time_Value &tv)
void	perform_work (void)
void	perform_work (ACE_Time_Value &tv)
void	perform_work (ACE_Time_Value *tv)
void	shutdown (CORBA::Boolean wait_for_completion=false)
void	destroy (void)
CORBA::Object_ptr	resolve_initial_references (const char name, ACE_Time_Value timeout=0)
void	register_initial_reference (const char *id, CORBA::Object_ptr obj)
	Register an object reference with the ORB.
CORBA::Object_ptr	unregister_initial_reference (const char *id)
	Unregister an object reference with the ORB.
CORBA::ORB::ObjectIdList_ptr	list_initial_services (void)
CORBA::Policy_ptr	create_policy (CORBA::PolicyType type, const CORBA::Any &val)
CORBA::Policy_ptr	_create_policy (CORBA::PolicyType type)
unsigned long	_incr_refcount (void)
	Reference counting...
unsigned long	_decr_refcount (void)
unsigned long	_refcount (void) const
void	_use_omg_ior_format (CORBA::Boolean ior)
	Set the IOR flag.
CORBA::Boolean	_use_omg_ior_format (void)
	Get the IOR flag.
TAO_ORB_Core *	orb_core (void) const
	Get the ORB core.
ACE_Time_Value *	get_timeout (void)
	Get the Timeout value.
Static Public Member Functions
static CORBA::ORB_ptr	_duplicate (CORBA::ORB_ptr orb)
	Return a duplicate of `orb`.
static CORBA::ORB_ptr	_nil (void)
static CORBA::ORB_ptr	_tao_make_ORB (TAO_ORB_Core *orb_core)
	Factory method that creates an ORB.
Static Public Attributes
static CORBA::TypeCode_ptr const	_tc_ObjectId
static CORBA::TypeCode_ptr const	_tc_ObjectIdList
Protected Member Functions
	ORB (TAO_ORB_Core *orb_core)
	~ORB (void)
	Destructor.
CORBA::Object_ptr	resolve_policy_manager (void)
	Resolve the Policy Manager for this ORB.
CORBA::Object_ptr	resolve_policy_current (void)
	Resolve the Policy Current for this thread.
Private Member Functions
void	resolve_service (TAO::MCAST_SERVICEID service_id)
	Resolve the given service based on the service ID.
CORBA::Object_ptr	ior_string_to_object (const char *ior)
	Convert an OMG IOR into an object reference.
CORBA::Object_ptr	url_ior_string_to_object (const char *ior)
	Convert an URL style IOR into an object reference.
void	check_shutdown (void)
void	set_timeout (ACE_Time_Value *timeout)
	Set the timeout value.
	ORB (const ORB &)
ORB &	operator= (const ORB &)
Private Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
TAO_ORB_Core *	orb_core_
	The ORB_Core that created us....
CORBA::Boolean	use_omg_ior_format_
	Decides whether to use the URL notation or to use IOR notation.
ACE_Time_Value *	timeout_
	Timeout value.

Detailed Description

ORB pseudo-object.

The "ORB" pseudo-object is used in bootstrapping, such as to create object references from strings. This class is intended to be inherited by others, which will provide some more of the CORBA support. Implementations of this "CORBA::ORB" class must know how to create stringify/destringify their objrefs, as well as how to marshal and unmarshal them.

Member Typedef Documentation

typedef ORB_out CORBA::ORB::_out_type

typedef ORB_ptr CORBA::ORB::_ptr_type

typedef ORB_var CORBA::ORB::_var_type

typedef char* CORBA::ORB::ObjectId

typedef CORBA::String_out CORBA::ORB::ObjectId_out

typedef CORBA::String_var CORBA::ORB::ObjectId_var

typedef CORBA::ORB_ObjectIdList CORBA::ORB::ObjectIdList

typedef CORBA::ORB_ObjectIdList_out CORBA::ORB::ObjectIdList_out

typedef CORBA::ORB_ObjectIdList* CORBA::ORB::ObjectIdList_ptr

typedef CORBA::ORB_ObjectIdList_var CORBA::ORB::ObjectIdList_var

Constructor & Destructor Documentation

CORBA::ORB::ORB ( TAO_ORB_Core * orb_core ) [protected]

CORBA::ORB::~ORB ( void ) [protected]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

CORBA::ORB::ORB ( const ORB & ) [private]

Member Function Documentation

CORBA::Policy_ptr CORBA::ORB::_create_policy ( CORBA::PolicyType type )

Create an empty policy, usually to be filled in later by demarshaling.

unsigned long CORBA::ORB::_decr_refcount ( void )

CORBA::ORB_ptr CORBA::ORB::_duplicate ( CORBA::ORB_ptr orb ) [static]

Return a duplicate of orb.

When work with this duplicate is complete, it should be freed up using CORBA::release().

unsigned long CORBA::ORB::_incr_refcount ( void )

Reference counting...

CORBA::ORB_ptr CORBA::ORB::_nil ( void ) [static]

Returns a pointer to a nil ORB, i.e., an non-existent ORB. This can be used for initialization or in comparisons.

unsigned long CORBA::ORB::_refcount ( void ) const

CORBA::ORB_ptr CORBA::ORB::_tao_make_ORB ( TAO_ORB_Core * orb_core ) [static]

Factory method that creates an ORB.

CORBA::Boolean CORBA::ORB::_use_omg_ior_format ( void )

Get the IOR flag.

void CORBA::ORB::_use_omg_ior_format ( CORBA::Boolean ior )

Set the IOR flag.

void CORBA::ORB::check_shutdown ( void ) [private]

Check if ORB has shutdown. If it has, throw the appropriate exception.

CORBA::TypeCode_ptr CORBA::ORB::create_abstract_interface_tc	(	const char *	id,
		const char *	name
	)

CORBA::TypeCode_ptr CORBA::ORB::create_alias_tc	(	const char *	id,
		const char *	name,
		CORBA::TypeCode_ptr	original_type
	)

CORBA::TypeCode_ptr CORBA::ORB::create_array_tc	(	CORBA::ULong	length,
		CORBA::TypeCode_ptr	element_type
	)

CORBA::TypeCode_ptr CORBA::ORB::create_component_tc	(	const char *	id,
		const char *	name
	)

void CORBA::ORB::create_context_list ( CORBA::ContextList_ptr & ctxtlist )

CORBA::TypeCode_ptr CORBA::ORB::create_enum_tc	(	const char *	id,
		const char *	name,
		const CORBA::EnumMemberSeq &	members
	)

void CORBA::ORB::create_environment ( CORBA::Environment_ptr & new_env )

CORBA::TypeCode_ptr CORBA::ORB::create_event_tc	(	const char *	id,
		const char *	name,
		CORBA::ValueModifier	type_modifier,
		CORBA::TypeCode_ptr	concrete_base,
		const CORBA::ValueMemberSeq &	members
	)

void CORBA::ORB::create_exception_list ( CORBA::ExceptionList_ptr & exclist )

CORBA::TypeCode_ptr CORBA::ORB::create_exception_tc	(	const char *	id,
		const char *	name,
		const CORBA::StructMemberSeq &	members
	)

CORBA::TypeCode_ptr CORBA::ORB::create_fixed_tc	(	CORBA::UShort	digits,
		CORBA::UShort	scale
	)

CORBA::TypeCode_ptr CORBA::ORB::create_home_tc	(	const char *	id,
		const char *	name
	)

CORBA::TypeCode_ptr CORBA::ORB::create_interface_tc	(	const char *	id,
		const char *	name
	)

void CORBA::ORB::create_list	(	CORBA::Long	count,
		CORBA::NVList_ptr &	new_list
	)

CORBA::TypeCode_ptr CORBA::ORB::create_local_interface_tc	(	const char *	id,
		const char *	name
	)

void CORBA::ORB::create_named_value ( CORBA::NamedValue_ptr & nmval )

CORBA::TypeCode_ptr CORBA::ORB::create_native_tc	(	const char *	id,
		const char *	name
	)

void CORBA::ORB::create_operation_list	(	CORBA::OperationDef_ptr	opDef,
		CORBA::NVList_ptr &	result
	)

CORBA::Policy_ptr CORBA::ORB::create_policy	(	CORBA::PolicyType	type,
		const CORBA::Any &	val
	)

CORBA::TypeCode_ptr CORBA::ORB::create_recursive_tc ( const char * id )

CORBA::TypeCode_ptr CORBA::ORB::create_sequence_tc	(	CORBA::ULong	bound,
		CORBA::TypeCode_ptr	element_type
	)

CORBA::TypeCode_ptr CORBA::ORB::create_string_tc ( CORBA::ULong bound )

CORBA::TypeCode_ptr CORBA::ORB::create_struct_tc	(	const char *	id,
		const char *	name,
		const CORBA::StructMemberSeq &	members
	)

The ORB TypeCode creation functions.

CORBA::TypeCode_ptr CORBA::ORB::create_union_tc	(	const char *	id,
		const char *	name,
		CORBA::TypeCode_ptr	discriminator_type,
		const CORBA::UnionMemberSeq &	members
	)

CORBA::TypeCode_ptr CORBA::ORB::create_value_box_tc	(	const char *	id,
		const char *	name,
		CORBA::TypeCode_ptr	boxed_type
	)

CORBA::TypeCode_ptr CORBA::ORB::create_value_tc	(	const char *	id,
		const char *	name,
		CORBA::ValueModifier	type_modifier,
		CORBA::TypeCode_ptr	concrete_base,
		const CORBA::ValueMemberSeq &	members
	)

CORBA::TypeCode_ptr CORBA::ORB::create_wstring_tc ( CORBA::ULong bound )

void CORBA::ORB::destroy ( void )

Explicitly destroy the ORB, releasing any resources. Note that TAO *cannot* implicitly release the resources even if you have destroyed all the references to a particular ORB since CORBA::ORB_init() is required to return the same pointer if called with the same ORBid, only after ORB::destroy() is called it may return a new one.

The results of multi-threaded applications, trying to destroy () the ORB in one thread and trying to service a request in another thread are not well defined. TAO does not support such cases.

void CORBA::ORB::get_default_context ( CORBA::Context_ptr & ctx )

void CORBA::ORB::get_next_response ( CORBA::Request_ptr & req )

CORBA::Boolean CORBA::ORB::get_service_information	(	CORBA::ServiceType	service_type,
		CORBA::ServiceInformation_out	service_information
	)

ACE_Time_Value * CORBA::ORB::get_timeout ( void )

Get the Timeout value.

char * CORBA::ORB::id ( void )

Return this ORB's ORBid.

CORBA::Object_ptr CORBA::ORB::ior_string_to_object ( const char * ior ) [private]

Convert an OMG IOR into an object reference.

CORBA::ORB::ObjectIdList_ptr CORBA::ORB::list_initial_services ( void )

Returns a sequence of ObjectIds that lists which objects have references available via the initial references mechanism.

CORBA::ValueFactory CORBA::ORB::lookup_value_factory ( const char * repository_id )

char * CORBA::ORB::object_to_string ( CORBA::Object_ptr obj )

Turn an object reference into a string. Each type of ORB, e.g. an IIOP ORB, must implement this. This can be used by servers to publish their whereabouts to clients. The output of this is typically eventually given to string_to_object() as an argument.

ORB& CORBA::ORB::operator= ( const ORB & ) [private]

TAO_ORB_Core * CORBA::ORB::orb_core ( void ) const

Get the ORB core.

void CORBA::ORB::perform_work ( ACE_Time_Value & tv )

void CORBA::ORB::perform_work ( void )

This operation performs an implementation-defined unit of work. Note that the default behavior is to block if the unit of work is not present; this behavior can be modified by passing an appropriate ACE_Time_Value as described in run().

void CORBA::ORB::perform_work ( ACE_Time_Value * tv )

CORBA::Boolean CORBA::ORB::poll_next_response ( void )

void CORBA::ORB::register_initial_reference	(	const char *	id,
		CORBA::Object_ptr	obj
	)

Register an object reference with the ORB.

CORBA::ValueFactory CORBA::ORB::register_value_factory	(	const char *	repository_id,
		CORBA::ValueFactory	factory
	)

CORBA::Object_ptr CORBA::ORB::resolve_initial_references	(	const char *	name,
		ACE_Time_Value *	timeout = `0`
	)

This method acts as a mini-bootstrapping Naming Service, which is provided by the ORB for certain well-known object references. TAO supports the "NameService", "TradingService", "RootPOA", "ImplRepo", and "POACurrent" via this method. The timeout value bounds the amount of time the ORB blocks waiting to resolve the service. This is most useful for bootstrapping remote services, such as the "NameService" or "TradingService", that are commonly resolved via multicast. By default, the value is 0, which means "use the @c TAO_DEFAULT_SERVICE_RESOLUTION_TIMEOUT timeout period".

Note:: By using a default value for the timeout parameter, TAO will remains compliant with the CORBA resolve_initial_references() specification.

CORBA::Object_ptr CORBA::ORB::resolve_policy_current ( void ) [protected]

Resolve the Policy Current for this thread.

CORBA::Object_ptr CORBA::ORB::resolve_policy_manager ( void ) [protected]

Resolve the Policy Manager for this ORB.

void CORBA::ORB::resolve_service ( TAO::MCAST_SERVICEID service_id ) [private]

Resolve the given service based on the service ID.

"@c resolve_service" is a legacy name. This method now simply sets up a default initial reference that will be subsequently used in resolve_initial_references().

void CORBA::ORB::run ( ACE_Time_Value * tv )

Instructs the ORB to initialize itself and run its event loop in the current thread, not returning until the ORB has shut down or the time value specified through tv has expired. If an error occurs during initialization or at runtime, a CORBA system exception will be thrown. tv is reduced by the amount of time spent in this call. If tv is 0, it means that the timeout is infinite. If tv is ACE_Time_Value::zero, it specifies to poll and does not block.

If this function is called with tv value, client threads making invocations will continue their operations. When the operation times out and returns, any invocations showing up on the server will be buffered by TCP.

void CORBA::ORB::run ( void )

Instructs the ORB to initialize itself and run its event loop in the current thread, not returning until the ORB has shut down. If an error occurs during initialization or at runtime, a CORBA system exception will be thrown.

void CORBA::ORB::run ( ACE_Time_Value & tv )

Instructs the ORB to initialize itself and run its event loop in the current thread, not returning until the ORB has shut down or the time value specified through tv has expired. If an error occurs during initialization or at runtime, a CORBA system exception will be thrown. tv is reduced by the amount of time spent in this call.

If this function is called with a @ tv value, client threads making invocations will continue their operations. When the operation timesout and returns, any invocations showing up on the server will be buffered by TCP.

void CORBA::ORB::send_multiple_requests_deferred ( const CORBA::RequestSeq & req )

void CORBA::ORB::send_multiple_requests_oneway ( const CORBA::RequestSeq & req )

void CORBA::ORB::set_timeout ( ACE_Time_Value * timeout ) [private]

Set the timeout value.

void CORBA::ORB::shutdown ( CORBA::Boolean wait_for_completion = false )

This operation instructs the ORB to shut down. Shutting down the ORB causes all Object Adapters to be shut down. If wait_for_completion parameter is TRUE, this operation blocks until all ORB processing (including request processing and object deactivation or other operations associated with object adapters) has completed.

CORBA::Object_ptr CORBA::ORB::string_to_object ( const char * str )

Turn a string-ified object reference back into an object pointer. Typically these strings are created using object_to_string(), but not necessarily locally.

CORBA::Object_ptr CORBA::ORB::unregister_initial_reference ( const char * id )

Unregister an object reference with the ORB.

void CORBA::ORB::unregister_value_factory ( const char * repository_id )
