TAO_CEC_ProxyPushSupplier Class Reference

ProxyPushSupplier. More...

#include <CEC_ProxyPushSupplier.h>

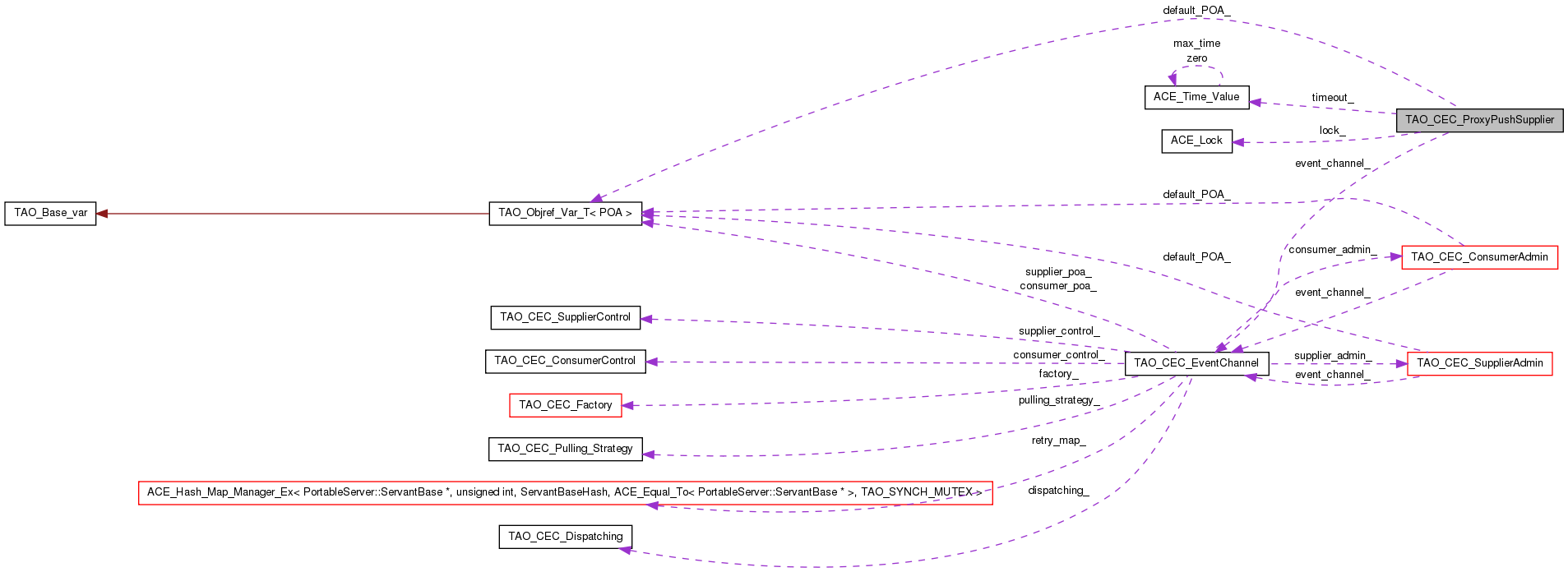

Collaboration diagram for TAO_CEC_ProxyPushSupplier:

List of all members.

Public Types
typedef CosEventChannelAdmin::ProxyPushSupplier_ptr	_ptr_type
typedef CosEventChannelAdmin::ProxyPushSupplier_var	_var_type
Public Member Functions
	TAO_CEC_ProxyPushSupplier (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
	constructor...
virtual	~TAO_CEC_ProxyPushSupplier (void)
	typed ec constructor
virtual void	activate (CosEventChannelAdmin::ProxyPushSupplier_ptr &)
	Activate in the POA.
virtual void	deactivate (void)
	Deactivate from the POA.
CORBA::Boolean	is_connected (void) const
	Return 0 if no consumer is connected...
CosEventComm::PushConsumer_ptr	consumer (void) const
virtual void	shutdown (void)
	The event channel is shutting down.
virtual void	push (const CORBA::Any &event)
	Internal methods to push an event to each consumer.
virtual void	push_nocopy (CORBA::Any &event)
void	push_to_consumer (const CORBA::Any &event)
	Internal methods to invoke a typed event to each consumer.
void	reactive_push_to_consumer (const CORBA::Any &event)
CORBA::Boolean	consumer_non_existent (CORBA::Boolean_out disconnected)
virtual void	connect_push_consumer (CosEventComm::PushConsumer_ptr push_consumer)
virtual void	disconnect_push_supplier (void)
CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count.
CORBA::ULong	_decr_refcnt (void)
virtual PortableServer::POA_ptr	_default_POA (void)
virtual void	_add_ref (void)
virtual void	_remove_ref (void)
Protected Member Functions
void	consumer (CosEventComm::PushConsumer_ptr consumer)
void	consumer_i (CosEventComm::PushConsumer_ptr consumer)
CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected().
void	cleanup_i (void)
	Release the child and the consumer.
CosEventComm::PushConsumer_ptr	apply_policy (CosEventComm::PushConsumer_ptr c)
CORBA::Object_ptr	apply_policy_obj (CORBA::Object_ptr c)
Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel that owns this object.
ACE_Time_Value	timeout_
ACE_Lock *	lock_
	The Typed Event Channel that owns this object.
CORBA::ULong	refcount_
	The reference count.
CosEventComm::PushConsumer_var	consumer_
CosEventComm::PushConsumer_var	nopolicy_consumer_
	The consumer without any policies applied.
PortableServer::POA_var	default_POA_
	Store the default POA.

---

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.

---

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ProxyPushSupplier::_ptr_type

typedef CosEventChannelAdmin::ProxyPushSupplier_var TAO_CEC_ProxyPushSupplier::_var_type

---

Constructor & Destructor Documentation

TAO_CEC_ProxyPushSupplier::TAO_CEC_ProxyPushSupplier	(	TAO_CEC_EventChannel *	event_channel,
		const ACE_Time_Value &	timeout
	)

constructor...

TAO_CEC_ProxyPushSupplier::~TAO_CEC_ProxyPushSupplier

(

void

)

[virtual]

typed ec constructor

destructor...

---

Member Function Documentation

void TAO_CEC_ProxyPushSupplier::_add_ref

(

void

)

[virtual]

CORBA::ULong TAO_CEC_ProxyPushSupplier::_decr_refcnt

(

void

)

PortableServer::POA_ptr TAO_CEC_ProxyPushSupplier::_default_POA

(

void

)

[virtual]

CORBA::ULong TAO_CEC_ProxyPushSupplier::_incr_refcnt

(

void

)

Increment and decrement the reference count.

void TAO_CEC_ProxyPushSupplier::_remove_ref

(

void

)

[virtual]

void TAO_CEC_ProxyPushSupplier::activate

(

CosEventChannelAdmin::ProxyPushSupplier_ptr &

activated_proxy

)

[virtual]

Activate in the POA.

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::apply_policy

(

CosEventComm::PushConsumer_ptr

c

)

[protected]

Assigns the parameter to both consumer_ and nopolicy_consumer_, and applies policies (when appropriate) to consumer_.

CORBA::Object_ptr TAO_CEC_ProxyPushSupplier::apply_policy_obj

(

CORBA::Object_ptr

c

)

[protected]

void TAO_CEC_ProxyPushSupplier::cleanup_i

(

void

)

[protected]

Release the child and the consumer.

void TAO_CEC_ProxyPushSupplier::connect_push_consumer

(

CosEventComm::PushConsumer_ptr

push_consumer

)

[virtual]

void TAO_CEC_ProxyPushSupplier::consumer

(

CosEventComm::PushConsumer_ptr

consumer

)

[protected]

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::consumer

(

void

)

const

Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

void TAO_CEC_ProxyPushSupplier::consumer_i

(

CosEventComm::PushConsumer_ptr

consumer

)

[protected]

CORBA::Boolean TAO_CEC_ProxyPushSupplier::consumer_non_existent

(

CORBA::Boolean_out

disconnected

)

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_CEC_ProxyPushSupplier::deactivate

(

void

)

[virtual]

Deactivate from the POA.

void TAO_CEC_ProxyPushSupplier::disconnect_push_supplier

(

void

)

[virtual]

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected

(

void

)

const

Return 0 if no consumer is connected...

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected_i

(

void

)

const [protected]

The private version (without locking) of is_connected().

void TAO_CEC_ProxyPushSupplier::push

(

const CORBA::Any &

event

)

[virtual]

Internal methods to push an event to each consumer.

void TAO_CEC_ProxyPushSupplier::push_nocopy

(

CORBA::Any &

event

)

[virtual]

void TAO_CEC_ProxyPushSupplier::push_to_consumer

(

const CORBA::Any &

event

)

Internal methods to invoke a typed event to each consumer.

Pushes to the consumer, verifies that it is connected.

void TAO_CEC_ProxyPushSupplier::reactive_push_to_consumer

(

const CORBA::Any &

event

)

void TAO_CEC_ProxyPushSupplier::shutdown

(

void

)

[virtual]

The event channel is shutting down.

---

Member Data Documentation

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::consumer_ [private]

The consumer -- use apply_policy() instead of assigning directly to consumer_. This will keep consumer_ and nopolicy_consumer_ in sync.

PortableServer::POA_var TAO_CEC_ProxyPushSupplier::default_POA_ [private]

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushSupplier::event_channel_ [private]

The Event Channel that owns this object.

ACE_Lock* TAO_CEC_ProxyPushSupplier::lock_ [private]

The Typed Event Channel that owns this object.

The locking strategy.

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::nopolicy_consumer_ [private]

The consumer without any policies applied.

CORBA::ULong TAO_CEC_ProxyPushSupplier::refcount_ [private]

The reference count.

ACE_Time_Value TAO_CEC_ProxyPushSupplier::timeout_ [private]

---

The documentation for this class was generated from the following files:

• CEC_ProxyPushSupplier.h
• CEC_ProxyPushSupplier.cpp
• CEC_ProxyPushSupplier.inl
