TAO_AV_Flow_Handler Class Reference

#include <Transport.h>

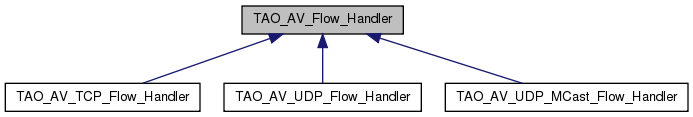

Inheritance diagram for TAO_AV_Flow_Handler:

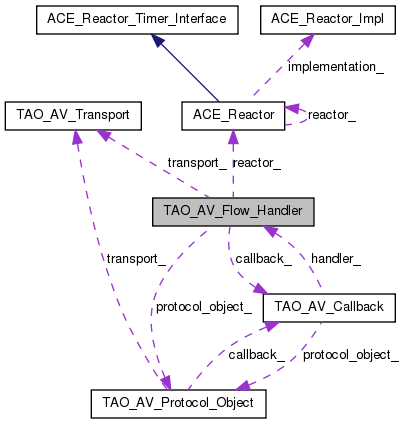

Collaboration diagram for TAO_AV_Flow_Handler:

List of all members.

Public Member Functions
	TAO_AV_Flow_Handler (void)
	Constructor.
virtual	~TAO_AV_Flow_Handler (void)
virtual int	start (TAO_FlowSpec_Entry::Role role)
	Start/stop the flow handler.
virtual int	stop (TAO_FlowSpec_Entry::Role role)
virtual int	schedule_timer (void)
	Schedule timer. Uses the get_timeout method on the callback.
virtual int	cancel_timer (void)
TAO_AV_Transport *	transport (void)
	get the transport.
TAO_AV_Protocol_Object *	protocol_object (void)
	set/get protocol_object.
void	protocol_object (TAO_AV_Protocol_Object *protocol_object)
void	callback (TAO_AV_Callback *callback)
	set the callback.
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg=0)
	Handle timeout. called from reactor.
virtual int	set_remote_address (ACE_Addr *address)
	set the remote address.
virtual ACE_Event_Handler *	event_handler (void)=0
	get the underlying event handler. To be overridden by the derived clases.
virtual int	change_qos (AVStreams::QoS)
Protected Attributes
TAO_AV_Transport *	transport_
TAO_AV_Callback *	callback_
TAO_AV_Protocol_Object *	protocol_object_
long	timer_id_
ACE_Reactor *	reactor_
void *	timeout_arg_

---

Constructor & Destructor Documentation

TAO_AV_Flow_Handler::TAO_AV_Flow_Handler

(

void

)

Constructor.

TAO_AV_Flow_Handler::~TAO_AV_Flow_Handler

(

void

)

[virtual]

---

Member Function Documentation

void TAO_AV_Flow_Handler::callback

(

TAO_AV_Callback *

callback

)

set the callback.

int TAO_AV_Flow_Handler::cancel_timer

(

void

)

[virtual]

int TAO_AV_Flow_Handler::change_qos

(

AVStreams::QoS

)

[virtual]

virtual ACE_Event_Handler* TAO_AV_Flow_Handler::event_handler

(

void

)

[pure virtual]

get the underlying event handler. To be overridden by the derived clases.

int TAO_AV_Flow_Handler::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg = 0
	)			[virtual]

Handle timeout. called from reactor.

TAO_AV_Protocol_Object * TAO_AV_Flow_Handler::protocol_object

(

void

)

set/get protocol_object.

void TAO_AV_Flow_Handler::protocol_object

(

TAO_AV_Protocol_Object *

protocol_object

)

int TAO_AV_Flow_Handler::schedule_timer

(

void

)

[virtual]

Schedule timer. Uses the get_timeout method on the callback.

int TAO_AV_Flow_Handler::set_remote_address

(

ACE_Addr *

address

)

[virtual]

set the remote address.

int TAO_AV_Flow_Handler::start

(

TAO_FlowSpec_Entry::Role

role

)

[virtual]

Start/stop the flow handler.

int TAO_AV_Flow_Handler::stop

(

TAO_FlowSpec_Entry::Role

role

)

[virtual]

TAO_AV_Transport * TAO_AV_Flow_Handler::transport

(

void

)

get the transport.

---

Member Data Documentation

TAO_AV_Callback* TAO_AV_Flow_Handler::callback_ [protected]

TAO_AV_Protocol_Object* TAO_AV_Flow_Handler::protocol_object_ [protected]

ACE_Reactor* TAO_AV_Flow_Handler::reactor_ [protected]

void* TAO_AV_Flow_Handler::timeout_arg_ [protected]

long TAO_AV_Flow_Handler::timer_id_ [protected]

TAO_AV_Transport* TAO_AV_Flow_Handler::transport_ [protected]

---

The documentation for this class was generated from the following files:

• Transport.h
• Transport.cpp
