RTCP_SR_Packet Class Reference

The Sender Report packet is sent by all members of a session that are sending data. It contains statistics on the data being sent out. It also contains a list of RR_Block to represent each source this party is receiving data from. More...

#include <RTCP_Packet.h>

Inheritance diagram for RTCP_SR_Packet:

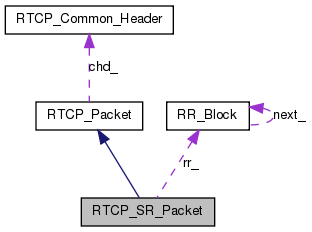

Collaboration diagram for RTCP_SR_Packet:

List of all members.

Public Member Functions
	RTCP_SR_Packet (char *buffer, int *len)
	Constructor for incoming SR packets.
	RTCP_SR_Packet (ACE_UINT32 ssrcVal, ACE_UINT32 ntpMSByte, ACE_UINT32 ntpLSByte, ACE_UINT32 timestamp, ACE_UINT32 pktsSent, ACE_UINT32 octetsSent, RR_Block *rrBlocks)
	Constructor for outgoing SR packets.
virtual	~RTCP_SR_Packet (void)
	Destructor.
unsigned int	packet_size (void)
	Returns the size of the packet in bytes.
ACE_UINT32	ssrc (void)
	Returns the synchronization source id for the sender of this packet.
ACE_UINT32	ntp_ts_msw (void)
	Returns the most significant word of the NTP timestamp.
ACE_UINT32	ntp_ts_lsw (void)
	Returns the least significant word of the NTP timestamp.
void	dump (void)
	Prints the contents of the packet.
Private Member Functions
void	build_packet (void)
	Used to create the byte representation of the RTCP packet.
Private Attributes
ACE_UINT32	ssrc_
	The synchronization source id of the sender generating this report.
ACE_UINT32	ntp_ts_msw_
	The most significant word of the NTP timestamp.
ACE_UINT32	ntp_ts_lsw_
	The least significant word of the NTP timestamp.
ACE_UINT32	rtp_ts_
	The RTP timestamp.
ACE_UINT32	psent_
	The total number of packets sent.
ACE_UINT32	osent_
	The total number of octets sent.
RR_Block *	rr_
	A linked list of receiver report blocks.

---

Detailed Description

The Sender Report packet is sent by all members of a session that are sending data. It contains statistics on the data being sent out. It also contains a list of RR_Block to represent each source this party is receiving data from.

---

Constructor & Destructor Documentation

RTCP_SR_Packet::RTCP_SR_Packet	(	char *	buffer,
		int *	len
	)

Constructor for incoming SR packets.

RTCP_SR_Packet::RTCP_SR_Packet	(	ACE_UINT32	ssrcVal,
		ACE_UINT32	ntpMSByte,
		ACE_UINT32	ntpLSByte,
		ACE_UINT32	timestamp,
		ACE_UINT32	pktsSent,
		ACE_UINT32	octetsSent,
		RR_Block *	rrBlocks
	)

Constructor for outgoing SR packets.

RTCP_SR_Packet::~RTCP_SR_Packet

(

void

)

[virtual]

Destructor.

---

Member Function Documentation

void RTCP_SR_Packet::build_packet

(

void

)

[private, virtual]

Used to create the byte representation of the RTCP packet.

Implements RTCP_Packet.

void RTCP_SR_Packet::dump

(

void

)

Prints the contents of the packet.

ACE_UINT32 RTCP_SR_Packet::ntp_ts_lsw

(

void

)

[inline]

Returns the least significant word of the NTP timestamp.

ACE_UINT32 RTCP_SR_Packet::ntp_ts_msw

(

void

)

[inline]

Returns the most significant word of the NTP timestamp.

unsigned int RTCP_SR_Packet::packet_size

(

void

)

[virtual]

Returns the size of the packet in bytes.

Implements RTCP_Packet.

ACE_UINT32 RTCP_SR_Packet::ssrc

(

void

)

[inline]

Returns the synchronization source id for the sender of this packet.

---

Member Data Documentation

ACE_UINT32 RTCP_SR_Packet::ntp_ts_lsw_ [private]

The least significant word of the NTP timestamp.

ACE_UINT32 RTCP_SR_Packet::ntp_ts_msw_ [private]

The most significant word of the NTP timestamp.

ACE_UINT32 RTCP_SR_Packet::osent_ [private]

The total number of octets sent.

ACE_UINT32 RTCP_SR_Packet::psent_ [private]

The total number of packets sent.

RR_Block* RTCP_SR_Packet::rr_ [private]

A linked list of receiver report blocks.

ACE_UINT32 RTCP_SR_Packet::rtp_ts_ [private]

The RTP timestamp.

ACE_UINT32 RTCP_SR_Packet::ssrc_ [private]

The synchronization source id of the sender generating this report.

---

The documentation for this class was generated from the following files:

• RTCP_Packet.h
• RTCP_Packet.cpp
