Common container interface definition. More...

#include <Container_Base.h>

Inheritance diagram for CIAO::Container_i:

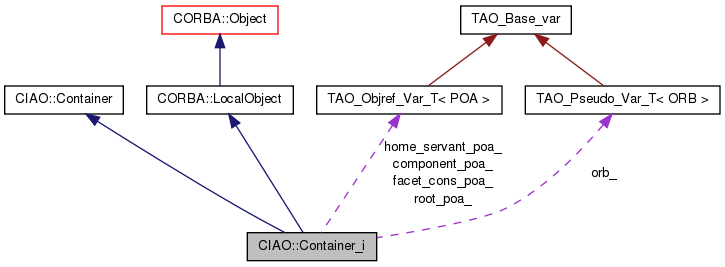

Collaboration diagram for CIAO::Container_i:

Public Member Functions
	Container_i (CORBA::ORB_ptr o, PortableServer::POA_ptr root_poa)
	Container_i (CORBA::ORB_ptr o, PortableServer::POA_ptr root_poa, Deployment::CIAO_Container_i *container_impl)
virtual	~Container_i (void)
virtual void	init (const char name=0, const CORBA::PolicyList more_policies=0)=0
	Initialize the container with a name.
virtual PortableServer::POA_ptr	the_POA (void)
	Get component's POA.
virtual PortableServer::POA_ptr	the_port_POA (void)
virtual Components::CCMHome_ptr	install_home (const char primary_artifact, const char entry_point, const char servant_artifact, const char servant_entrypoint, const char *name)=0
	Install a new home.
virtual void	uninstall_home (Components::CCMHome_ptr homeref)=0
	Uninstall a servant for component or home.
virtual Components::CCMObject_ptr	install_component (const char primary_artifact, const char entry_point, const char servant_artifact, const char servant_entrypoint, const char *name)=0
virtual void	uninstall_component (Components::CCMObject_ptr compref)=0
virtual CORBA::Object_ptr	get_objref (PortableServer::Servant p)=0
virtual CORBA::Object_ptr	install_servant (PortableServer::Servant objref, Container_Types::OA_Type type, PortableServer::ObjectId_out oid)=0
virtual void	uninstall_servant (PortableServer::Servant objref, Container_Types::OA_Type type, PortableServer::ObjectId_out oid)=0
	Uninstall a servant for component.
CORBA::ORB_ptr	the_ORB (void) const
	Get a reference to the underlying ORB.
Protected Attributes
CORBA::ORB_var	orb_
	Reference to the ORB.
PortableServer::POA_var	root_poa_
	POA used as root.
PortableServer::POA_var	component_poa_
PortableServer::POA_var	facet_cons_poa_
PortableServer::POA_var	home_servant_poa_
Deployment::CIAO_Container_i *	container_impl_
Private Member Functions
	Container_i (void)
	Not allowed to be used.

Detailed Description

Common container interface definition.

Perhaps we can use local interface to define these interfaces as we will also get reference counting automatically.

Constructor & Destructor Documentation

CIAO::Container_i::Container_i	(	CORBA::ORB_ptr	o,
		PortableServer::POA_ptr	root_poa
	)

CIAO::Container_i::Container_i	(	CORBA::ORB_ptr	o,
		PortableServer::POA_ptr	root_poa,
		Deployment::CIAO_Container_i *	container_impl
	)

CIAO::Container_i::~Container_i ( void ) [virtual]

CIAO::Container_i::Container_i ( void ) [private]

Not allowed to be used.

Member Function Documentation

virtual CORBA::Object_ptr CIAO::Container_i::get_objref ( PortableServer::Servant p ) [pure virtual]

Implemented in CIAO::Session_Container.

virtual void CIAO::Container_i::init	(	const char *	name = `0`,
		const CORBA::PolicyList *	more_policies = `0`
	)			`[pure virtual]`

Initialize the container with a name.

Implemented in CIAO::Session_Container.

virtual Components::CCMObject_ptr CIAO::Container_i::install_component	(	const char *	primary_artifact,
		const char *	entry_point,
		const char *	servant_artifact,
		const char *	servant_entrypoint,
		const char *	name
	)			`[pure virtual]`

Implemented in CIAO::Session_Container.

virtual Components::CCMHome_ptr CIAO::Container_i::install_home	(	const char *	primary_artifact,
		const char *	entry_point,
		const char *	servant_artifact,
		const char *	servant_entrypoint,
		const char *	name
	)			`[pure virtual]`

Install a new home.

Implemented in CIAO::Session_Container.

virtual CORBA::Object_ptr CIAO::Container_i::install_servant	(	PortableServer::Servant	objref,
		Container_Types::OA_Type	type,
		PortableServer::ObjectId_out	oid
	)			`[pure virtual]`

Implemented in CIAO::Session_Container.

CORBA::ORB_ptr CIAO::Container_i::the_ORB ( void ) const

Get a reference to the underlying ORB.

PortableServer::POA_ptr CIAO::Container_i::the_POA ( void ) [virtual]

Get component's POA.

This operation does *NOT* increase the reference count of the POA. Look at the const qualifier in the method.

PortableServer::POA_ptr CIAO::Container_i::the_port_POA ( void ) [virtual]

virtual void CIAO::Container_i::uninstall_component ( Components::CCMObject_ptr compref ) [pure virtual]

Implemented in CIAO::Session_Container.

virtual void CIAO::Container_i::uninstall_home ( Components::CCMHome_ptr homeref ) [pure virtual]

Uninstall a servant for component or home.

Implemented in CIAO::Session_Container.

virtual void CIAO::Container_i::uninstall_servant	(	PortableServer::Servant	objref,
		Container_Types::OA_Type	type,
		PortableServer::ObjectId_out	oid
	)			`[pure virtual]`

Uninstall a servant for component.

Implemented in CIAO::Session_Container.

Member Data Documentation

PortableServer::POA_var CIAO::Container_i::component_poa_ [protected]

POA within which all the components in this container will be activated.

Deployment::CIAO_Container_i* CIAO::Container_i::container_impl_ [protected]

PortableServer::POA_var CIAO::Container_i::facet_cons_poa_ [protected]

POA within which all the facets and receptacles will be activated. Having two POA's allows us to associate different policies that are distinct from the component.

PortableServer::POA_var CIAO::Container_i::home_servant_poa_ [protected]

CORBA::ORB_var CIAO::Container_i::orb_ [protected]

Reference to the ORB.

PortableServer::POA_var CIAO::Container_i::root_poa_ [protected]

POA used as root.

The documentation for this class was generated from the following files:
