TAO_LF_Multi_Event Class Reference

Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_Multi_Event.h>

Inheritance diagram for TAO_LF_Multi_Event:

[legend]

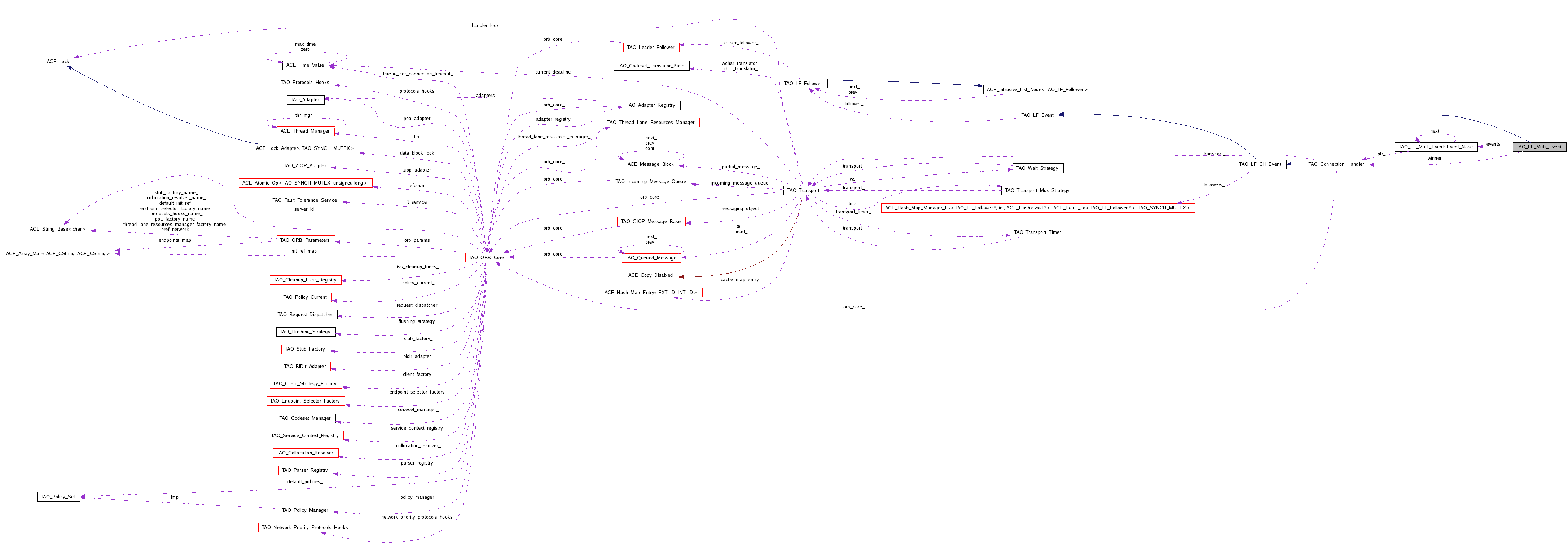

Collaboration diagram for TAO_LF_Multi_Event:

[legend]

List of all members.

Classes
struct	Event_Node
Public Member Functions
	TAO_LF_Multi_Event (void)
	Constructor.
virtual	~TAO_LF_Multi_Event (void)
	Destructor.
virtual int	bind (TAO_LF_Follower *follower)
	propogate the follower to all the events in the collection.
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower from all the collected events.
void	add_event (TAO_Connection_Handler *ch)
	Adds a handler to the collection.
TAO_Connection_Handler *	winner (void)
TAO_Transport *	base_transport (void)
	Returns the transport associated with the first entry in the collection.


int	successful (void) const
int	error_detected (void) const
Protected Member Functions
virtual void	state_changed_i (int new_state)
	Validate the state change.
virtual int	is_state_final (void)
	Check whether we have reached the final state..
Private Member Functions
void	operator= (const TAO_LF_Multi_Event &)
	TAO_LF_Multi_Event (const TAO_LF_Multi_Event &)
Private Attributes
struct Event_Node *	events_
TAO_Connection_Handler *	winner_

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Used by the parallel connection strategy for waiting on one of many connections.

Constructor & Destructor Documentation

TAO_LF_Multi_Event::TAO_LF_Multi_Event ( void )

Constructor.

TAO_LF_Multi_Event::~TAO_LF_Multi_Event ( void ) [virtual]

Destructor.

TAO_LF_Multi_Event::TAO_LF_Multi_Event ( const TAO_LF_Multi_Event & ) [private]

Member Function Documentation

void TAO_LF_Multi_Event::add_event ( TAO_Connection_Handler * ch )

Adds a handler to the collection.

TAO_Transport * TAO_LF_Multi_Event::base_transport ( void )

Returns the transport associated with the first entry in the collection.

int TAO_LF_Multi_Event::bind ( TAO_LF_Follower * follower ) [virtual]

propogate the follower to all the events in the collection.

Reimplemented from TAO_LF_Event.

int TAO_LF_Multi_Event::error_detected ( void ) const [virtual]

Return 1 if an error was detected while waiting for the event - This iterates over the list of events and returns 1 only if all of them return 1 from error_detected.

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::is_state_final ( void ) [protected, virtual]

Check whether we have reached the final state..

Implements TAO_LF_Event.

void TAO_LF_Multi_Event::operator= ( const TAO_LF_Multi_Event & ) [private]

void TAO_LF_Multi_Event::state_changed_i ( int new_state ) [protected, virtual]

Validate the state change.

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::successful ( void ) const [virtual]

Return 1 if the condition was satisfied successfully, 0 if it has not - This iterates over the list of attached events and returns 1 if any of them return 1 from successful.

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::unbind ( TAO_LF_Follower * follower ) [virtual]

Unbind the follower from all the collected events.

Reimplemented from TAO_LF_Event.

TAO_Connection_Handler * TAO_LF_Multi_Event::winner ( void )

Returns the connection handler that caused the successful status to be returned.
