ACE::Monitor_Control::Monitor_Admin Class Reference

#include <Monitor_Admin.h>

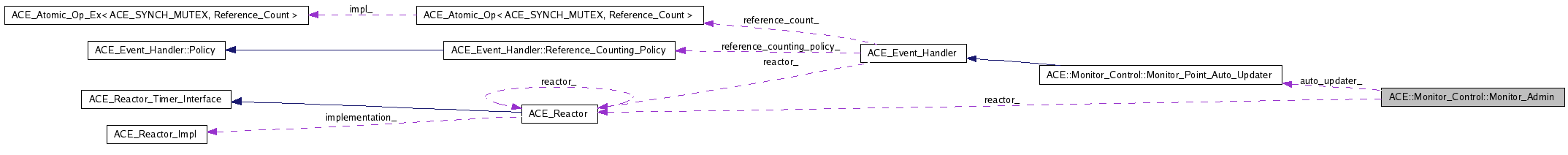

Collaboration diagram for ACE::Monitor_Control::Monitor_Admin:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Monitor_Admin (void)
 ~Monitor_Admin (void)
bool monitor_point (Monitor_Base *monitor_point, const ACE_Time_Value &time)
Monitor_Basemonitor_point (const char *name)
void auto_query (ACE_Event_Handler *handler, Monitor_Query *query, const ACE_Time_Value &time)
void reactor (ACE_Reactor *new_reactor)
ACE_Reactorreactor (void) const

Private Attributes

Monitor_Point_Auto_Updater auto_updater_
ACE_Reactorreactor_
bool default_reactor_

Constructor & Destructor Documentation

ACE::Monitor_Control::Monitor_Admin::Monitor_Admin ( void   )
ACE::Monitor_Control::Monitor_Admin::~Monitor_Admin ( void   )

Destroys the timers associated with our event handler before its destructor is called.

We access the registry through ACE_Singleton, which doesn't call the destructor, so we call this method to do a remove_ref() on all monitor points left in the registry. which needs to be done before the registry goes away.


Member Function Documentation

void ACE::Monitor_Control::Monitor_Admin::auto_query ( ACE_Event_Handler handler,
Monitor_Query *  query,
const ACE_Time_Value time
)

Works similarly to monitor_point() above, but registers the handler arg's handle_timeout() method with the reactor, instead of our auto_updater_'s handle_timeout().

Monitor_Base * ACE::Monitor_Control::Monitor_Admin::monitor_point ( const char *  name  )
bool ACE::Monitor_Control::Monitor_Admin::monitor_point ( Monitor_Base monitor_point,
const ACE_Time_Value time
)

Add or access monitor points in a global registry If the ACE_Time_Value arg is non-zero, the monitor point, the auto updater member, and the given time interval are passed to our reactor's register_timeout() method.

This call checks for a null monitor_point.

ACE_Reactor * ACE::Monitor_Control::Monitor_Admin::reactor ( void   )  const
void ACE::Monitor_Control::Monitor_Admin::reactor ( ACE_Reactor new_reactor  )

This mutator allows the application to create its own reactor and substitute it for the default reactor.


Member Data Documentation


The documentation for this class was generated from the following files:
