ACE_Message_Queue_Base Class Reference

Base class for ACE_Message_Queue, which is the central queueing facility for messages in the ACE framework. More...

#include <Message_Queue.h>

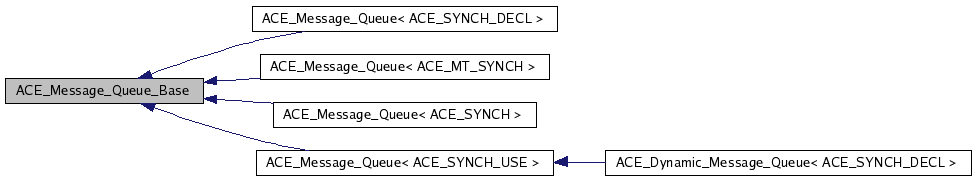

Inheritance diagram for ACE_Message_Queue_Base:
Inheritance graph
[legend]

List of all members.

Public Types

enum  {
  DEFAULT_HWM = 16 * 1024, DEFAULT_LWM = 16 * 1024, WAS_ACTIVE = 1, ACTIVATED = 1,
  WAS_INACTIVE = 2, DEACTIVATED = 2, PULSED = 3
}

Public Member Functions

 ACE_Message_Queue_Base (void)
virtual int close (void)=0
 Close down the message queue and release all resources.
virtual ~ACE_Message_Queue_Base (void)
 Close down the message queue and release all resources.
virtual int peek_dequeue_head (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)=0
virtual int enqueue_tail (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)=0
virtual int enqueue (ACE_Message_Block *new_item, ACE_Time_Value *timeout=0)=0
virtual int dequeue_head (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)=0
virtual int dequeue (ACE_Message_Block *&first_item, ACE_Time_Value *timeout=0)=0
virtual bool is_full (void)=0
 True if queue is full, else false.
virtual bool is_empty (void)=0
 True if queue is empty, else false.
virtual size_t message_bytes (void)=0
virtual size_t message_length (void)=0
virtual size_t message_count (void)=0
 Number of total messages on the queue.
virtual void message_bytes (size_t new_size)=0
virtual void message_length (size_t new_length)=0
virtual int deactivate (void)=0
virtual int activate (void)=0
virtual int pulse (void)=0
virtual int state (void)
 Returns the current state of the queue.
virtual int deactivated (void)=0
virtual ACE_Notification_Strategynotification_strategy (void)=0
 Get the notification strategy for the <Message_Queue>.
virtual void notification_strategy (ACE_Notification_Strategy *s)=0
 Set the notification strategy for the <Message_Queue>.
virtual void dump (void) const =0
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Attributes

int state_

Private Member Functions

 ACE_Message_Queue_Base (const ACE_Message_Queue_Base &)
void operator= (const ACE_Message_Queue_Base &)

Detailed Description

Base class for ACE_Message_Queue, which is the central queueing facility for messages in the ACE framework.

For all the ACE_Time_Value pointer parameters the caller will block until action is possible if timeout == 0. Otherwise, it will wait until the absolute time specified in *timeout elapses.

A queue is always in one of three states: . ACTIVATED . DEACTIVATED . PULSED


Member Enumeration Documentation

anonymous enum
Enumerator:
DEFAULT_HWM

Default high watermark (16 K).

DEFAULT_LWM

Default low watermark (same as high water mark).

WAS_ACTIVE
Deprecated:
Use ACTIVATED instead.
ACTIVATED

Message queue is active and processing normally.

WAS_INACTIVE
Deprecated:
Use DEACTIVATED instead.
DEACTIVATED

Queue is deactivated; no enqueue or dequeue operations allowed.

PULSED

Message queue was pulsed; enqueue and dequeue may proceed normally.


Constructor & Destructor Documentation

ACE_Message_Queue_Base::ACE_Message_Queue_Base ( void   )  [inline]
ACE_Message_Queue_Base::~ACE_Message_Queue_Base ( void   )  [virtual]

Close down the message queue and release all resources.

ACE_Message_Queue_Base::ACE_Message_Queue_Base ( const ACE_Message_Queue_Base  )  [private]

Member Function Documentation

virtual int ACE_Message_Queue_Base::activate ( void   )  [pure virtual]

Reactivate the queue so that threads can enqueue and dequeue messages again.

Return values:
The queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::close ( void   )  [pure virtual]
virtual int ACE_Message_Queue_Base::deactivate ( void   )  [pure virtual]

Deactivate the queue and wake up all threads waiting on the queue so they can continue. No messages are removed from the queue, however. Any other operations called until the queue is activated again will immediately return -1 with errno ESHUTDOWN.

Return values:
The queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::deactivated ( void   )  [pure virtual]

Returns 1 if the state of the queue is DEACTIVATED, and 0 if the queue's state is ACTIVATED or PULSED.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::dequeue ( ACE_Message_Block *&  first_item,
ACE_Time_Value timeout = 0
) [pure virtual]
virtual int ACE_Message_Queue_Base::dequeue_head ( ACE_Message_Block *&  first_item,
ACE_Time_Value timeout = 0
) [pure virtual]

Dequeue and return the <ACE_Message_Block *> at the head of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case errno == <ESHUTDOWN>), when a signal occurs (in which case errno == <EINTR>, or if the time specified in timeout elapses (in which case errno == EWOULDBLOCK).

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::dump ( void   )  const [pure virtual]
virtual int ACE_Message_Queue_Base::enqueue ( ACE_Message_Block new_item,
ACE_Time_Value timeout = 0
) [pure virtual]
virtual int ACE_Message_Queue_Base::enqueue_tail ( ACE_Message_Block new_item,
ACE_Time_Value timeout = 0
) [pure virtual]

Enqueue a <ACE_Message_Block *> into the tail of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case errno == <ESHUTDOWN>), when a signal occurs (in which case errno == <EINTR>, or if the time specified in timeout elapses (in which case errno == EWOULDBLOCK).

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual bool ACE_Message_Queue_Base::is_empty ( void   )  [pure virtual]
virtual bool ACE_Message_Queue_Base::is_full ( void   )  [pure virtual]
virtual void ACE_Message_Queue_Base::message_bytes ( size_t  new_size  )  [pure virtual]

New value of the number of total bytes on the queue, i.e., sum of the message block sizes.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual size_t ACE_Message_Queue_Base::message_bytes ( void   )  [pure virtual]

Number of total bytes on the queue, i.e., sum of the message block sizes.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual size_t ACE_Message_Queue_Base::message_count ( void   )  [pure virtual]
virtual void ACE_Message_Queue_Base::message_length ( size_t  new_length  )  [pure virtual]

New value of the number of total length on the queue, i.e., sum of the message block lengths.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual size_t ACE_Message_Queue_Base::message_length ( void   )  [pure virtual]

Number of total length on the queue, i.e., sum of the message block lengths.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::notification_strategy ( ACE_Notification_Strategy s  )  [pure virtual]
virtual ACE_Notification_Strategy* ACE_Message_Queue_Base::notification_strategy ( void   )  [pure virtual]
void ACE_Message_Queue_Base::operator= ( const ACE_Message_Queue_Base  )  [private]
virtual int ACE_Message_Queue_Base::peek_dequeue_head ( ACE_Message_Block *&  first_item,
ACE_Time_Value timeout = 0
) [pure virtual]

Retrieve the first ACE_Message_Block without removing it. Note that timeout uses <{absolute}> time rather than <{relative}> time. If the timeout elapses without receiving a message -1 is returned and errno is set to EWOULDBLOCK. If the queue is deactivated -1 is returned and errno is set to <ESHUTDOWN>. Otherwise, returns -1 on failure, else the number of items still on the queue.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::pulse ( void   )  [pure virtual]

Pulse the queue to wake up any waiting threads. Changes the queue state to PULSED; future enqueue/dequeue operations proceed as in ACTIVATED state.

Return values:
The queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

int ACE_Message_Queue_Base::state ( void   )  [virtual]

Member Data Documentation

Indicates the state of the queue, which can be <ACTIVATED>, <DEACTIVATED>, or <PULSED>.


The documentation for this class was generated from the following files:
