Plan_Launcher_Base_Impl Class Reference

#include <Plan_Launcher_Base_Impl.h>

Inheritance diagram for Plan_Launcher_Base_Impl:

[legend]

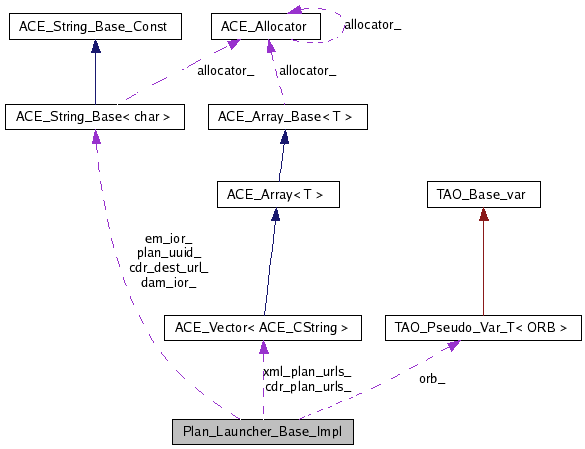

Collaboration diagram for Plan_Launcher_Base_Impl:

[legend]

List of all members.

Classes
struct	Deployment_Failure
struct	Help_Issued
Public Member Functions
	Plan_Launcher_Base_Impl (CORBA::ORB_ptr orb, int argc, ACE_TCHAR *argv[])
virtual	~Plan_Launcher_Base_Impl ()
void	execute ()
Static Public Member Functions
static Deployment::DeploymentPlan *	read_cdr_plan_file (const char *deployment_plan_uri)
static void	write_cdr_plan_file (const char *filename, const Deployment::DeploymentPlan &plan)
Protected Member Functions
virtual const char *	launch_plan (const ::Deployment::DeploymentPlan &plan)
	Launch a plan, given an IDL deployment plan.
::Deployment::DomainApplicationManager_ptr	get_dam (const char *uuid)
	Returns the DAM associated with a given plan URI.
bool	teardown_plan (const char *uuid)
	Tears down a plan given the UUID.
void	teardown_plan (::Deployment::DomainApplicationManager_ptr dam)
void	destroy_dam (::Deployment::DomainApplicationManager_ptr dam)
virtual void	stop_plan ()
void	usage (const ACE_TCHAR *program=0)
void	parse_args (int argc, ACE_TCHAR *argv[])
void	write_dam_ior (::Deployment::DomainApplicationManager_ptr dam)
void	create_external_connections (const ::Deployment::DeploymentPlan &plan, Deployment::Connections &conn)
virtual void	check_mode_consistentness ()
Static Protected Member Functions
static bool	is_empty (const ACE_CString &s)
static ACE_CString	expand_env_vars (const ACE_TCHAR *src)
Protected Attributes
CORBA::ORB_var	orb_
	Cached ORB pointer.
::Deployment::ExecutionManager_var	em_
	Object reference of the ExecutionManager.
ACE_Vector< ACE_CString >	cdr_plan_urls_
ACE_CString	plan_uuid_
ACE_CString	em_ior_
ACE_CString	dam_ior_
ACE_Vector< ACE_CString >	xml_plan_urls_
ACE_CString	cdr_dest_url_
unsigned long	mode_
Static Protected Attributes
static const unsigned long	MODE_START_PLAN = 0x0001
static const unsigned long	MODE_STOP_PLAN = 0x0002
static const unsigned long	MODE_USE_NAMING = 0x0004
static const unsigned long	MODE_WRITE_CDR = 0x0008

---

Constructor & Destructor Documentation

Plan_Launcher_Base_Impl::Plan_Launcher_Base_Impl	(	CORBA::ORB_ptr	orb,
		int	argc,
		ACE_TCHAR *	argv[]
	)

Plan_Launcher_Base_Impl::~Plan_Launcher_Base_Impl

(

)

[virtual]

---

Member Function Documentation

void Plan_Launcher_Base_Impl::check_mode_consistentness

(

)

[protected, virtual]

void Plan_Launcher_Base_Impl::create_external_connections	(	const ::Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	conn
	)			[protected]

void Plan_Launcher_Base_Impl::destroy_dam

(

::Deployment::DomainApplicationManager_ptr

dam

)

[protected]

void Plan_Launcher_Base_Impl::execute

(

void

)

Reimplemented in Plan_Launcher_Impl.

ACE_CString Plan_Launcher_Base_Impl::expand_env_vars

(

const ACE_TCHAR *

src

)

[static, protected]

::Deployment::DomainApplicationManager_ptr Plan_Launcher_Base_Impl::get_dam

(

const char *

uuid

)

[protected]

Returns the DAM associated with a given plan URI.

static bool Plan_Launcher_Base_Impl::is_empty

(

const ACE_CString &

s

)

[inline, static, protected]

const char * Plan_Launcher_Base_Impl::launch_plan

(

const ::Deployment::DeploymentPlan &

plan

)

[protected, virtual]

Launch a plan, given an IDL deployment plan.

Parameters:

plan

A valid IDL deployment plan

Returns:

a string containing the UUID of the plan. Null indicates failure.

void Plan_Launcher_Base_Impl::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)			[protected]

Deployment::DeploymentPlan * Plan_Launcher_Base_Impl::read_cdr_plan_file

(

const char *

deployment_plan_uri

)

[static]

void Plan_Launcher_Base_Impl::stop_plan

(

void

)

[protected, virtual]

Reimplemented in Plan_Launcher_Impl.

void Plan_Launcher_Base_Impl::teardown_plan

(

::Deployment::DomainApplicationManager_ptr

dam

)

[protected]

bool Plan_Launcher_Base_Impl::teardown_plan

(

const char *

uuid

)

[protected]

Tears down a plan given the UUID.

void Plan_Launcher_Base_Impl::usage

(

const ACE_TCHAR *

program = 0

)

[protected]

void Plan_Launcher_Base_Impl::write_cdr_plan_file	(	const char *	filename,
		const Deployment::DeploymentPlan &	plan
	)			[static]

void Plan_Launcher_Base_Impl::write_dam_ior

(

::Deployment::DomainApplicationManager_ptr

dam

)

[protected]

---

Member Data Documentation

ACE_CString Plan_Launcher_Base_Impl::cdr_dest_url_ [protected]

ACE_Vector<ACE_CString> Plan_Launcher_Base_Impl::cdr_plan_urls_ [protected]

ACE_CString Plan_Launcher_Base_Impl::dam_ior_ [protected]

::Deployment::ExecutionManager_var Plan_Launcher_Base_Impl::em_ [protected]

Object reference of the ExecutionManager.

ACE_CString Plan_Launcher_Base_Impl::em_ior_ [protected]

unsigned long Plan_Launcher_Base_Impl::mode_ [protected]

const unsigned long Plan_Launcher_Base_Impl::MODE_START_PLAN = 0x0001 [static, protected]

const unsigned long Plan_Launcher_Base_Impl::MODE_STOP_PLAN = 0x0002 [static, protected]

const unsigned long Plan_Launcher_Base_Impl::MODE_USE_NAMING = 0x0004 [static, protected]

const unsigned long Plan_Launcher_Base_Impl::MODE_WRITE_CDR = 0x0008 [static, protected]

CORBA::ORB_var Plan_Launcher_Base_Impl::orb_ [protected]

Cached ORB pointer.

ACE_CString Plan_Launcher_Base_Impl::plan_uuid_ [protected]

ACE_Vector<ACE_CString> Plan_Launcher_Base_Impl::xml_plan_urls_ [protected]

---

The documentation for this class was generated from the following files:

• Plan_Launcher_Base_Impl.h
• Plan_Launcher_Base_Impl.cpp
