DAnCE::NodeApplication_Impl Class Reference

#include <NodeApplication_Impl.h>

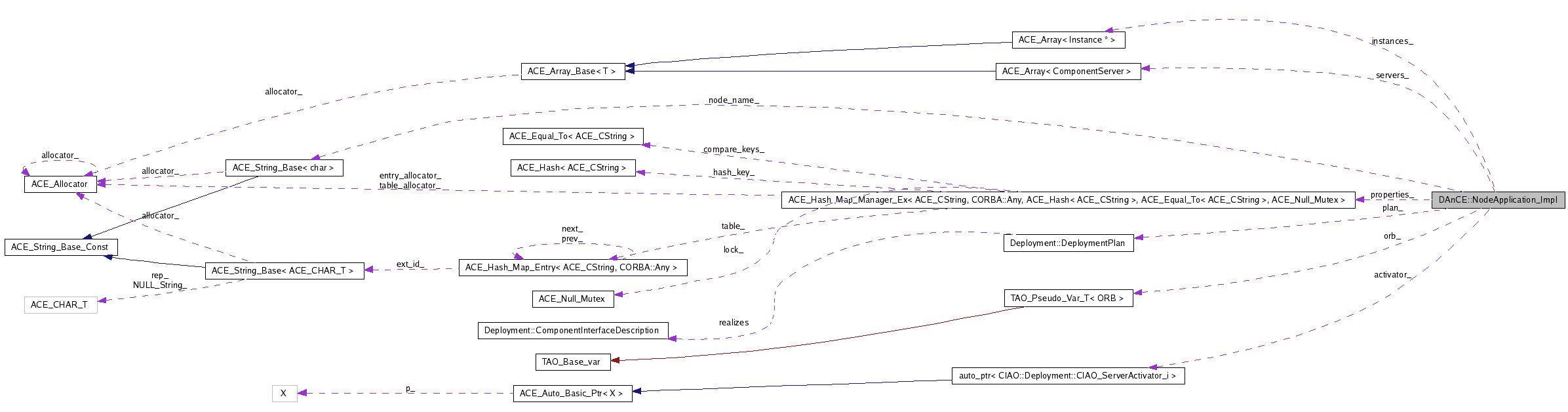

Collaboration diagram for DAnCE::NodeApplication_Impl:

Classes
struct	ComponentServer
struct	Container
struct	Instance
Public Types
enum	ERequestType { eCreateComponentServer, eCreateContainer, eInstallHome, eCreateComponentWithConfigValues }
enum	EInstanceType { eHome, eComponent, eHomedComponent, eInvalid }
enum	EComponentState { eUninstalled, eInstalled, eConfigured, eActive, ePassive, eRemoved, eInvalidState }
Public Member Functions
	NodeApplication_Impl (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, const ::Deployment::DeploymentPlan &plan, const ACE_CString &node_name, const PROPERTY_MAP &properties)
virtual	~NodeApplication_Impl ()
virtual void	finishLaunch (const ::Deployment::Connections &providedReference,::CORBA::Boolean start)
virtual void	start (void)
::Deployment::Connections *	getAllConnections (void)
void	init_components (void)
void	configuration_complete_components (void)
void	passivate_components (void)
void	remove_components (void)
Protected Types
typedef ACE_Array< Instance >	INSTANCES
typedef ACE_Array< Instance * >	INSTANCE_PTRS
typedef ACE_Array< Container >	CONTAINERS
typedef ACE_Array < ComponentServer >	COMPONENTSERVERS
typedef std::map< std::string, int >	ColocationMap
Protected Member Functions
void	init (void)
EInstanceType	get_instance_type (const ::Deployment::Properties &prop) const
ColocationMap	create_colocation_groups (void)
void	create_component_server (size_t index)
void	create_container (size_t server, size_t container)
void	install_home (Container &cont, Instance &inst)
void	install_component (Container &cont, Instance &inst)
void	install_homed_component (Container &cont, Instance &inst)
void	store_instance_ior (Instance &inst)
bool	is_local_facet (const ::Deployment::PlanConnectionDescription &conn)
Components::Cookie *	connect_receptacle (const ::Deployment::PlanConnectionDescription &conn, Components::CCMObject_ptr facet, const ACE_CString &facet_name, CORBA::Object_ptr receptacle, const ACE_CString &receptacle_name, CIAO::Deployment::Container_ptr cont)
Components::Cookie *	connect_receptacle_ext (Components::CCMObject_ptr inst, const ACE_CString &port_name, CORBA::Object_ptr facet)
void	connect_emitter (Components::CCMObject_ptr inst, const ACE_CString &port_name, CORBA::Object_ptr consumer)
void	connect_emitter_ext (Components::CCMObject_ptr inst, const ACE_CString &port_name, CORBA::Object_ptr consumer)
Components::Cookie *	connect_publisher (Components::CCMObject_ptr inst, const ACE_CString &port_name, CORBA::Object_ptr consumer)
Protected Attributes
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
const ::Deployment::DeploymentPlan &	plan_
auto_ptr < CIAO::Deployment::CIAO_ServerActivator_i >	activator_
ACE_CString	node_name_
PROPERTY_MAP	properties_
COMPONENTSERVERS	servers_
INSTANCE_PTRS	instances_
CosNaming::NamingContext_var	instance_nc_

Member Typedef Documentation

typedef std::map<std::string, int> DAnCE::NodeApplication_Impl::ColocationMap [protected]

typedef ACE_Array<ComponentServer> DAnCE::NodeApplication_Impl::COMPONENTSERVERS [protected]

typedef ACE_Array<Container> DAnCE::NodeApplication_Impl::CONTAINERS [protected]

typedef ACE_Array<Instance *> DAnCE::NodeApplication_Impl::INSTANCE_PTRS [protected]

typedef ACE_Array<Instance> DAnCE::NodeApplication_Impl::INSTANCES [protected]

Member Enumeration Documentation

enum DAnCE::NodeApplication_Impl::EComponentState

Enumerator:

eUninstalled
eInstalled
eConfigured
eActive
ePassive
eRemoved
eInvalidState

enum DAnCE::NodeApplication_Impl::EInstanceType

Enumerator:

eHome
eComponent
eHomedComponent
eInvalid

enum DAnCE::NodeApplication_Impl::ERequestType

Enumerator:

eCreateComponentServer
eCreateContainer
eInstallHome
eCreateComponentWithConfigValues

Constructor & Destructor Documentation

NodeApplication_Impl::NodeApplication_Impl	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		const ::Deployment::DeploymentPlan &	plan,
		const ACE_CString &	node_name,
		const PROPERTY_MAP &	properties
	)

NodeApplication_Impl::~NodeApplication_Impl ( ) [virtual]

Member Function Documentation

void NodeApplication_Impl::configuration_complete_components ( void )

void NodeApplication_Impl::connect_emitter	(	Components::CCMObject_ptr	inst,
		const ACE_CString &	port_name,
		CORBA::Object_ptr	consumer
	)			`[protected]`

void NodeApplication_Impl::connect_emitter_ext	(	Components::CCMObject_ptr	inst,
		const ACE_CString &	port_name,
		CORBA::Object_ptr	consumer
	)			`[protected]`

Components::Cookie * NodeApplication_Impl::connect_publisher	(	Components::CCMObject_ptr	inst,
		const ACE_CString &	port_name,
		CORBA::Object_ptr	consumer
	)			`[protected]`

Components::Cookie * NodeApplication_Impl::connect_receptacle	(	const ::Deployment::PlanConnectionDescription &	conn,
		Components::CCMObject_ptr	facet,
		const ACE_CString &	facet_name,
		CORBA::Object_ptr	receptacle,
		const ACE_CString &	receptacle_name,
		CIAO::Deployment::Container_ptr	cont
	)			`[protected]`

Components::Cookie * NodeApplication_Impl::connect_receptacle_ext	(	Components::CCMObject_ptr	inst,
		const ACE_CString &	port_name,
		CORBA::Object_ptr	facet
	)			`[protected]`

NodeApplication_Impl::ColocationMap NodeApplication_Impl::create_colocation_groups ( void ) [protected]

Creates colocation groups for all components in this node's deployment. Resulting map has mappings of component ids to appropriate server. As a postcondition, the size of the servers_ array is increased appropriately.

void NodeApplication_Impl::create_component_server ( size_t index ) [protected]

void NodeApplication_Impl::create_container	(	size_t	server,
		size_t	container
	)			`[protected]`

void NodeApplication_Impl::finishLaunch	(	const ::Deployment::Connections &	providedReference,
		::CORBA::Boolean	start
	)			`[virtual]`

NodeApplication_Impl::EInstanceType NodeApplication_Impl::get_instance_type ( const ::Deployment::Properties & prop ) const [protected]

Deployment::Connections * NodeApplication_Impl::getAllConnections ( void )

void NodeApplication_Impl::init ( void ) [protected]

void NodeApplication_Impl::init_components ( void )

void NodeApplication_Impl::install_component	(	Container &	cont,
		Instance &	inst
	)			`[protected]`

void NodeApplication_Impl::install_home	(	Container &	cont,
		Instance &	inst
	)			`[protected]`

void NodeApplication_Impl::install_homed_component	(	Container &	cont,
		Instance &	inst
	)			`[protected]`

bool NodeApplication_Impl::is_local_facet ( const ::Deployment::PlanConnectionDescription & conn ) [protected]

void NodeApplication_Impl::passivate_components ( void )

void NodeApplication_Impl::remove_components ( void )

void NodeApplication_Impl::start ( void ) [virtual]

void NodeApplication_Impl::store_instance_ior ( Instance & inst ) [protected]

Member Data Documentation

auto_ptr<CIAO::Deployment::CIAO_ServerActivator_i> DAnCE::NodeApplication_Impl::activator_ [protected]

CosNaming::NamingContext_var DAnCE::NodeApplication_Impl::instance_nc_ [protected]

INSTANCE_PTRS DAnCE::NodeApplication_Impl::instances_ [protected]

ACE_CString DAnCE::NodeApplication_Impl::node_name_ [protected]

CORBA::ORB_var DAnCE::NodeApplication_Impl::orb_ [protected]

const ::Deployment::DeploymentPlan& DAnCE::NodeApplication_Impl::plan_ [protected]

PortableServer::POA_var DAnCE::NodeApplication_Impl::poa_ [protected]

PROPERTY_MAP DAnCE::NodeApplication_Impl::properties_ [protected]

COMPONENTSERVERS DAnCE::NodeApplication_Impl::servers_ [protected]

The documentation for this class was generated from the following files:
