ACE_Token_Invariant_Manager Class Reference

Token Invariants. More...

#include <Token_Invariants.h>

Inheritance diagram for ACE_Token_Invariant_Manager:
Inheritance graph
[legend]

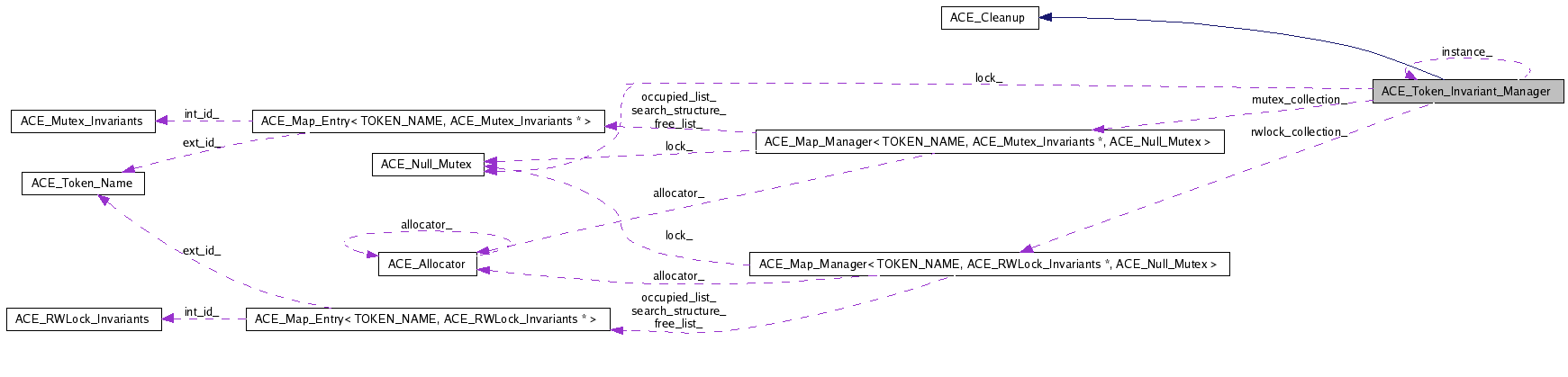

Collaboration diagram for ACE_Token_Invariant_Manager:
Collaboration graph
[legend]

List of all members.

Public Member Functions

int acquired (const ACE_Token_Proxy *proxy)
void releasing (const ACE_Token_Proxy *proxy)
 Updates internal database.
int mutex_acquired (const ACE_TCHAR *token_name)
void mutex_releasing (const ACE_TCHAR *token_name)
 Updates internal database.
int reader_acquired (const ACE_TCHAR *token_name)
int writer_acquired (const ACE_TCHAR *token_name)
void rwlock_releasing (const ACE_TCHAR *token_name)
 Updates internal database.
void dump (void) const
 Dump the state of the class.
 ACE_Token_Invariant_Manager (void)
 Prevent non-singleton construction.
virtual ~ACE_Token_Invariant_Manager (void)
 Destruction.

Static Public Member Functions

static
ACE_Token_Invariant_Manager
instance (void)
 Singleton access point.

Protected Types

typedef ACE_Token_Name TOKEN_NAME
 This may be changed to a template type.
typedef ACE_Map_Manager
< TOKEN_NAME,
ACE_Mutex_Invariants
*, ACE_Null_Mutex
MUTEX_COLLECTION
 COLLECTION maintains a mapping from token names to mutexes.
typedef MUTEX_COLLECTION::ITERATOR MUTEX_COLLECTION_ITERATOR
 Allows iterations through collection.
typedef MUTEX_COLLECTION::ENTRY MUTEX_COLLECTION_ENTRY
 Allows iterations through collection.
typedef ACE_Map_Manager
< TOKEN_NAME,
ACE_RWLock_Invariants
*, ACE_Null_Mutex
RWLOCK_COLLECTION
 COLLECTION maintains a mapping from token names to mutexes.
typedef RWLOCK_COLLECTION::ITERATOR RWLOCK_COLLECTION_ITERATOR
 Allows iterations through collection.
typedef RWLOCK_COLLECTION::ENTRY RWLOCK_COLLECTION_ENTRY
 Allows iterations through collection.

Protected Member Functions

int get_mutex (const ACE_TCHAR *token_name, ACE_Mutex_Invariants *&inv)
 Return or create.
int get_rwlock (const ACE_TCHAR *token_name, ACE_RWLock_Invariants *&inv)
 Return or create.

Protected Attributes

ACE_TOKEN_CONST::MUTEX lock_
 ACE_Mutex_Token used to lock internal data structures.
MUTEX_COLLECTION mutex_collection_
 MUTEX_COLLECTION maintains a mapping from token names to mutexes.
RWLOCK_COLLECTION rwlock_collection_
 MUTEX_COLLECTION maintains a mapping from token names to mutexes.

Static Protected Attributes

static
ACE_Token_Invariant_Manager
instance_ = 0
 Singleton pointer.

Detailed Description

Token Invariants.

The Token Invariant Manager allows applications to test that invariants are always satisfied. Currently, Token_Invariants can test mutexes and readers/writer locks. Does not test recursive acquisition. Note that this class does not ever clean its database. Until destroyed, it's size will forever increase.


Member Typedef Documentation

COLLECTION maintains a mapping from token names to mutexes.

Allows iterations through collection.

Deprecated:
Deprecated typedef. Use MUTEX_COLLECTION::ENTRY trait instead.

Allows iterations through collection.

Deprecated:
Deprecated typedef. Use MUTEX_COLLECTION::ITERATOR trait instead.

COLLECTION maintains a mapping from token names to mutexes.

Allows iterations through collection.

Deprecated:
Deprecated typedef. Use RWLOCK_COLLECTION::ENTRY trait instead.

Allows iterations through collection.

Deprecated:
Deprecated typedef. Use RWLOCK_COLLECTION::ITERATOR trait instead.

This may be changed to a template type.


Constructor & Destructor Documentation

ACE_Token_Invariant_Manager::ACE_Token_Invariant_Manager ( void   )

Prevent non-singleton construction.

ACE_Token_Invariant_Manager::~ACE_Token_Invariant_Manager ( void   )  [virtual]

Destruction.


Member Function Documentation

int ACE_Token_Invariant_Manager::acquired ( const ACE_Token_Proxy proxy  )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::dump ( void   )  const

Dump the state of the class.

int ACE_Token_Invariant_Manager::get_mutex ( const ACE_TCHAR token_name,
ACE_Mutex_Invariants *&  inv
) [protected]

Return or create.

int ACE_Token_Invariant_Manager::get_rwlock ( const ACE_TCHAR token_name,
ACE_RWLock_Invariants *&  inv
) [protected]

Return or create.

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance ( void   )  [static]

Singleton access point.

int ACE_Token_Invariant_Manager::mutex_acquired ( const ACE_TCHAR token_name  )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::mutex_releasing ( const ACE_TCHAR token_name  )

Updates internal database.

int ACE_Token_Invariant_Manager::reader_acquired ( const ACE_TCHAR token_name  )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::releasing ( const ACE_Token_Proxy proxy  )

Updates internal database.

void ACE_Token_Invariant_Manager::rwlock_releasing ( const ACE_TCHAR token_name  )

Updates internal database.

int ACE_Token_Invariant_Manager::writer_acquired ( const ACE_TCHAR token_name  )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.


Member Data Documentation

Singleton pointer.

ACE_Mutex_Token used to lock internal data structures.

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

MUTEX_COLLECTION maintains a mapping from token names to mutexes.


The documentation for this class was generated from the following files:
